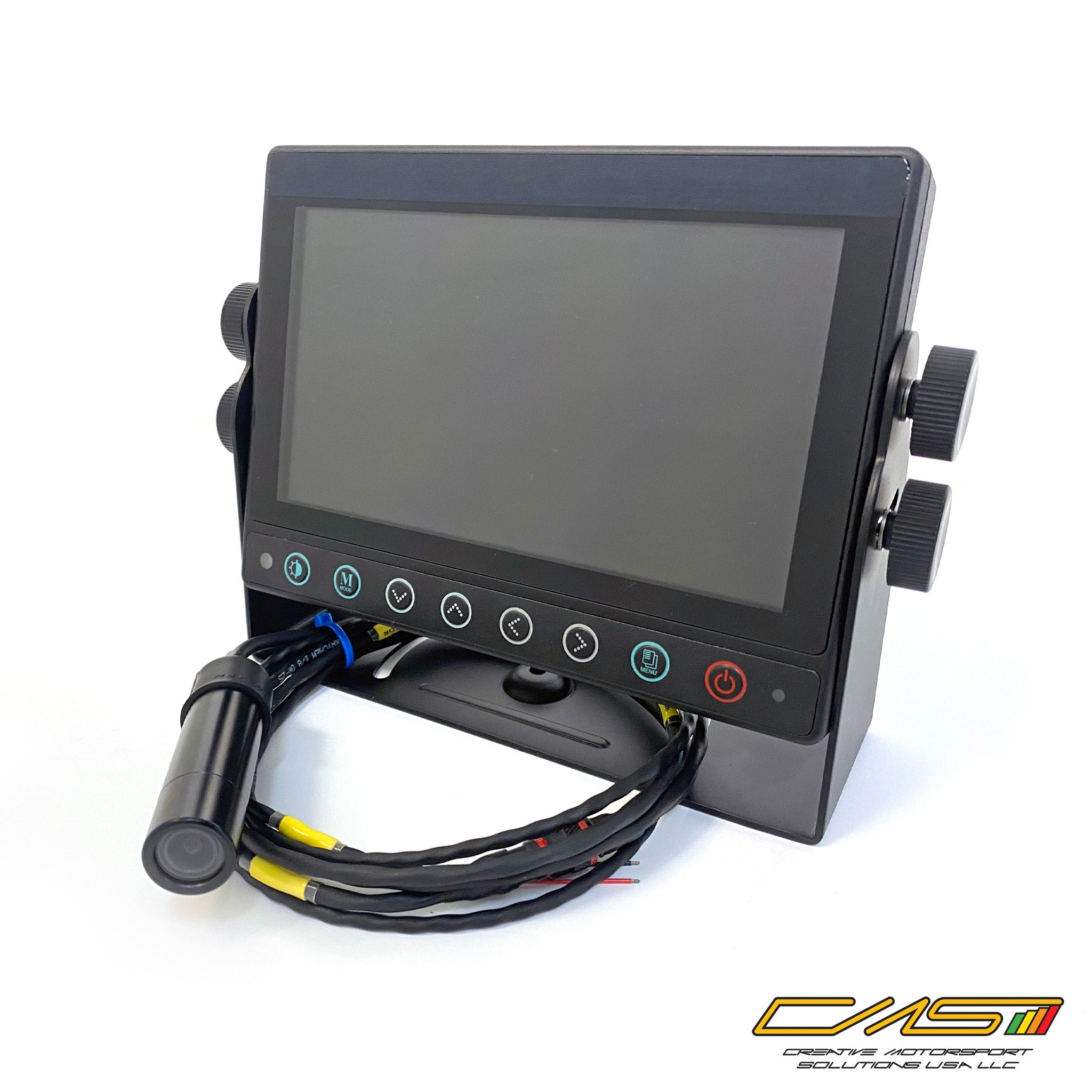

If you're searching for the best solution for a rearview motorsport camera and display system, that is budget minded - search no further. We have custom designed this system to not only meet the harsh demands of the motorsport industry, but surpass them.
The rugged 7" IP67 rated monitor is built to withstand even the most dusty, humid and wet conditions, along with having a 100G shock rating and 15G vibration rating. Its high 800x480 resolution display provides clear and crisp images and offers an auto dimming feature to function at all times of the race.
The high resolution bullet camera is a sealed IP67 rated unit, with an auto-iris, auto-white balance and Sony chipset allowing them to perform under varying sun & light conditions with true day and night modes. Additionally, we then add a high definition 120 degree lens to the camera so that you get maximum visibility from the rear of the car.
This is motorsport rear view camera system is perfect for both the amateur and professional.
The system includes:
1x - Monitor
1x - Monitor Mounting Bracket
1x - Monitor Hood
1x - Camera
1x - Milspec wiring harness

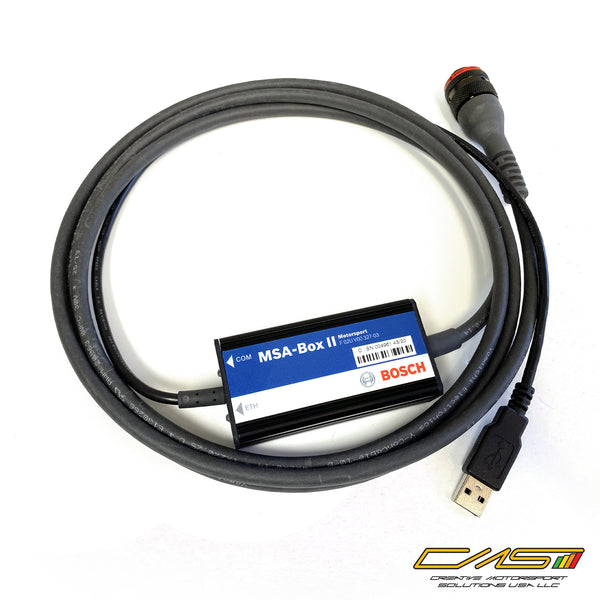

The MSA-Box II (also known as the MSA 2 Diagnostic Cable, or more commonly at the track "that damn ABS cable!") from Bosch Motorsport, is the budget minded communication interface designed for PC-supported calibration and configuration on Ethernet, K-Line or CAN interface of an ECU. Coupled to the end user's PC via a USB interface, this provides a both powerful and universal link to all common PC systems. This allows communication and calibration for Bosch products such as the Bosch ABS M5 kit as well as other products like PDM's, Dash boards and ECU's.
Please Contact Us for further information.
Bosch Motorsport Part Number: F02U V00 327-03
MSA2 MSAII MSA II
Title | Type |
🗎 Datasheet | |
🗎 Installation Guide | |
🗎 Release Notes |
Title | Type |
🗎 MSA-Box Driver LX V2.03 (read Manual before bootloader update) | ZIP |
The CAS-M 3 EVO system provides real time visualization and warns the driver about approaching or overtaking cars via intuitive marking of the cars on the display. It helps prevent the most common collisions and allows drivers to focus on the race. With a momentary glance, the driver can tell how many cars are following and their classification depending on distance and relative speed. The radar tracks up to 40 objects and marks up to four objects on the display. In addition, bright flashing LEDs alert the driver when any car attempts a passing maneuver. All of these features work at night or in the rain when visibility is typically poor. Furthermore, the real time gap of a marked object is measured and can be provided over CAN or Ethernet.
The CAS-M 3 EVO system is fully integrated in the Bosch Motorsport Tool environment and can be configured with RaceCon.
Please Contact Us for further information.
Title | Type |
🗎 Datasheet | |
🗎 3D Data | ZIP |

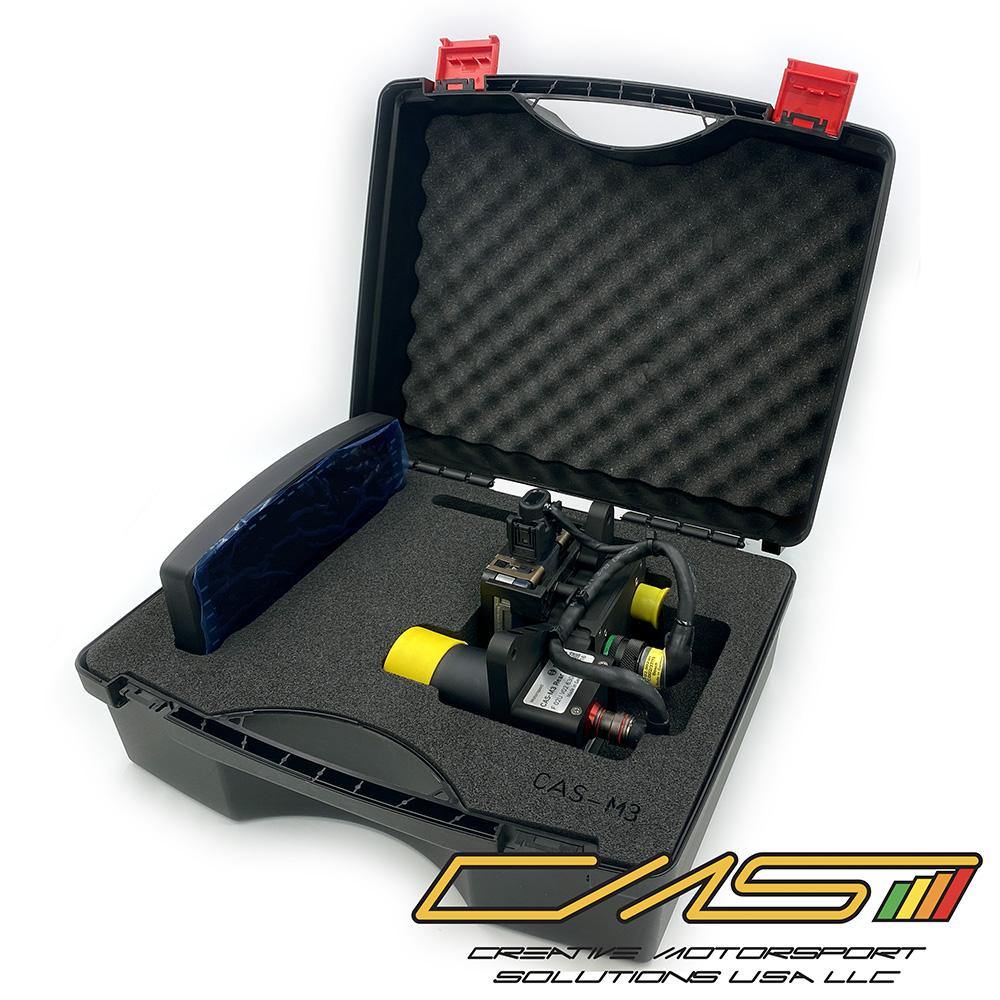

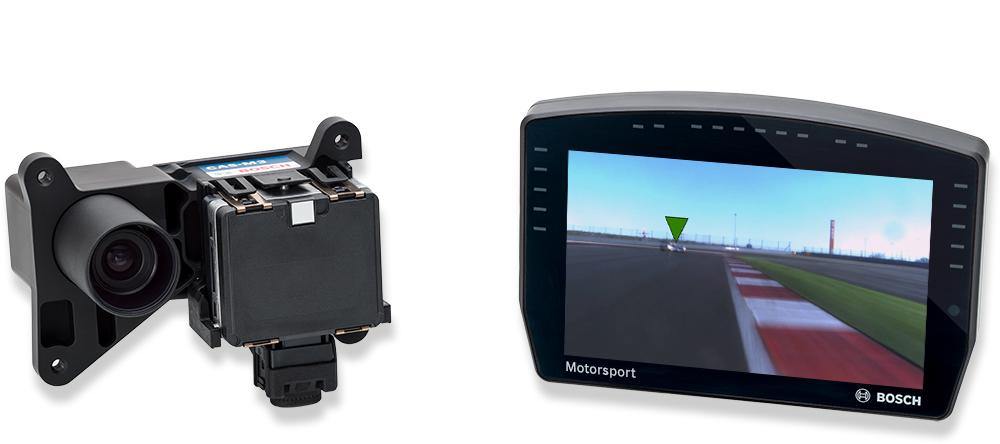

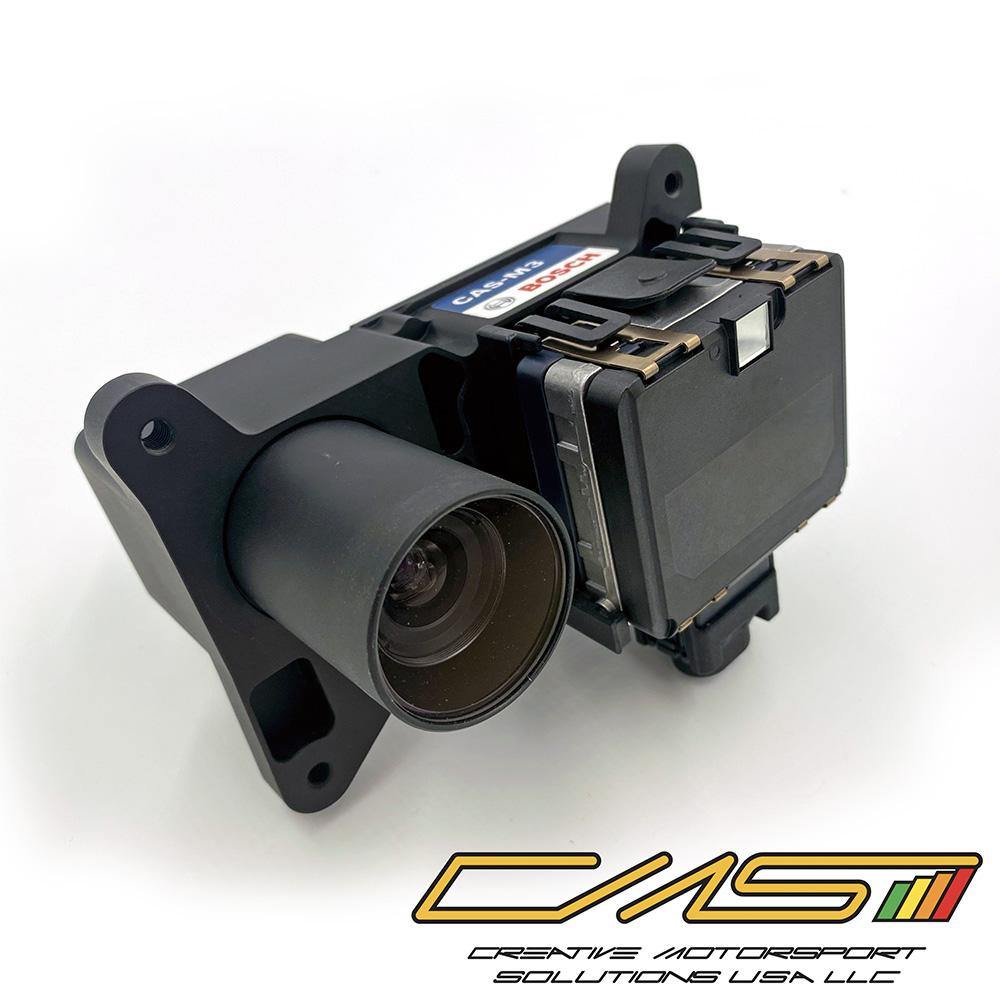

The Collision Avoidance System-Motorsport 3 EVO (CAS-M 3 EVO) features a high-performance Bosch Motorsport Display Unit for fast video processing (right in the picture), and a Rear Module, composed from a Bosch mid-range radar sensor for a wider field of view in close-up range and a fast response high definition camera (left in the picture).
The CAS-M 3 EVO system provides real time visualization and warns the driver about approaching or overtaking cars via intuitive marking of the cars on the display. It helps prevent the most common collisions and allows drivers to focus on the race. With a momentary glance, the driver can tell how many cars are following and their classification depending on distance and relative speed. The radar tracks up to 40 objects and marks up to four objects on the display. In addition, bright flashing LEDs alert the driver when any car attempts a passing maneuver. All of these features work at night or in the rain when visibility is typically poor. Furthermore, the real time gap of a marked object is measured and can be provided over CAN or Ethernet.
The CAS-M 3 EVO system is fully integrated in the Bosch Motorsport Tool environment and can be configured with RaceCon.
Please Contact Us for further information.

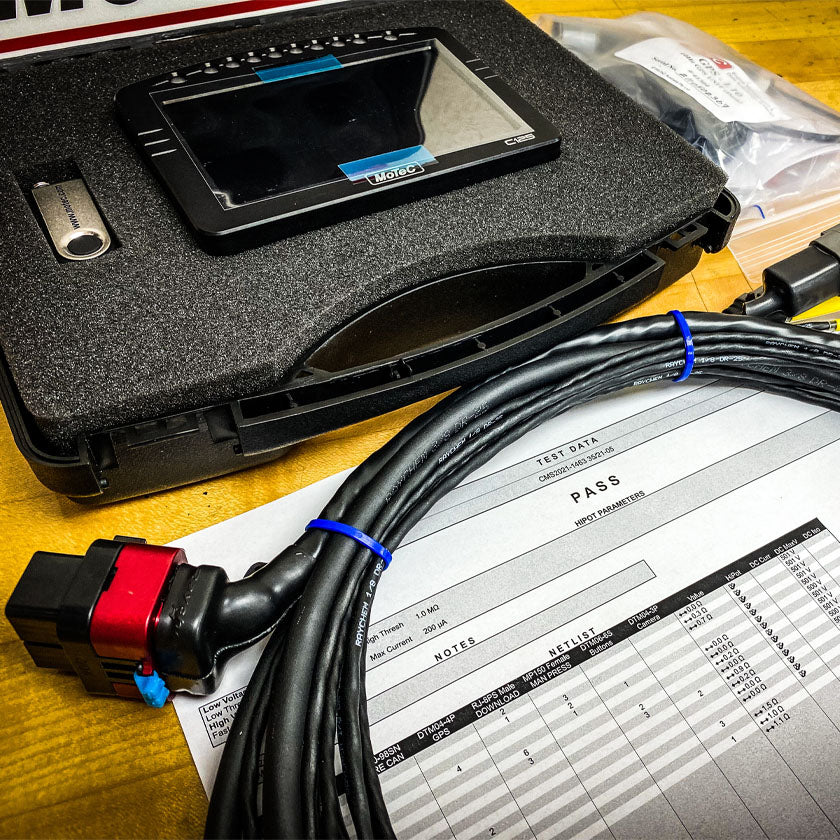

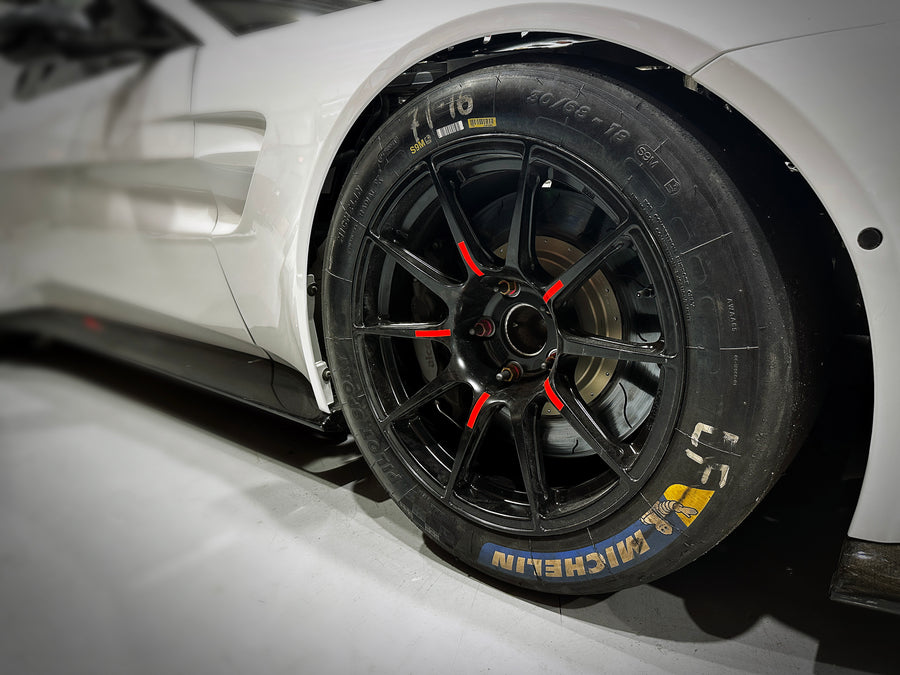

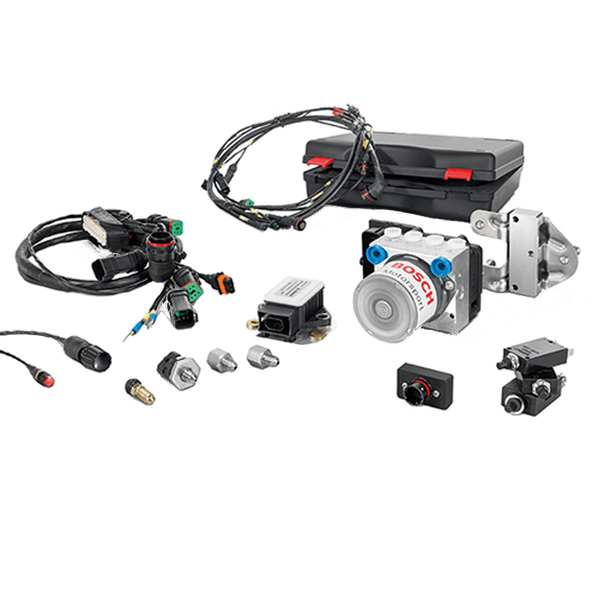

Need help picking which Lambda Sensor is correct for your car? Can't decide on the best ABS M5 kit from Bosch? Want to know what the best antenna solution is for your TPMS kit from Tire Watch? Do you need a custom harness designed and don't know where to start? Reach out to us and we will gladly get you taken care of!
