Buyer's Guide

VBOX HD1 vs HD2, Action Cameras and AI Coaching: Which Should You Buy?

An honest look at where the new VBOX Video HD1 fits: against VBOX Video HD2, against action cameras and phone apps, and against AI coaching systems, so you can match the right video and data setup to your car.

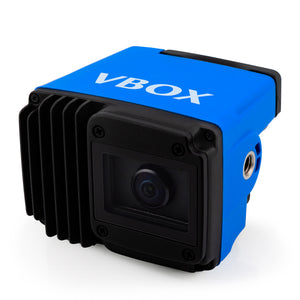

VBOX Video HD1 video data logger
New from VBOX Motorsport

VBOX Video HD1

From $2,195.00. Now taking pre-orders on all three packages.

Shop VBOX Video HD1

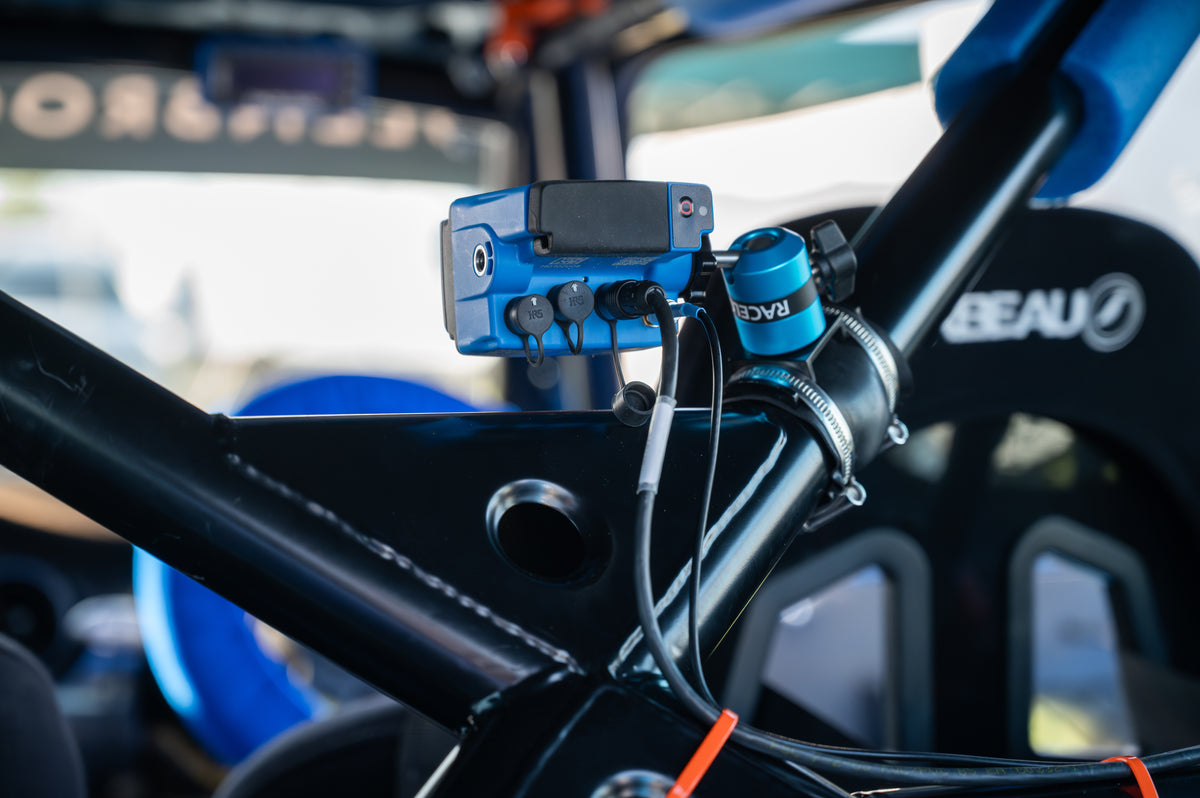

VBOX Video HD1 in use at Cadwell Park

There are more ways than ever to put a camera in a race car. You can bolt on an action camera, run a phone app off the dash, fit an AI coaching device that scores your driving, or step up to a purpose-built motorsport video data logger. Each one does a different job, and the right choice comes down to what you actually need from a session, not whose spec sheet looks biggest.

This guide covers two comparisons. First, VBOX Video HD1 against its sibling, VBOX Video HD2, since VBOX Motorsport now sells both. Second, an unofficial look at how a purpose-built logger like HD1 differs from the action cameras, phone apps and AI coaching tools racers often reach for instead.

Just want the full specification, package options and accessory list? It's all on the VBOX Video HD1 product page.

What's Actually Being Recorded

The difference between a data logger and a camera comes down to what's captured alongside the footage. It's the single most useful thing to understand before comparing any of the options below.

Action Camera / Phone App
1080p video
GPS where fitted, typically around 1 Hz
No CAN bus data
Output: a video file
VBOX Video HD1
1080p H.265 video with live data overlay
25 Hz GNSS: position, speed, g-force
2 isolated CAN buses, CAN 2.0 & CAN FD
Output: video, GNSS and CAN on one synced timeline

In Plain Terms: An action camera or phone app records what happened. A synchronized video data logger like HD1 records why it happened, because the speed trace, CAN channels and video share one timeline you can pull apart lap by lap in Circuit Tools 3.

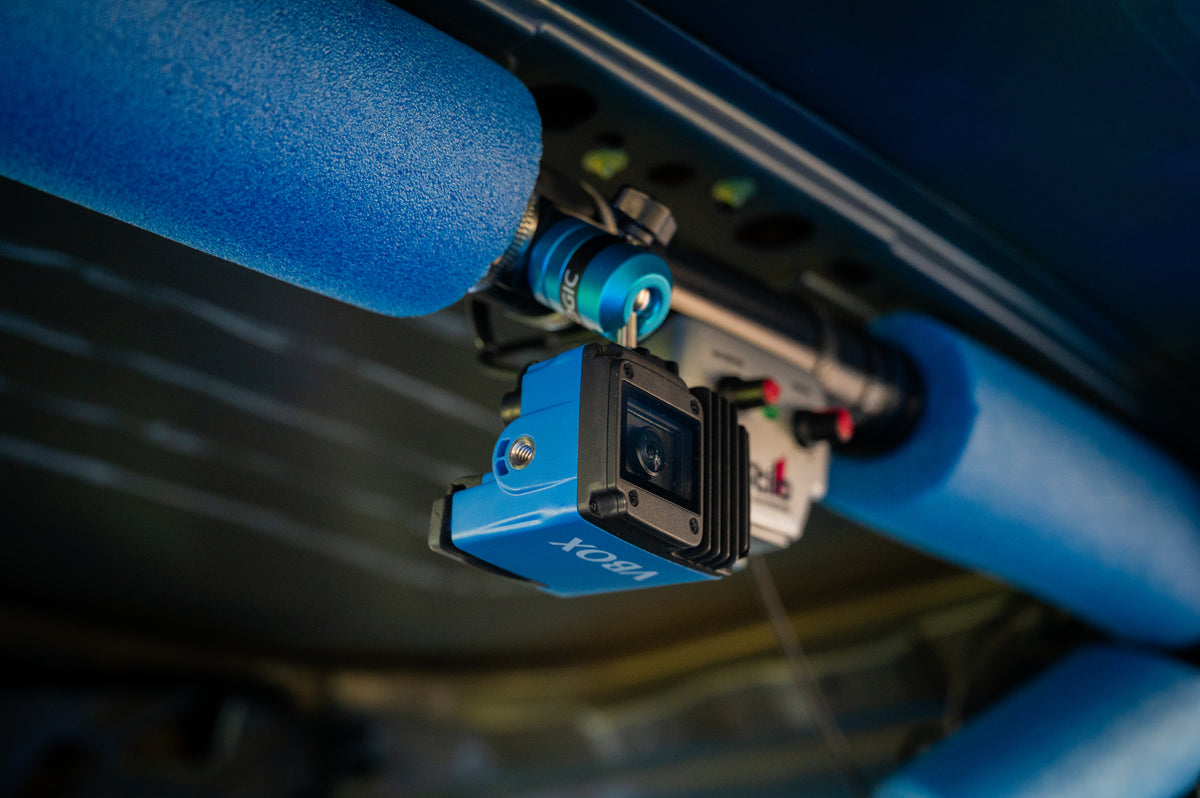

VBOX Video HD1 camera and data logger at the track

VBOX Video HD1 vs VBOX Video HD2

HD1 and HD2 aren't rivals. They're two formats of the same VBOX system, sharing GNSS accuracy, CAN capability and analysis software. The differences that matter are camera count, physical footprint and price.

SpecVBOX Video HD1VBOX Video HD2
Cameras1, integrated1 or 2, with picture-in-picture
Weight / size5.9 oz (167 g), 2.80 x 2.56 x 2.05 inSeparate logger plus camera(s)
GNSS logging25 Hz multi-constellation25 Hz
CAN logging2 isolated buses, CAN 2.0 & CAN FD2 buses
HDMI outputYes, up to 1920 x 1080 with overlayYes
SetupVBOX Video app over Wi-FiVBOX Video app
Analysis softwareCircuit Tools 3, freeCircuit Tools 3, free

Remember This: Choosing HD1 over HD2 doesn't mean settling for less data. GNSS accuracy, CAN logging and Circuit Tools 3 are shared. What you give up is the option of a second camera view.

Who Should Buy HD1

  • Drivers who only need one camera angle, typically a forward view through the windshield or over the roll bar
  • Cars, karts or bikes where space and weight rule out a separate logger and camera
  • Anyone getting into VBOX for the first time where budget is the main gate
  • HD2 owners who want a second unit for a second car, a teammate or a driver coach

Who Should Buy HD2

  • Series or scrutineers that require dual-camera coverage
  • Drivers who want a forward view and a driver-facing view recorded at the same time, for coaching or incident review
  • Teams that already standardize on VBOX Video HD2 hardware and brackets across the fleet

VBOX Video HD1 vs Action Cameras and Phone Apps

This comparison is unofficial. Action cameras and lap-timing apps aren't products VBOX markets against, but they're what a lot of track day and club drivers reach for first, usually because the camera or phone is already in the glovebox. Here's how the categories differ.

Built for Content, Not Circuits

Action cameras are brilliant at what they're designed for: handheld and helmet footage for content. On track that means no CAN input, a consumer temperature rating, and GPS, where fitted, typically logging around once a second, versus 25 times a second on HD1. A phone app shares the same limits because it uses the phone's own GPS and camera.

Already Running a Motorsport Dash?

Several motorsport brands, AiM among them, make excellent combined camera and data units. If you already run an AiM dash, HD1 is designed to sit alongside it: the RLCAB145H cable plugs into any free five-pin CAN socket, adding VBOX video and GNSS without touching your existing setup.

Where the Category Gap Shows Up

CapabilityVBOX Video HD1Action Camera / Phone App
GPS update rate25 Hz, a position roughly every 3.5 ft at 60 mphTypically around 1 Hz, where fitted
CAN bus data2 isolated buses, CAN 2.0 & CAN FDNot supported
Start/stopAutomatic, speed-triggered, up to 30 s pre-bufferManual button press
PowerVehicle-powered, 6 to 18 V DCInternal battery
Operating temperature-4°F to 140°F (-20°C to +60°C)Consumer electronics range
Data in the videoSpeed, g-force, lap times, track map and CAN channelsVideo and audio
Lap analysisCircuit Tools 3, free, sector by sectorVaries by app

Important Distinction: None of this makes an action camera a bad product. It's a different product built for a different job. The gap only appears when it's asked to do a data logger's work: syncing CAN data, running unattended in a hot cabin, and starting itself the moment the car moves.

CMS note: when club drivers move from an action camera to a VBOX, the change they mention first usually isn't picture quality. It's never having to remember to hit record again.

Illustrative Example: The Missed Session

Illustrative scenario, not a specific customer or recorded event

Picture a track day regular who forgets to press record before their best session of the day, and only finds out in the paddock when the footage isn't there. With HD1's speed-triggered recording and up to 30 seconds of pre-buffer, that can't happen: the unit is already recording by the time the car rolls out of the pit lane.

VBOX Video HD1 vs AI Coaching Systems

A newer category of dash-mounted device coaches you in real time, comparing each lap to a stored reference and nudging you to repeat it. It's a genuinely useful tool for building consistency. HD1 works on a related but different problem.

What AI Coaching Does Well

Real-time feedback that helps you repeat your own best lap, which is valuable for consistency, especially for newer drivers still learning to hit the same marks every lap.

What HD1 + Circuit Tools 3 Does Well

Shows where time is actually available using real braking points, apex speeds and throttle traces next to the video. The new Insights view steps through every corner, scores braking and turn-in grip against a target you set, and flags things like trail braking.

“Coaching helps you repeat your best lap. Data shows you where the next one is hiding.”

See HD1 on Track

In-car HD1 footage with the live data overlay generated as it records, followed by VBOX Motorsport's official showreel and installation video.

VBOX Video HD1 showreel

VBOX Video HD1 installation

The Three HD1 Packages

Every HD1 package includes everything needed to start recording. The two display packages add live predictive lap timing in the car.

Package HD1 OnlyRLVBHD1U HD1 + OLEDRLVBHD1U/D HD1 + Mini OLEDRLVBHD1U/DM
HD1, power & CAN cable, GNSS antenna, 32 GB SD card, roll cage mount✓✓✓
Circuit Tools 3 analysis software✓✓✓
Full-size OLED display: predictive lap timing, ahead/behind delta, sector comparison–✓–
Mini OLED display: the same lap information in a smaller housing––✓

Which One Should You Buy?

Space or weight was the issue

HD1 keeps the 25 Hz GNSS and dual-bus CAN logging in one 5.9 oz body that fits where a separate logger and camera won't. Same data, smaller package.

Price was the issue

If one camera view is all you need, VBOX Video HD1 gets you VBOX-grade GNSS, CAN logging and Circuit Tools 3 for meaningfully less than a dual-camera setup. Same data, lower price.

You already own an HD2

A second car, a teammate, a temporary setup or a driver coach are all natural HD1 jobs. The app and software are the same, so there's nothing new to learn.

You run an AiM, MoTeC or other dash

HD1 plugs into an AiM five-pin CAN socket with the RLCAB145H cable, and wires to other CAN systems with the supplied unterminated cable. It adds video and records the data without replacing your dash.

You currently use an action camera

Your camera shows what happened. HD1 shows why, with CAN data and 25 Hz GNSS synced to the footage, and recording that starts itself as you leave the pits.

You want to share the feed live

HD1's HDMI output sends video with the overlay included to a streaming device or pit wall monitor, for event coverage, live coaching or social media.

VBOX Video HD1 at Cadwell Park

Building Out Your HD1 Setup

HD1 works straight out of the box, but a few accessories solve specific problems worth knowing about before you order.

Want live timing at the wheel, not just after the session?

Choose a display package, or add the OLED Display or Mini OLED Display later for real-time predictive lap timing.

Running a display and CAN data together?

The CAN Splitter Cable (RLCAB081H) lets HD1 log vehicle CAN or a Racelogic module while driving an OLED display at the same time.

Is CAN available at your OBDII port?

The OBD CAN Interface Cable (RLCAB160, 2 m) is the quickest connection. Check the VBOX Vehicle CAN Database for your car first.

No hard-wired power point?

The In-Car Power Supply Cable (RLCAB165, 3 m) runs HD1 from a 12 V auxiliary socket. The Battery Pack gives about 5 hours away from vehicle power.

Racing where scrutineers check secondary mounting?

The Tether Point secures HD1 at a second point, increasingly a requirement rather than a nice-to-have.

Already own GoPro mounting hardware?

The GoPro Mount Adapter lets HD1 use the mounts you already have.

Part numbers, cable lengths and the full accessory range are listed on the VBOX Video HD1 product page.

Quick Reference: VBOX Video HD1

✓ VBOX Video HD1, 5.9 oz (167 g), 2.80 x 2.56 x 2.05 in

✓ 25 Hz multi-constellation GNSS

✓ 2 isolated CAN buses, CAN 2.0 & CAN FD

✓ H.265 1080p video, 3 fields of view (66°, 92°, 132°)

✓ HDMI output, up to 1920 x 1080 with overlay

✓ Speed-triggered recording, up to 30 s pre-buffer

✓ Power & CAN cable, GNSS antenna, 32 GB SD card, roll cage mount

✓ Circuit Tools 3 for Windows, macOS and iOS, free

Frequently Asked Questions

Is HD1 a cut-down version of HD2?

No. GNSS accuracy, CAN logging and Circuit Tools 3 are shared. HD1 packs the camera, GNSS and recorder into one smaller housing with a single camera view.

Can I run HD1 alongside an AI coaching device or action camera I already own?

Yes. HD1 doesn't need to replace anything in the car. Plenty of drivers run it next to an existing camera or coaching device and compare the data afterward in Circuit Tools.

Which HD1 package should I order?

If you mainly want video and after-session analysis, HD1 Only (RLVBHD1U) is enough. If you want live predictive lap timing while you drive, pick HD1 + OLED (RLVBHD1U/D), or HD1 + Mini OLED (RLVBHD1U/DM) for a tighter cockpit.

I'm just starting out. Should I buy HD1 or HD2 first?

For most first-time buyers, HD1 is the easier way in: the same core data as HD2 at a lower price and in a smaller package. Move to HD2 later if a second camera angle becomes something you need.

Can I order HD1 now?

Yes. We're taking pre-orders on all three HD1 packages on the VBOX Video HD1 product page. Call or email us for current shipping timing.
