Synchronized HD video, GPS, and CAN data in one system that shows you exactly why one lap was quicker than the next.
Fast drivers don't improve by looking at lap times alone. They improve by understanding why one lap was quicker than the next. The VBOX Video HD2 Track Package from Racelogic combines synchronized HD video, high accuracy GPS positioning, and vehicle CAN data into one powerful analysis platform, giving drivers and engineers a complete picture of every session.
The HD2 records synchronized video and data at the same time, so there's no need to manually align separate cameras and data loggers after each session. Every lap is automatically captured with precision GPS positioning, letting you compare driving performance corner by corner and find real opportunities to improve. Whether you're coaching a new driver or analyzing data with an engineer, the HD2 turns every session into information you can use, not just another onboard video.
119° wide-angle field of view with picture-in-picture, so you see the track and the driver in one frame.
Fully customizable gauges, track maps, and text overlays built from GPS or CAN data.
Log up to 80 channels, including throttle position, RPM, and brake pressure, from any CAN-output ECU or dash.
±0.06 mph (±0.1 km/h) velocity, ±9.8 ft (±3 m) position accuracy, with automatic track recognition.
Real-time delta vs. your fastest lap, calculated from GPS position instead of distance.
Output real-time video and audio to any HDMI monitor, recorder, or streaming device.
Want the full walkthrough of what this system does and why? Read the VBOX HD2 Buyer's Guide.
The HD2 logs up to 80 channels of vehicle CAN data, including RPM, throttle, brake pressure, and steering angle, from any CAN-output ECU or dash, including AiM and MoTeC. See the full channel list and overlay examples in the Buyer's Guide.
The HD2's CAN interface cable ships unterminated, and most VBOX dealers leave you to source and crimp the connector yourself. We can terminate it with the correct mating connector for your specific car, ECU, or dash before it ships.
| Platform | Compatibility |
|---|---|
| AiM | Records CAN data directly from AiM dashboards and loggers. |
| MoTeC | Synchronizes HD2 video with MoTeC-logged data for combined review in Circuit Tools or MoTeC i2. |
| Any CAN-output ECU/Dash | Logs up to 80 channels of standard CAN data from any system that outputs CAN, not limited to AiM or MoTeC. |
Two different problems, two dedicated devices. See the full comparison in the Buyer's Guide.

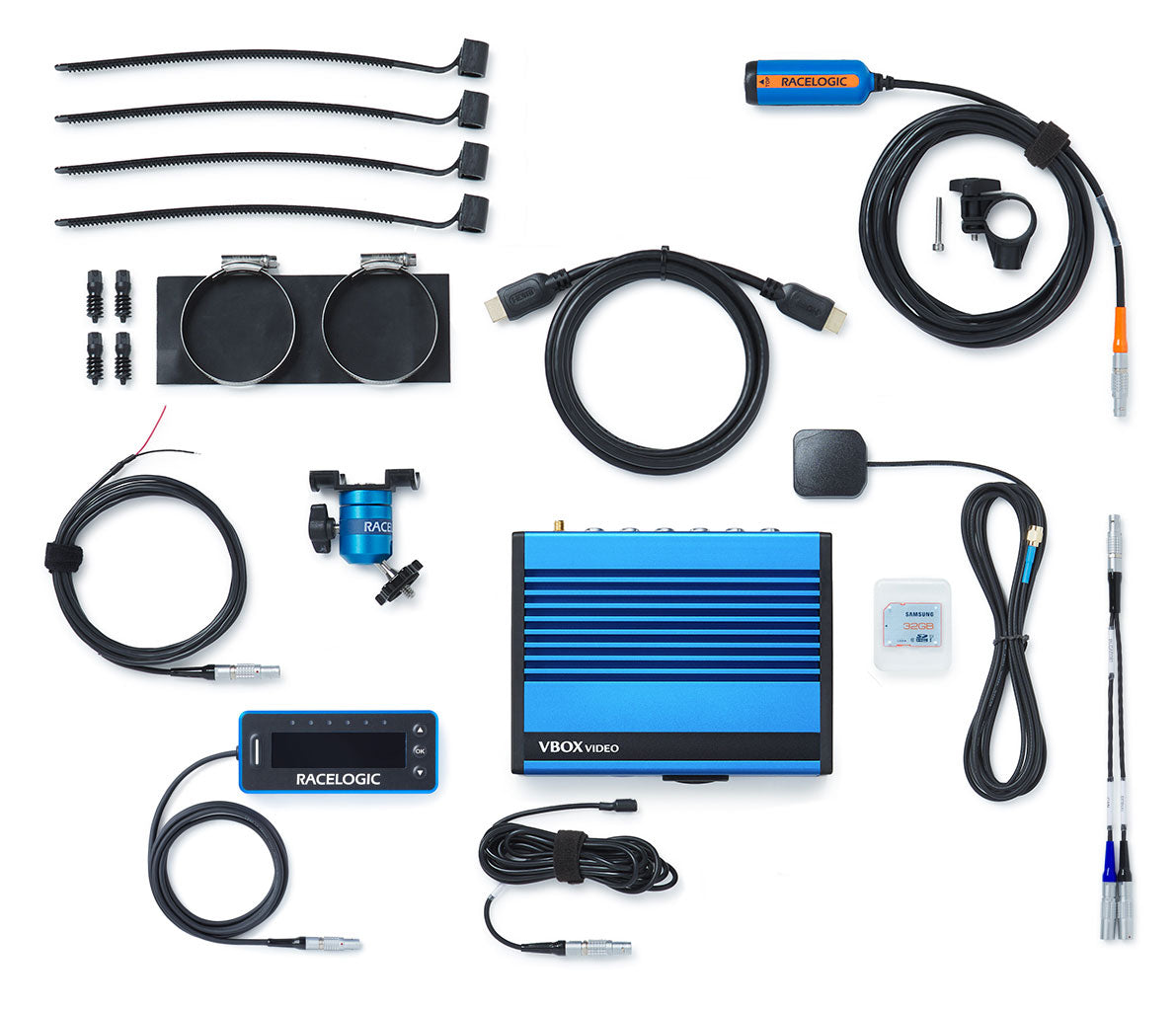

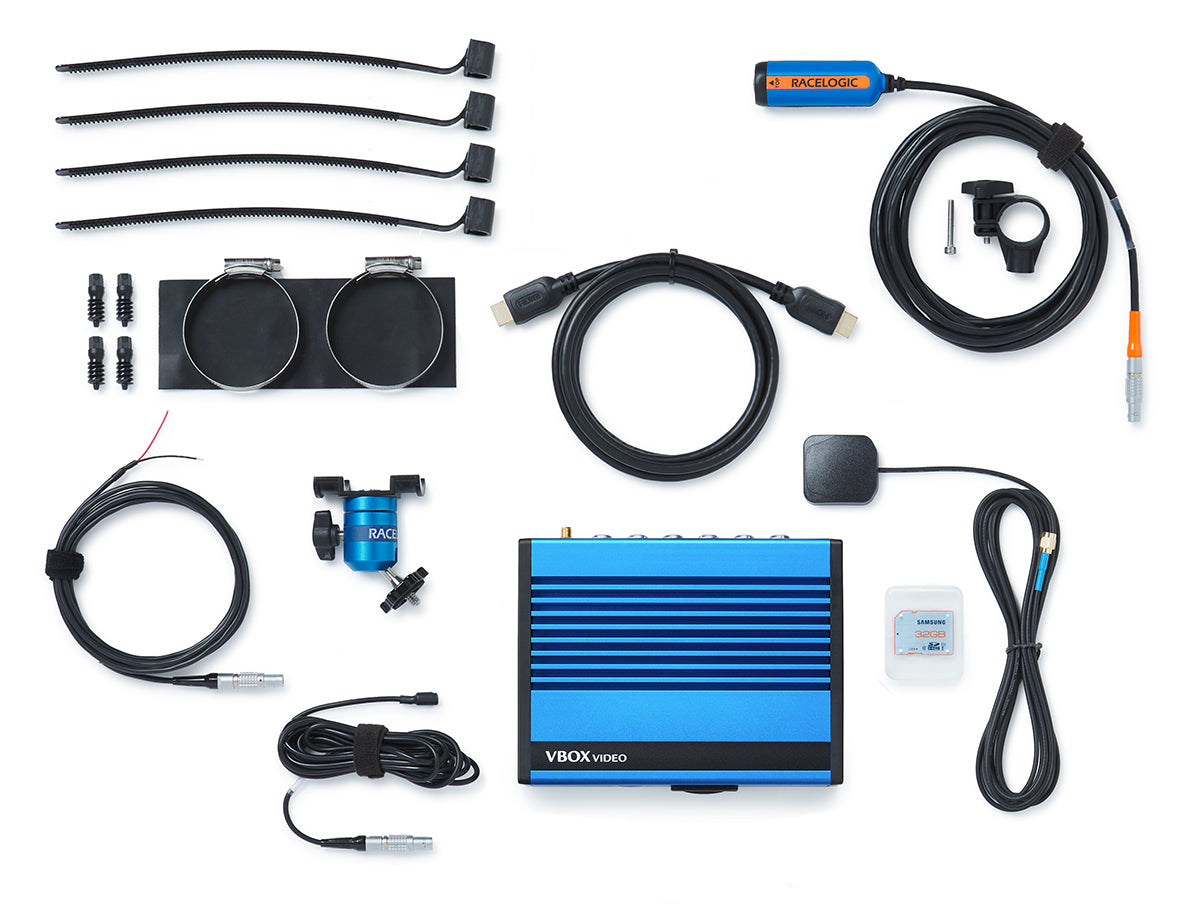

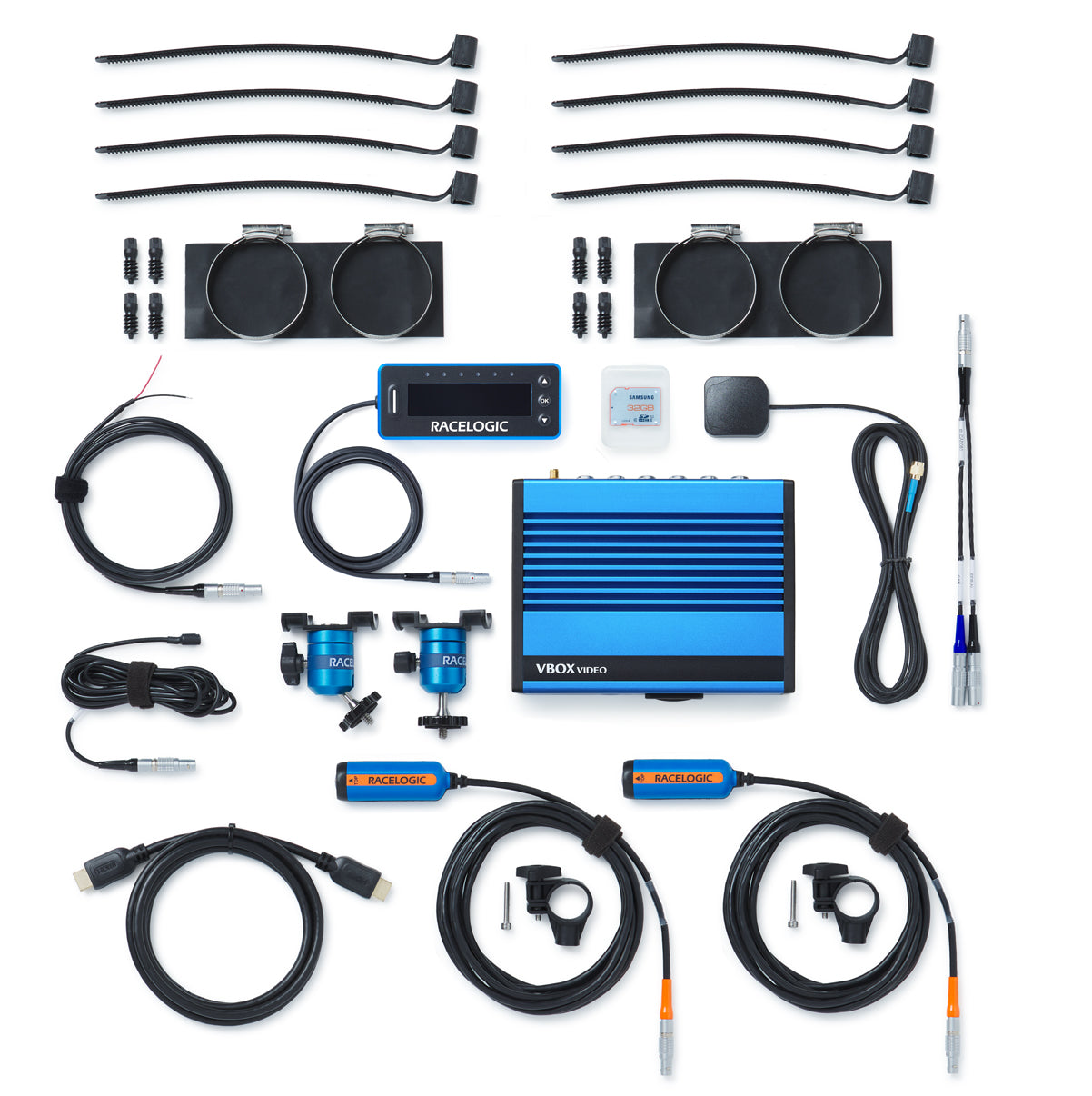

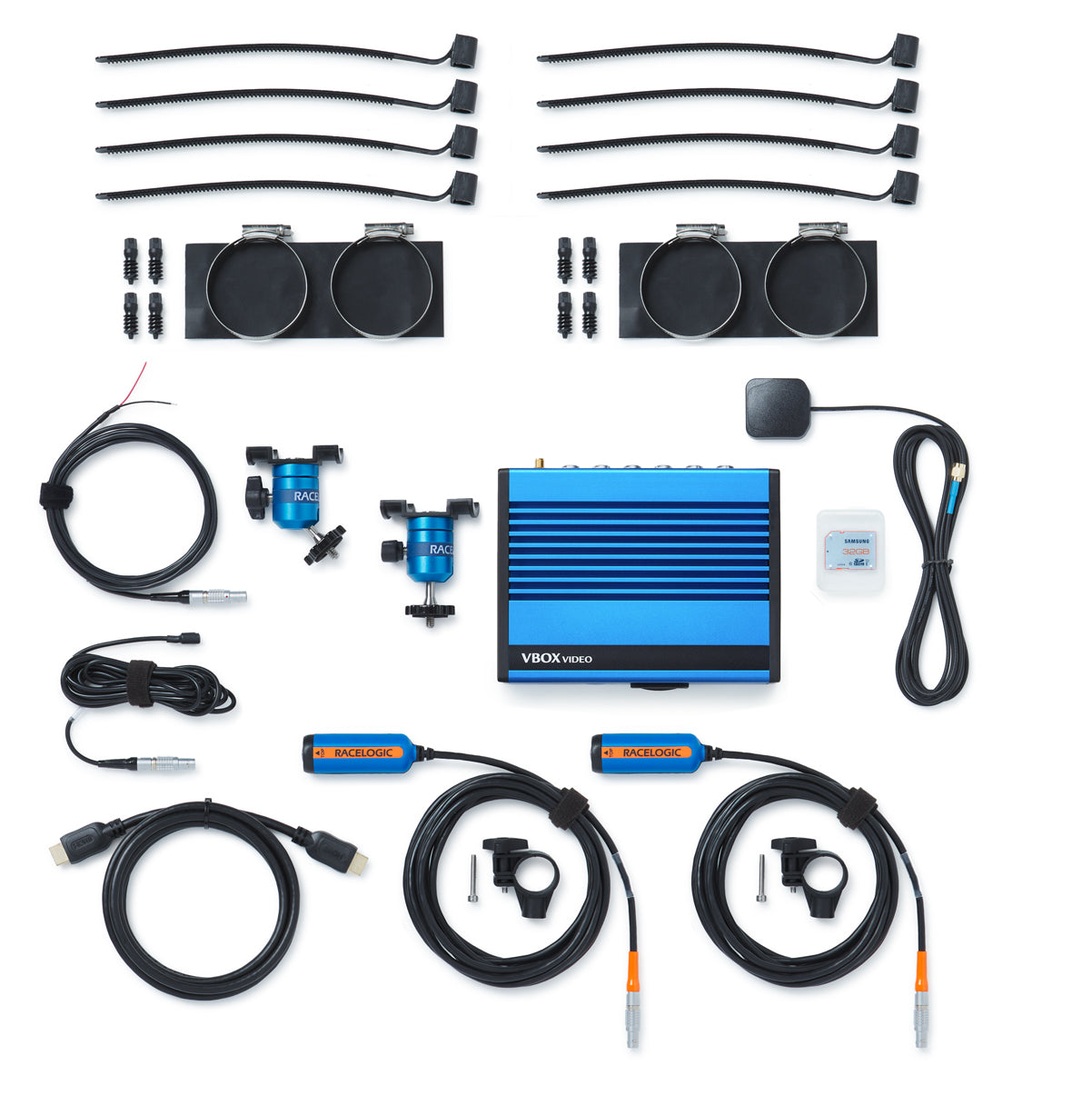

| Included Item | 1 Camera No OLED |
1 Camera With OLED |
2 Camera No OLED |
2 Camera With OLED |
|---|---|---|---|---|
| HD2 Data Logger | ✓ | ✓ | ✓ | ✓ |
| Cameras | 1 | 1 | 2 | 2 |
| OLED Predictive Lap Timing Display | — | ✓ | — | ✓ |
| CAN Splitter Cable | — | ✓ | — | ✓ |
| Microphone | ✓ | ✓ | ✓ | ✓ |
| Roll Cage Camera Mounts | 1 | 1 | 2 | 2 |
| Un-terminated In-Car Power Cable | ✓ | ✓ | ✓ | ✓ |
| GNSS Antenna | ✓ | ✓ | ✓ | ✓ |
| 32 GB SD Card | ✓ | ✓ | ✓ | ✓ |
| HDMI Cable | ✓ | ✓ | ✓ | ✓ |
This Track Package includes roll cage camera mounts and an un-terminated power cable (instead of suction mounts and a cigar lighter power supply) for easier fitment in fully race-prepared vehicles.
| GNSS Update Rate | 25 Hz |
| Velocity Accuracy | ±0.06 mph (±0.1 km/h), averaged over 4 samples |
| Position Accuracy | ±9.8 ft (±3 m), 95% CEP |
| Maximum Velocity | 994 mph (1600 km/h) |
| Lap Timing Resolution | 0.01 s |
| CAN Channels | Up to 80 |
| Video Resolution / Frame Rate | 1920 x 1080 at 30 fps |
| Camera Field of View | 119° horizontal / 68° vertical / 135° diagonal |
| Input Voltage | 8–30 V DC |
| Power Consumption | 25 W max |
| Operating Temperature (Recorder) | 32°F to 149°F (0°C to 65°C); Harsh Environment Fan Accessory recommended above 122°F (50°C) |
| Operating Temperature (Camera) | 14°F to 140°F (-10°C to +60°C) |
| Storage Temperature | -4°F to 185°F (-20°C to +85°C) |
| IP Rating | IP50 (recorder), IP65 (camera) |
| Dimensions (Recorder) | 7.0 x 5.6 x 1.4 in (178 x 143 x 35.5 mm) |
| Weight | ~1.9 lb (~870 g) |
We stock VBOX inventory in the United States for fast delivery, and our team has hands-on experience with these systems in endurance racing, road racing, time attack, and HPDE events. You're working with specialists who use this hardware, not just another online reseller.
Talk to our team about the right HD2 configuration for your program, or contact us for questions on installation, CAN integration, or custom cable termination.
