IMU Sensor MM7.10

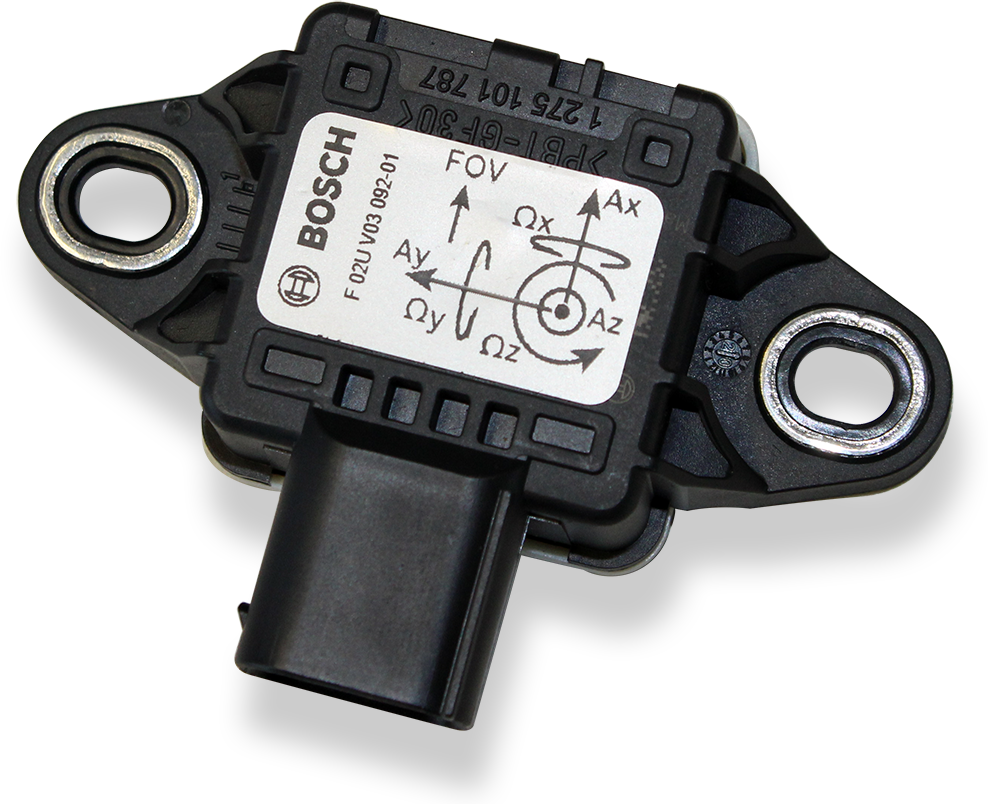

  • The MM7.10 was designed to measure the physical effects of rotational and linear acceleration. In order to achieve this, the sensor includes MEMS measuring elements connected to an appropriate integrated circuit. A rotational acceleration around the integrated sensing elements generates a Coriolis force, which changes the internal capacity of the micro machined sensing parts. Furthermore, a pure surface micro machined element is used to measure the vehicle linear acceleration in all 3 axis. This combination of rotational and linear acceleration sensors enables a precise measurement of the vehicle dynamics. The main feature and benefit of this sensor is the combination of 3 linear and 3 rotational accelerometers and its high speed 1 Mbaud CAN-signal output.

    Please note: If you're ordering the Motorsport Connector or Flying lead version please provide lead length (15-95cm) in the order notes section at time of order.

    For the non-terminated version, the mating connector kit can be found here:
    MM5.10 Connector Kit

    Please Contact Us for further information.

    • 2-axis rotation rate (yaw rate, roll rate)

    • 3-axis accelerometer (X, Y, Z)

    • 1 MBaud or 500 kBaud CAN-output

    • 15 Hz low-pass filtered

    • Measurement ranges: ±4.2 g; ±163°/s
