Bosch Motorsport

F02U.V01.512-03

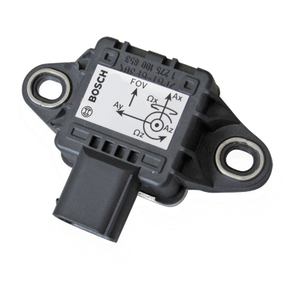

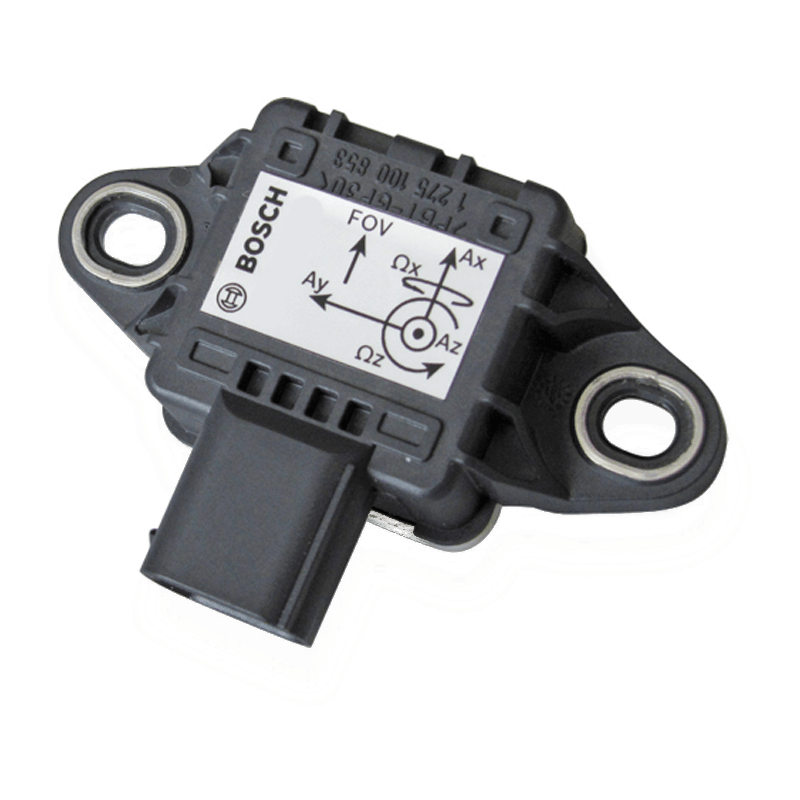

IMU Sensor MM5.10

  • • 2-axis rotation rate (yaw rate, roll rate)

    • 3-axis accelerometer (X, Y, Z)

    • 1 MBaud or 500 kBaud CAN-output

    • 15 Hz low-pass filtered

    • Measurement ranges: ±4.2 g; ±163°/s

    The MM5.10 was designed to measure the physical effects of rotational and linear acceleration. In order to achieve this, the sensor includes MEMS measuring elements connected to an appropriate integrated circuit.

    A rotational acceleration around the integrated sensing elements generates a Coriolis force which changes the internal capacity of the micromachined sensing parts. Furthermore, a pure surface micromachined element is used to measure the vehicle linear acceleration in all 3-axis. This combination of rotational and lineal acceleration sensors enables a precise measurement of the vehicle dynamics.

    The main feature and benefit of this sensor is the combination of 3 linear and 2 rotational accelerometers and its high speed 1 Mbaud/s CAN-signal output.

    For the Motorsport Connector and Flying lead version please provide lead length (15-95cm) at time of order.

    For the non-terminated version, the mating connector kit can be found here:
    MM5.10 Connector Kit

    Please Contact Us for further information.

  • Documents

    Title Type
    🗎 Datasheet PDF
    🗎 3D Data (MM5_10) ZIP

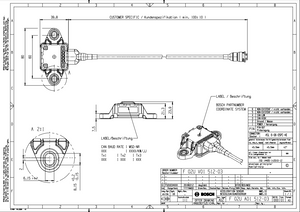

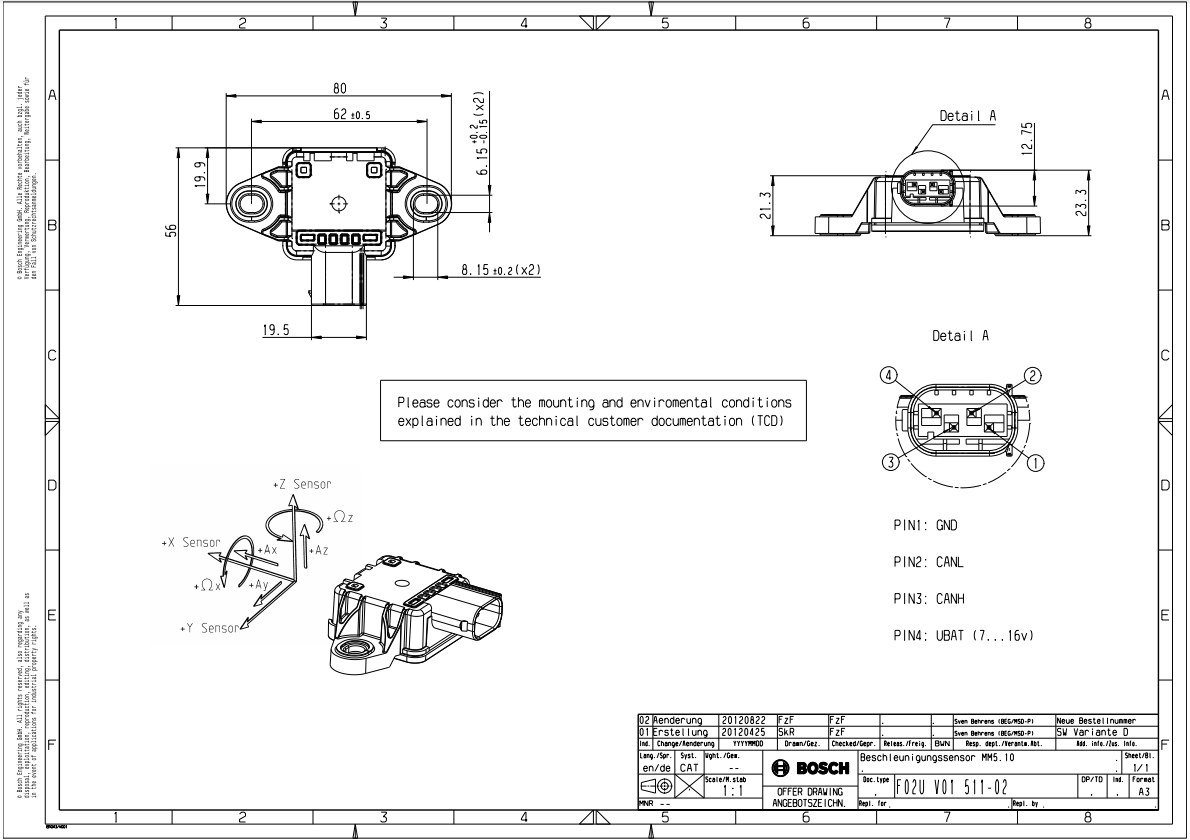

    🗎 CAD Drawing DXF (511-02) PDF

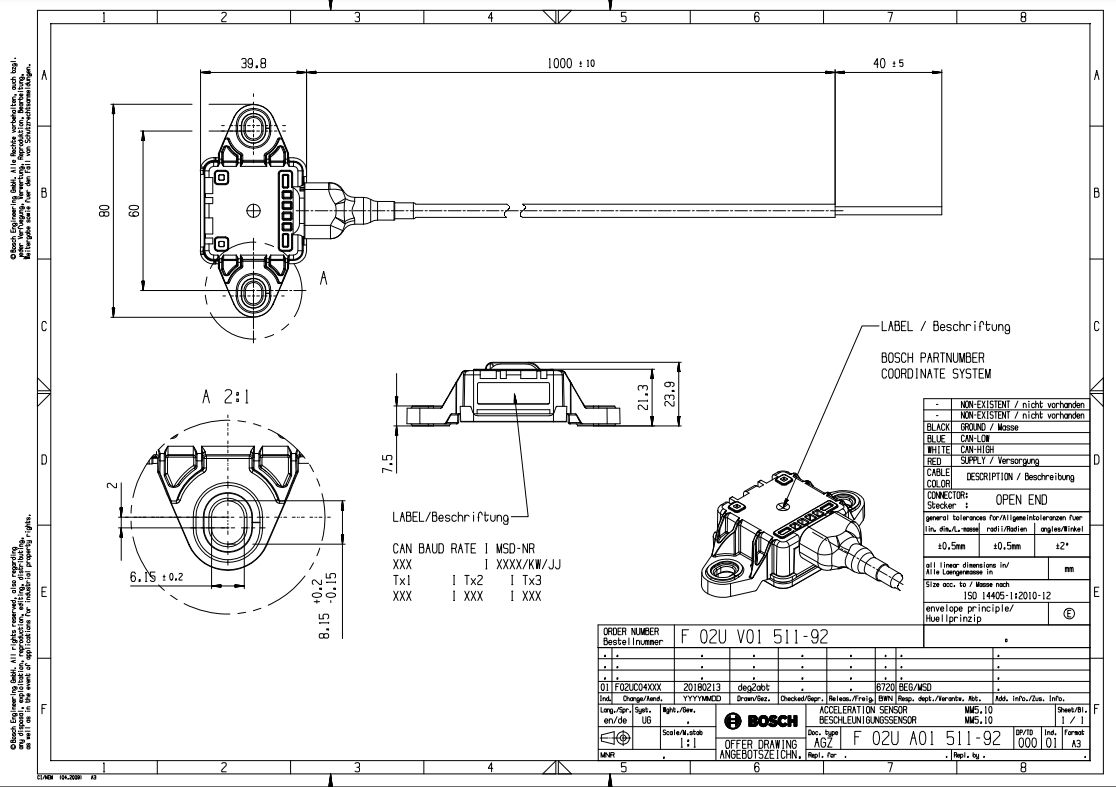

    🗎 CAD Drawing DXF (511-92) PDF

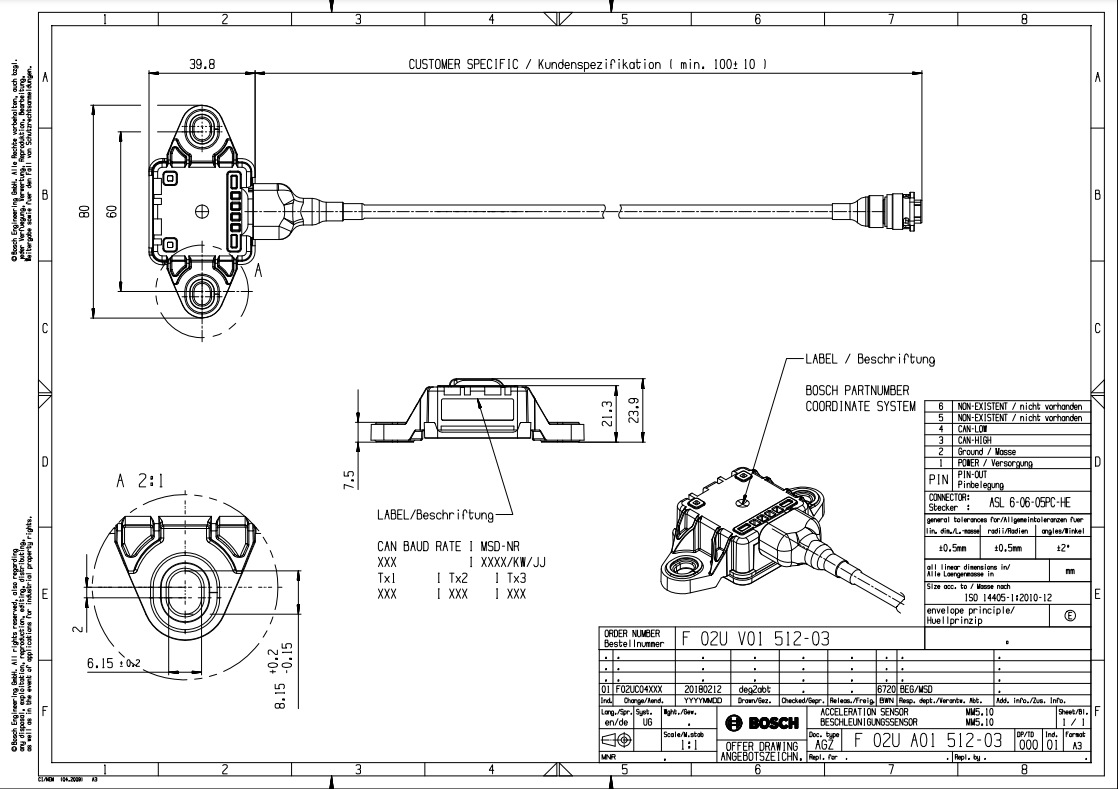

    🗎 CAD Drawing DXF (512-03) PDF
    🗎 Special (Calibration Sheet) PDF
