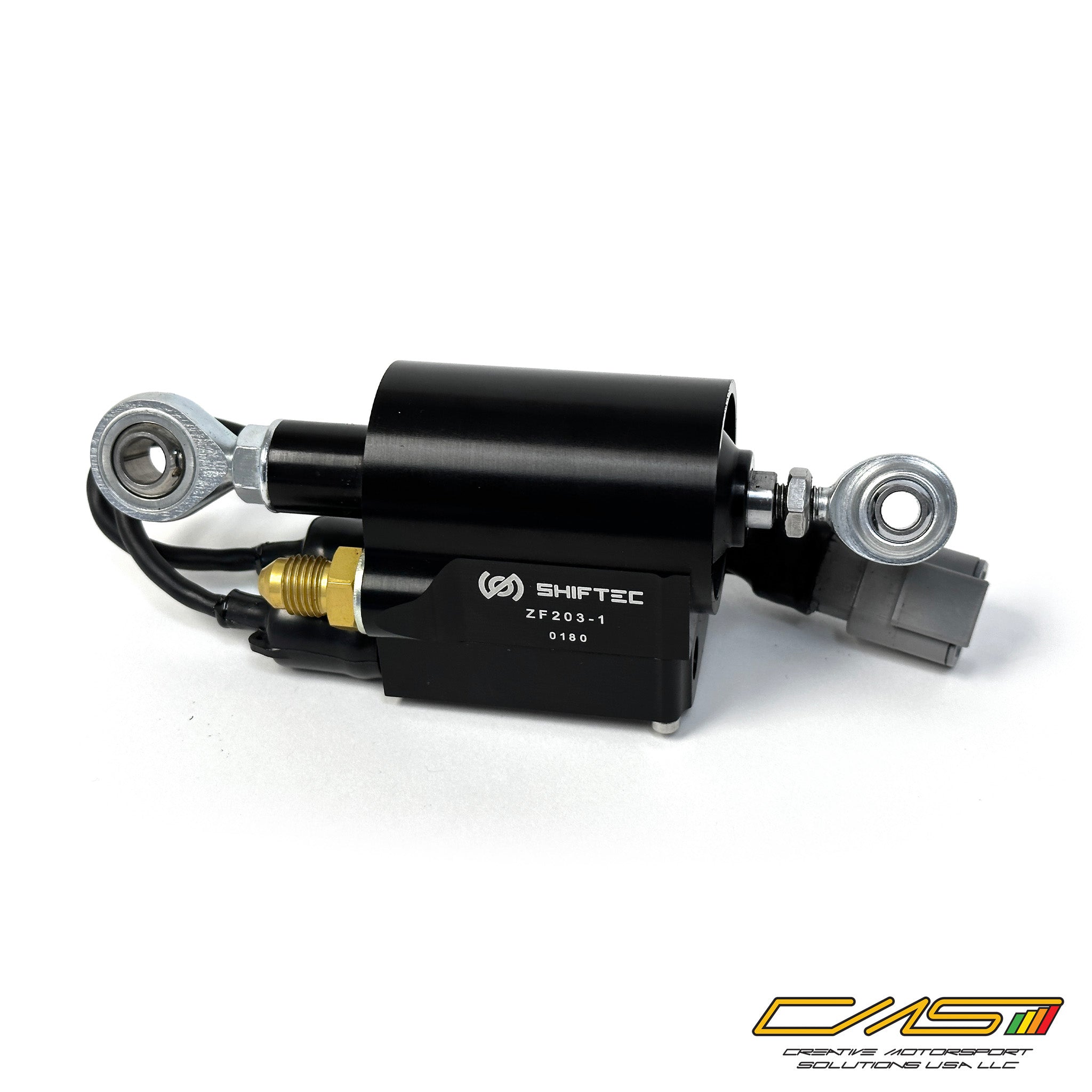

A Le Mans-winning gear shift actuator with the valves built right in, so there's virtually no air path between valve and piston, meaning faster shifts and less air consumed on every change.
A shift actuator and valve block combined into one compact unit.
Most pneumatic shift systems need a separate valve block feeding air to the actuator through a length of hose. The Gear Shift Servo (GSS) does away with that by custom designing the shift valves directly into the actuator body, essentially combining a shift actuator with a valve block in one part. Because there's virtually zero air path length between the valve's exit port and the actuator's piston, that translates directly into faster system response and a marked drop in air consumption, and it also means your install only needs a single air line and a single wiring connector instead of a valve block, hoses, and two connectors.
The body and valve block are CNC machined from high grade aluminum billet and protectively anodized. Low friction seals give the durable chrome rod smooth movement and a quick, accurate return to rest. Adjustable rod ends on both the body and piston rod mean it fits most applications. It's been a proven winner in GT and single-seater racing worldwide, including victories at the Le Mans 24 Hours, and has also seen success in WRC and off-road competition.
Valves built directly into the actuator body mean a near-zero air path and a fast, crisp shift.
One air line, one wiring connector, no valve block to package and plumb separately.
Proven across GT, single-seater, WRC, and off-road competition worldwide.
±17 mm stroke with adjustable rod ends on both the body and piston rod for a fit on most applications.
Low friction seals and a durable chrome rod, protected by integrated air filters for long service life.
Order with a DTM connector (ZF203-1) or a motorsport Autosport connector (ZF206-1).
| Valve response time | Under 10 ms |
| Max. operating pressure | 10 Bar |
| Stroke | ±17 mm (34 mm total) |
| Air inlet fitting | Dash 4 JIC male |
| Voltage range | 8 to 16 V |
| Max. current | 4.5 A at 12 V, 20°C |
| Min. valve coil resistance | 2.9 Ohms at 20°C |
| Weight | 12.8 oz (364 g) |
| Size (L x H x W) | 5.87 x 2.32 x 1.89 in (149 x 59 x 48 mm) |
| Mounting rod ends | 1/4 in (rod), 8 mm (body) |
| Service interval | 30 hrs or 6,000 km (3,728 mi) |
| Ambient working temperature | 14 to 158°F (-10 to 70°C) |
| Air supply | Under 10 Bar, clean and dry |
| ZF203-1 (DTM) | DTM04-3P, mating DTM06-3S — Pin 1: 12V, Pin 2: Up valve, Pin 3: Down valve |
| ZF206-1 (Autosport) | AS107-35PN, mating AS607-35SN — Pins 1/2: Up valve +/-, Pins 3/4: Down valve +/-, Pins 5-6: Not connected |
You won't need a separate valve block for this actuator, but you'll still want a compressor and accumulator supplying it air.
Shop the Accumulator →No. The shift valves are custom built into the actuator body itself, so there's no separate valve block to install, just a single air line and wiring connector.
ZF203-1 uses a DTM connector, ZF206-1 uses a motorsport Autosport connector. Match whichever your wiring harness is built around.
Every 30 hours or 6,000 km, whichever comes first.
