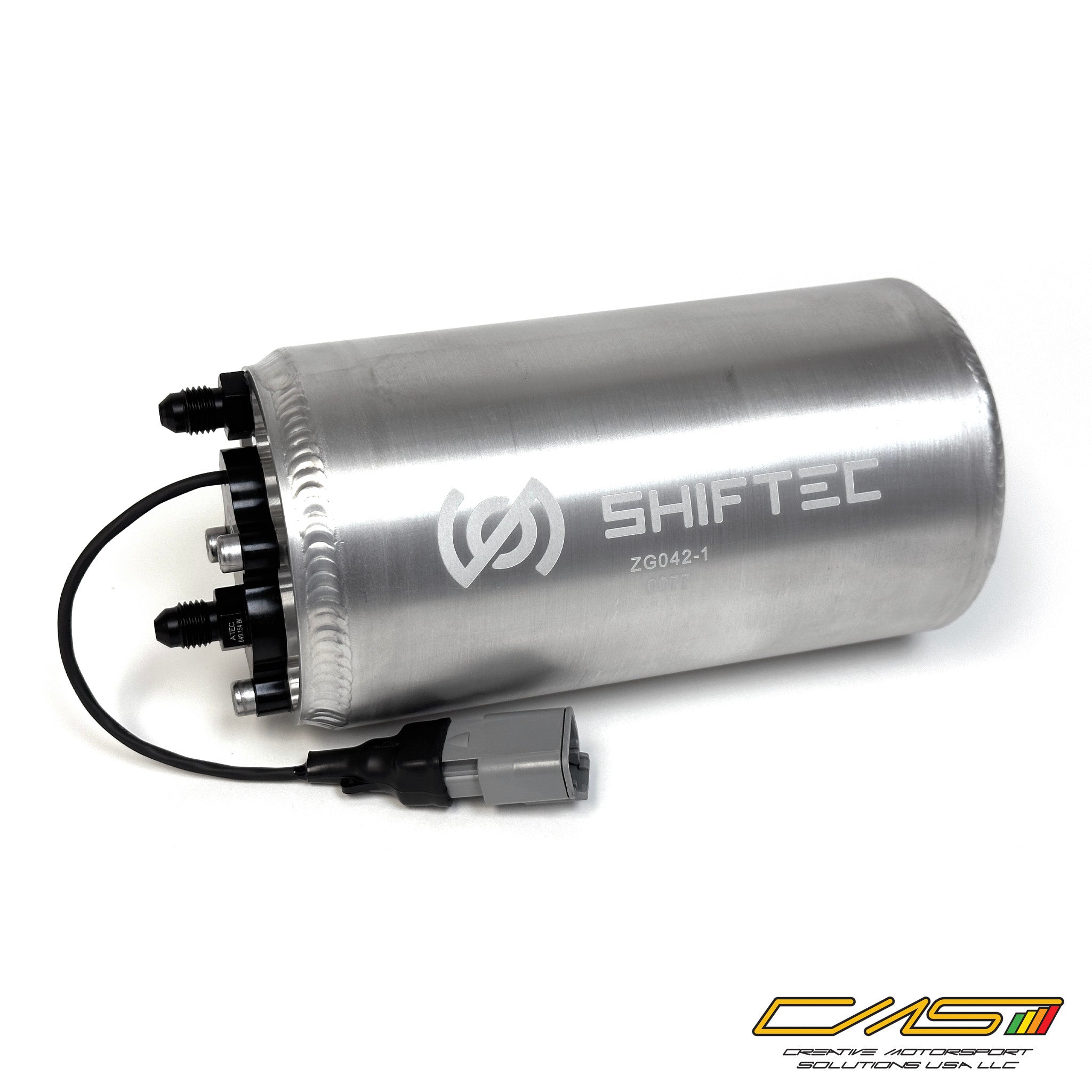

One billet end cap holding a pressure sensor, a particle filter, and 0.8 liters of reserve air, so your paddle shift system never runs short mid-shift.
A precision air storage vessel that keeps your shift system supplied when the compressor can't keep up alone.
This accumulator stores air from the compressor to maintain constant supply during high-consumption shifting, exactly the moments when the compressor alone can't meet demand. What sets it apart is what's built into the billet aluminum end cap: a pressure sensor and a filter element, both integrated rather than added as separate inline parts. The pressure sensor connects to a GCU for accurate compressor control and system pressure monitoring, and the filter keeps dirt and debris out of the pneumatic system before it can damage a valve downstream.
Because everything is combined into one part, you get less packaging and less weight than a separate accumulator, sensor, and filter setup, which is exactly why it's a natural pairing with the Shiftec Gear Shift Servo.
Connects to a GCU for accurate compressor control and real-time system pressure monitoring.
Keeps dirt and debris out of the pneumatic system before it can reach and damage a valve.
Precision CNC machined end cap houses the sensor and filter in one compact package.
One integrated part instead of a separate accumulator, sensor, and filter setup.
Standard air in and air out fittings, rated to 10 bar, for straightforward plumbing.
Sized and built to complement the Shiftec Gear Shift Servo's air consumption profile.
| Max. operating pressure | 10 Bar |
| Capacity | 0.8 liters |
| Air in / air out fitting | Dash 4 JIC male |
| Weight | 1.5 lb (660 g) |
| Length | 6.85 in (174 mm) |
| Diameter | 3.48 in (88.5 mm) |
| Connector | DTM 3-way socket/male, DTM04-3P |
| Wire length | 5.9 in (150 mm) |
This accumulator stores what the compressor and Gear Shift Servo need on demand. Pair it with both for a complete pneumatic shift system.
Shop the Compact Compressor → Shop the Gear Shift Servo →It connects to a GCU, which uses that reading to control the compressor accurately and monitor overall system pressure, instead of running the compressor on a fixed timer or guessing at pressure.
Combining the sensor and filter into the end cap cuts down on both packaging space and weight compared to running them as separate components, without giving up either function.
Yes, though it's specifically well suited to the Gear Shift Servo given its air consumption characteristics and integrated valve design.
