What's more terrifying than carrying Vmax into a braking zone and losing the front end to wheel lock, right when you needed it most? The ABS M5 puts that fear away for good, with a motorsport-calibrated system built for front, rear, and AWD race cars, delivering up to 20% better braking performance than an OEM system.
A complete, motorsport-calibrated ABS system built for front-, rear-, and four-wheel-drive race cars.

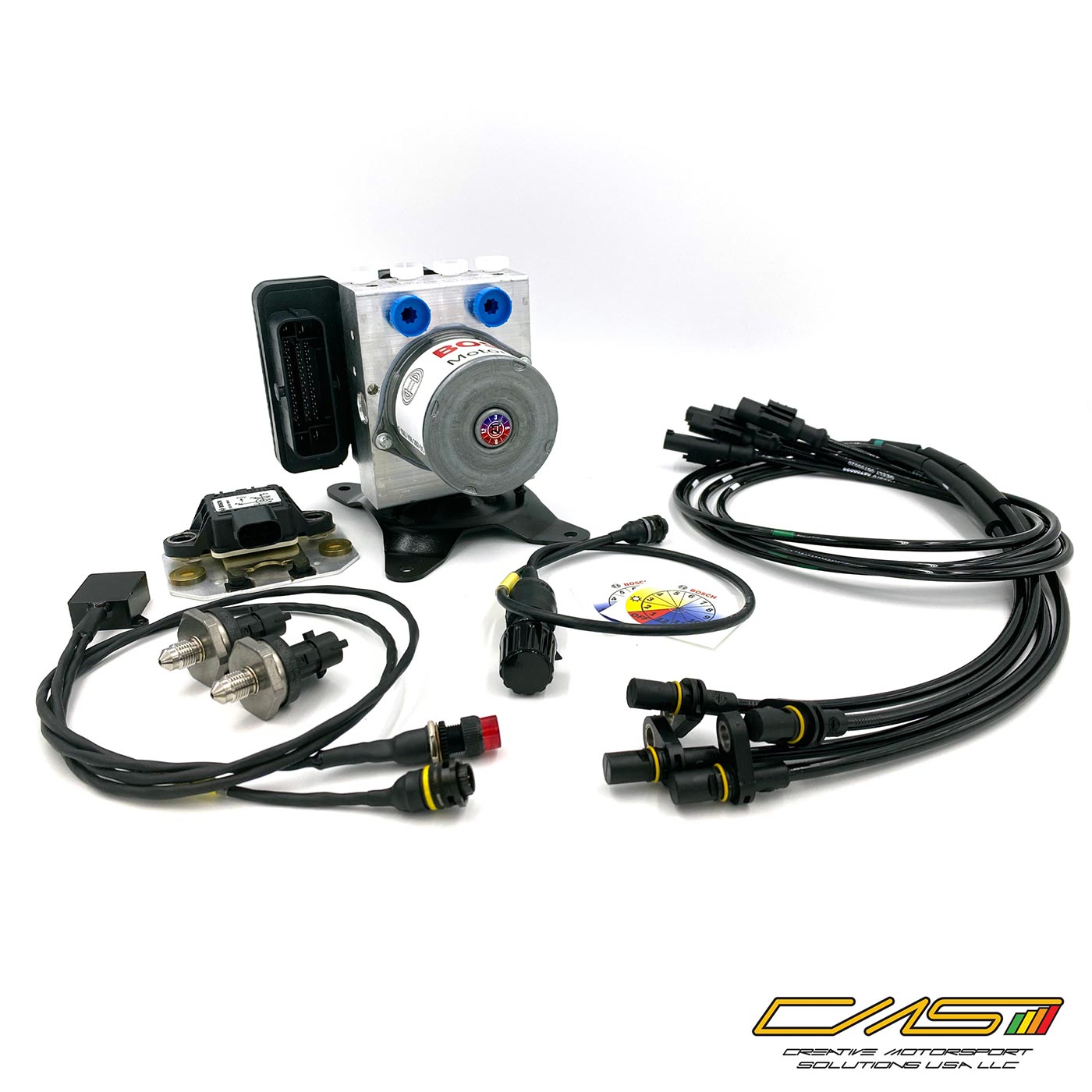

The ABS M5 is a full ABS system, not just a control unit. Every kit includes the hydraulic unit, brake pressure sensors, a yaw and acceleration sensor, wheel speed sensors, a 12-position driver switch, and a vehicle-specific wiring harness. Individual car parameters, vehicle weight, track width, wheel weights, wheel circumference, wheelbase, and sensor increment count, are all calibrated through free Bosch software, so the same hardware adapts to your specific car rather than forcing a generic setup onto it.
This listing covers Kit 1 and Kit 2, Bosch's full-customization tier with a vehicle-specific wiring harness built by our team and access to Bosch's advanced slip-control algorithms. If you're comparing this against the Clubsport tier, see our full ABS M5 kit comparison to find the right fit for your build.
Adjust ABS intervention on the fly with a driver-friendly rotary switch, dialing in braking response as track conditions evolve.
Every Kit 1/Kit 2 harness is built by our team to a precise fit for your car, for durability and clean integration a universal loom can't match.
Downforce-dependent slip, lateral deceleration slip, and corner inside-wheel slip reduction, calibrated by authorized Bosch engineers on top of the standard maps.
Motorsport-grade hydraulic unit rated to 224 mph (360 km/h), with a dust- and damp-proof housing and a vibration-damped circuit board.
Every vehicle parameter is set through Bosch's free RaceABS tool, no licensing cost to tune your car.
Developed for front-, rear-, or four-wheel-drive cars, with sensor and slip logic that adapts to your drivetrain layout.
Both share the same hydraulic unit, sensors, and advanced algorithm access. The difference comes down to the wheel speed sensor connectors.
| Feature | Kit 1 (Production Connectors) | Kit 2 (Motorsport Connectors) |
|---|---|---|
| Customized wiring loom | Yes | Yes |
| Customized ABS maps | On request | On request |
| ABS-Off on switch position 1 | Optional | Optional |
| ABS map selection via CAN signal | Yes | Yes |
| Motorsport connectors on wheel speed sensors | No | Yes |
| Flexible CAN terminals | Yes | Yes |
| Downforce-dependent slip regulation | With custom calibration | With custom calibration |
| Lateral acceleration slip regulation | Yes | Yes |
| Corner inside-wheel slip reduction | Yes | Yes |
Looking for the Clubsport tier instead? See our full ABS M5 kit comparison covering all three tiers.
Enabled with customer-specific calibration by Bosch engineers, on top of the standard 12-position switch maps.
| Housing | Serial, dust- and damp-proof, vibration-damped circuit board |
| Hydraulic layout | 2 valves/wheel, 2 brake circuits, 2 high-pressure pumps, 2 accumulators (5 cm³ each) |
| Standard fittings | 2x master cylinder M12x1, 4x brake cylinder M10x1 |
| Size | 4.80 x 4.33 x 4.80 in (122 x 110 x 122 mm) |
| Weight (hydraulic unit) | 4.2 lb (1,910 g) |
| Operating temperature | -22 to 266°F (-30 to 130°C) |
| Max. shock | 50 g, under 6 ms |
| Max. working speed | 224 mph (360 km/h) |
| Pressure medium | DOT 4 or DOT 5.1 brake fluid |
| Supply voltage | 10 to 16 V, max. 24 V for 5 min |
| Max. peak voltage | 35 V for 200 ms |
| Power consumption (pump) | 230 W |
| Power consumption (relay) | 170 W |
| Power consumption (electronics) | 8 W |
| Communication | CAN1, diagnostics via MSA-Box II |
| Wheel speed inputs | 4x active, DF11i, DF11S, or DF11V |
| Pressure inputs | Front and rear brake circuit |
| Dynamics input | Longitudinal/lateral acceleration, yaw rate (Bosch MM7.10 sensor) |
| Adjustment settings | 11 (OEM-applicable) |
| Outputs | ABS warning light (MIL), EBD warning light (MIL) if needed, TTL wheel speed FL/FR/RL/RR |
| Hydraulic unit | 4.2 lb (1,910 g) |
| 2x pressure sensors | 1.4 oz (40 g) each |
| Yaw/acceleration sensor | 2.1 oz (60 g) |
| 12-position function switch | 1.8 oz (50 g) |
| 4x wheel speed sensors (DF11 standard) | 1.8 oz (50 g) each |
| ABS warning light (MIL) | 1.8 oz (50 g) |
| Mounting/vibration-damping boards | 2.8 oz (80 g) |
| Hydraulic unit mounting board | 7.5 oz (212 g) |
| Vehicle-specific wiring harness | Depends on version |
Dynamics sensor updated to the Bosch MM7.10 IMU per Bosch's current published specification. Maintenance interval: brake fluid change and bleeding every 220 hours or a maximum of two years, whichever comes first. Racing loads run the hydraulic unit harder than road use, so Bosch recommends replacing the unit after two years.
Free calibration software from Bosch Motorsport, connected through the MSA-Box II.
Vehicle parameters are set using RaceABS, Bosch's free ABS configuration and diagnostic tool. It's where you dial in vehicle weight and track width, wheel weights and circumference, wheelbase, wheel speed sensor increment count, and, on Kit 1 and Kit 2, map assignment per switch position. A Bosch MSA-Box II USB diagnostic cable is required to connect your laptop to the ABS unit and is sold separately.
An ABS install involves more than just the kit. We stock the installation hardware and the diagnostic cable required to bring it to life.
Shop the ABS Installation Kit → Shop the MSA-Box II Diagnostic Cable →For the complete ABS M5 Kit specification, ordering options, and additional downloads direct from Bosch, visit the official Bosch Motorsport product page.
View on Bosch Motorsport →Motorsport connectors on the wheel speed sensor leads. Kit 2 has them, Kit 1 doesn't. Everything else, the hydraulic unit, sensors, custom harness, and advanced algorithm access, is identical between the two.
Yes, the ABS M5 was developed for operation in front-, rear-, or four-wheel-drive vehicles.
RaceABS, Bosch's free configuration software, and a Bosch MSA-Box II USB diagnostic cable to connect your laptop to the ABS unit (sold separately). Basic vehicle parameters like weight, track width, and wheel circumference are yours to set. The advanced slip-control algorithms require calibration by an authorized Bosch engineer, available at additional cost.
Bosch recommends a brake fluid change and bleed every 220 hours or two years, whichever comes first, and recommends replacing the hydraulic unit after two years given how much harder racing loads are on it than road use.
No. Clubsport uses a generic wiring harness and doesn't include the advanced slip-control algorithms available on Kit 1 and Kit 2. See our full ABS M5 kit comparison to weigh all three tiers against your build.
