The same pit lane speed and exit timing as the full-size Pit Lane Timer, in a housing small enough to fit anywhere.

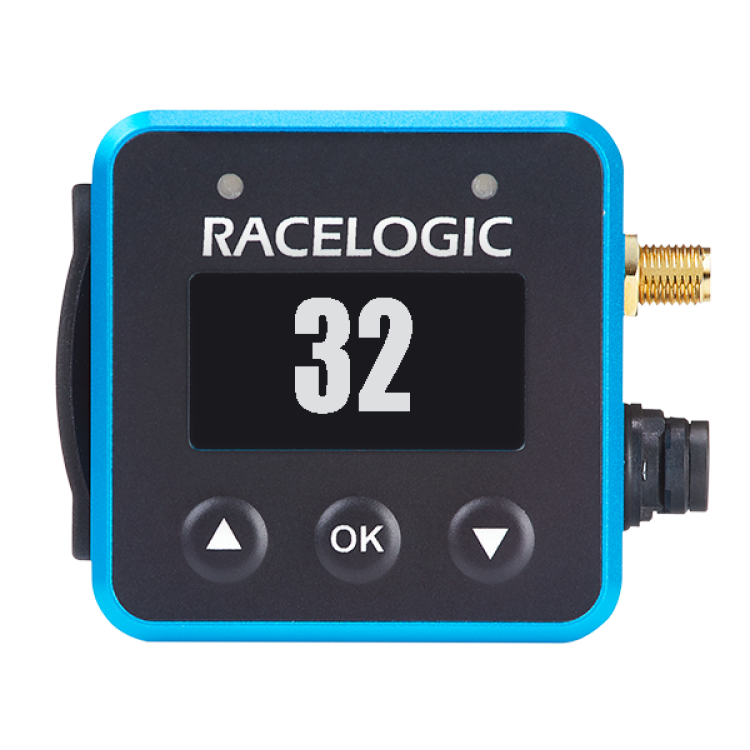

The VBOX Mini Pit Lane Timer retains the full functionality of the original Pit Lane Timer in a display just 50 x 50 x 27 mm, small enough to mount in vehicles where there's no room for the full-size unit. It recognizes your preset pit lane entry point as it's crossed, displays speed until the car comes to a stop, then counts down to zero to indicate exactly when it's time to leave.
High-brightness LEDs change color and intensity to warn the driver if they're going to exit too early, too late, or exactly on time, which is the difference between a clean stop and a drive-through penalty in a lot of endurance formats. Every stop is logged to the SD card at 10 times per second, so you can review pit lane efficiency after the fact.

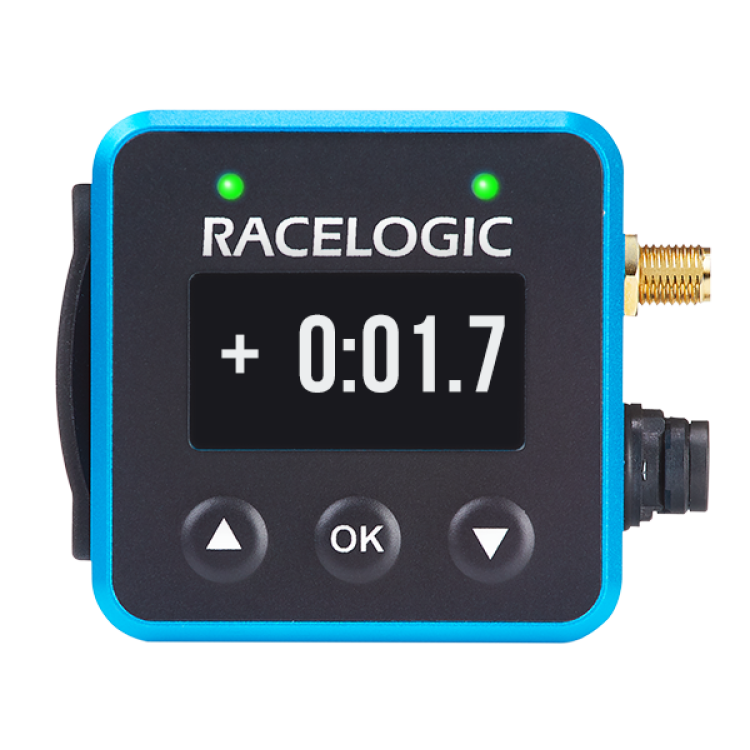

Recognizes pit entry, tracks speed to a stop, then counts down to the correct exit moment.
High-brightness LEDs change color and intensity to warn if the exit will be early, late, or on time.
Stint and pit lane times logged to SD card for post-session efficiency review in Circuit Tools.
Just 50 x 50 x 27 mm, built for vehicles with no room to mount the full-size display.
Race-grade connectors built for reliability under vibration and repeated use.
Analyze pit lane sessions in Racelogic's free software for Windows, macOS, and iOS.

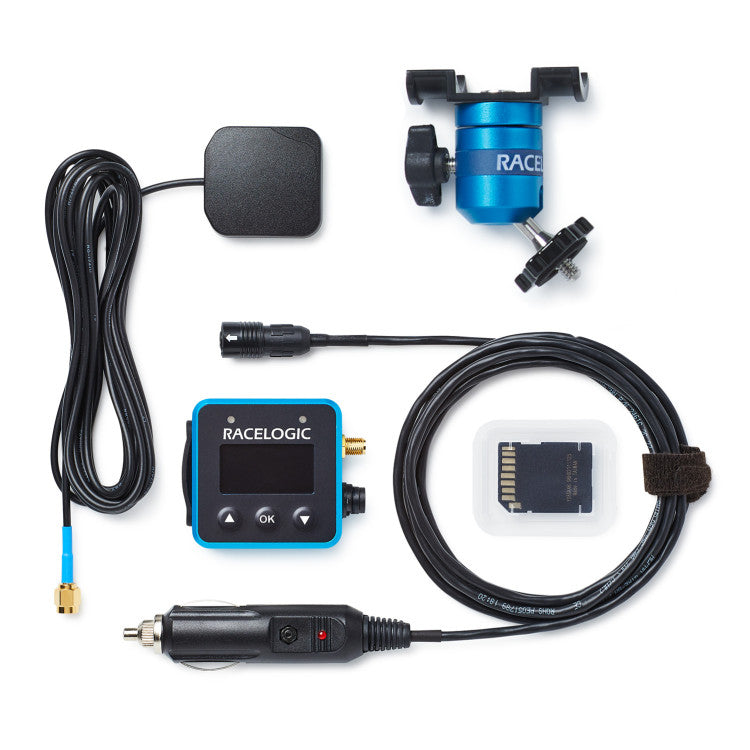

| VBOX Mini Pit Lane Timer Unit | ✓ |

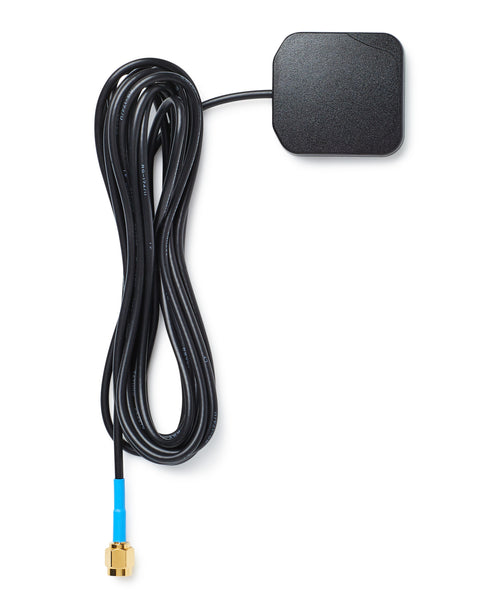

| External Antenna | ✓ |
| Roll Cage Mount | ✓ |
| Cigar Lighter Power Cable (2 m) | ✓ |
| 8 GB SD Ultima Pro Memory Card | ✓ |
| Product Code | RLVBPITMINI |
| Update Rate | 10 Hz |
| Velocity Accuracy | 0.18 km/h |
| Position Accuracy | 2.5 m (50% CEP) |
| IP Rating | IP65 |
| Operating Temperature | -20°F to +158°F (-20°C to +70°C) |
| Power Consumption | <1.5 W |
| Input Voltage | 7–30 V DC |
| Dimensions | 2.0 x 2.0 x 1.06 in (50 x 50 x 27 mm) |
| Weight | 3.6 oz (103 g) |
View the full Racelogic datasheet (PDF) for complete specifications.
We supply the Mini Pit Lane Timer to IMSA WeatherTech and SRO America teams who can't afford a pit lane penalty and don't have room for the full-size unit. We stock inventory in the United States for fast delivery, and our team can help you confirm it's the right fit for your car before you order.
Talk to our team about whether the Mini or full-size Pit Lane Timer fits your program, or order the Mini Pit Lane Timer now with fast US shipping and genuine Racelogic support.
