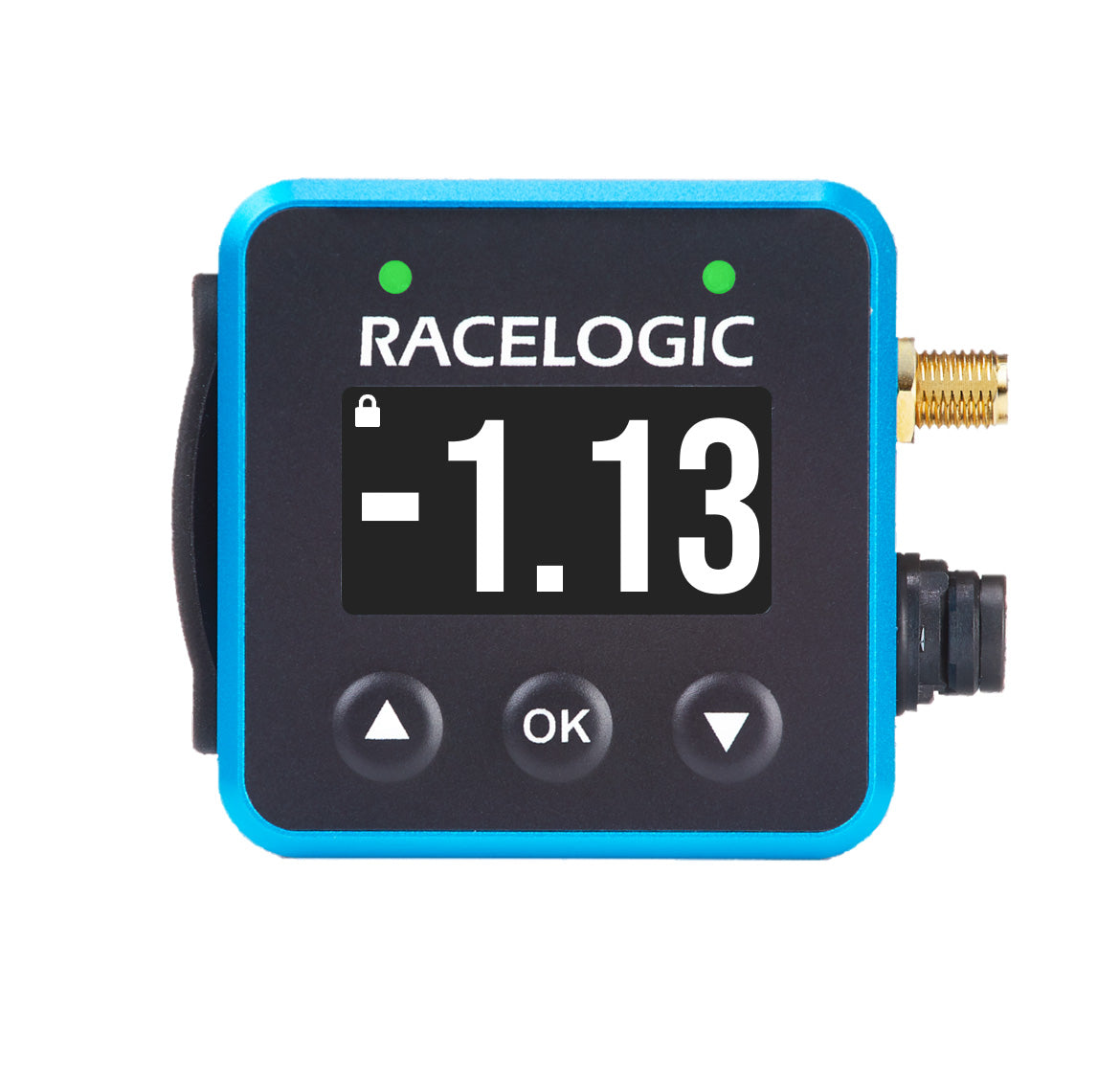

A 10 Hz GPS data logger and predictive lap timer display in one miniature housing, built for single-seaters and cars with no room to spare.
The VBOX Mini LapTimer packs the same core idea as the full-size Lap Timer, a standalone GPS logger and predictive Delta-T display in one unit, into a housing just 50 x 50 x 26.7 mm. If you're running a single-seater, a car with a tight dash, or anywhere the full-size unit simply won't fit, this is the version built for that problem.
It works entirely on its own. No HD2 required, no separate logger to wire in. The screen and the LEDs above it give you live feedback on where you're gaining or losing time, updating 10 times per second, with the same position-based Delta-T accuracy that makes the full-size Lap Timer trustworthy on long, complex circuits.
Live Speed, Max Speed, Speed Bar, Lap Count, Lap Timing, Predictive Lap Timing, Predictive Lap Timing with Delta-T, Lateral G, Lateral G Bar, Longitudinal G, and Longitudinal G Bar.
Compares your current lap to your fastest one by GPS position, not distance, so accuracy holds up even on long, twisty tracks.
Logs to the included SD card 10 times per second for post-session review in Circuit Tools.
Just 50 x 50 x 26.7 mm and 103 g, built for cockpits where the full-size unit won't fit.
Live LEDs show your speed relative to your fastest lap without needing to read a number mid-corner.
Review sessions in Racelogic's free analysis software for Windows, macOS, and iOS.
| VBOX Mini LapTimer Unit | ✓ |
| External Antenna (RG-174, SMA, 3 m) | ✓ |
| Roll Cage Mount | ✓ |
| Hirose 6W Plug to Cigar Plug Power Cable (2 m) | ✓ |
| 8 GB SD Ultima Pro UHS-1 Memory Card | ✓ |
| Product Code | RLVBLAPMINI |
| Update Rate | 10 Hz |
| Velocity Accuracy | 0.18 km/h |
| Position Accuracy | 2.5 m (50% CEP) |
| IP Rating | IP65 |
| Connector | Side |
| Operating Temperature | -20°F to +158°F (-20°C to +70°C) |
| Power Consumption | <1.5 W |
| Input Voltage | 7–30 V DC |
| Dimensions | 2.0 x 2.0 x 1.05 in (50 x 50 x 26.7 mm) |
| Weight | 3.6 oz (103 g), excluding cables |
View the full Racelogic datasheet (PDF) for complete specifications.
We supply the Mini LapTimer to IMSA and SRO teams running single-seaters and space-constrained cars where the full-size unit just doesn't fit. We stock inventory in the United States for fast delivery, and if you're unsure whether the Mini or the full-size Lap Timer is the right call for your car, our team has installed both and can walk you through it.
Talk to our team about whether the Mini or full-size Lap Timer fits your car, or order the Mini LapTimer now with fast US shipping and genuine Racelogic support.
