Street Dash

  • Key Features

    • Legendary Stack stepper motor analog tacho display

    • Integrates the following display parameters:


    Odometer and Trip

    Oil Pressure

    Oil Temperature

    Water Temperature

    Battery Voltage

    Fuel Level

    • Peak Value Recall

    • User-programmable Intelligent Alarms

    • Separate low fuel indicator lamp

    • Waterproof (ideal for roadsters, bikes, and off-road use)

    • 1 Year Competition Warranty

    • Optional Fuel Pressure channel

    • Optional external sequential shift lift

    • Optional Lap Timing and Predicted Lap Timing

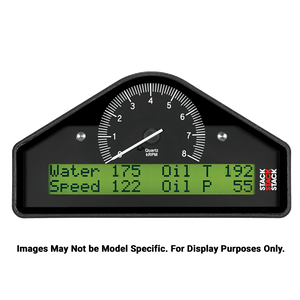

    Ideal for both Rally and High-Performance streetcars, the ST8130 not only retains all the ST8100 racing features but also meets street legal requirements.

    Replaces speedometer, tachometer, oil-pressure, water-temperature, fuel-level, voltmeter, oil-temperature odometer, and trip meter functions.

    Each system is supplied complete with sensors (except fuel level), ready wired harness and manual. Ultra light-weight design utilizing a carbon fiber composite housing. Compatible with all conventional & MSD ignition systems and engine types.

    Intelligent Alarm System

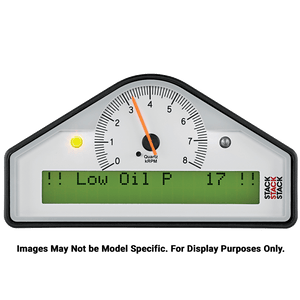

    The user adjustable intelligent alarm system monitors engine condition 20 times every second. The instant any value exceeds a normal safe working level the alarm light is illuminated and a clear easy to read alarm message is displayed on the LCD.

    Precision Fuel Level Calibration

    The ST8130 can be simply connected to any standard fuel sensor. Unlike conventional gauges, the ST8130 allows the user to precisely calibrate the sensor to the tank, by using a multi-point scaling, - ensuring the driver knows exactly how much fuel is in the tank at all times.


    Please Contact Us for further information.

  • Documents

    Title Type
    🗎 Operational Guide PDF
