M PDM32

PDM32M

  • Basic Specifications

    Outputs

    • 8 x 20 A outputs—20 A continuous, 115 A transient (typical)

    • 24 x 8 A outputs—8 A continuous, 60 A transient (typical)

    Inputs

    • 23 x Switch inputs

    Communications

    • 1 x CAN

    Diagnostic Information

    • Output current and voltages

    • Input voltages

    • Error status

    Physical

    • Connectors

    1 x 37 pin Autosport connector

    1 x 26 pin Autosport connector

    1 x 1 pin Autosport connector

    1 x 8 pin Autosport connector

    • Case size 180 x 60 x 28 mm

    • Weight 405 g

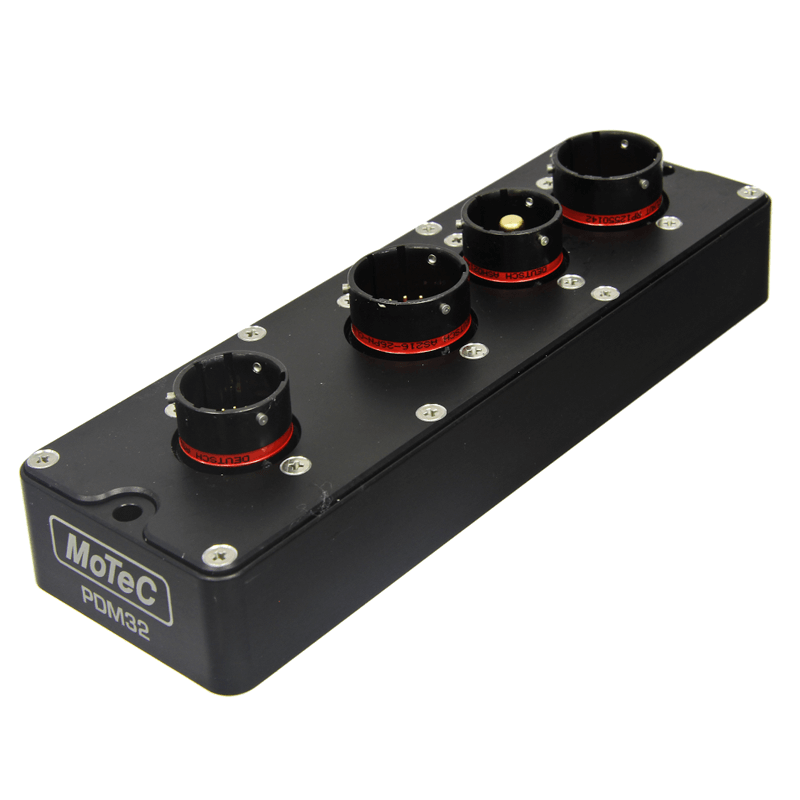

    MoTeC’s new 32 output Power Distribution Module (PDM32) is designed to provide electronically switched power to the various electrical systems in the vehicle such as motors, lights and solenoids, and electronic devices such as ECUs and data acquisition systems.

    The module replaces conventional relays, fuses, and circuit breakers, simplifying wiring and reducing weight while increasing reliability.

    Please Contact Us for further information.
