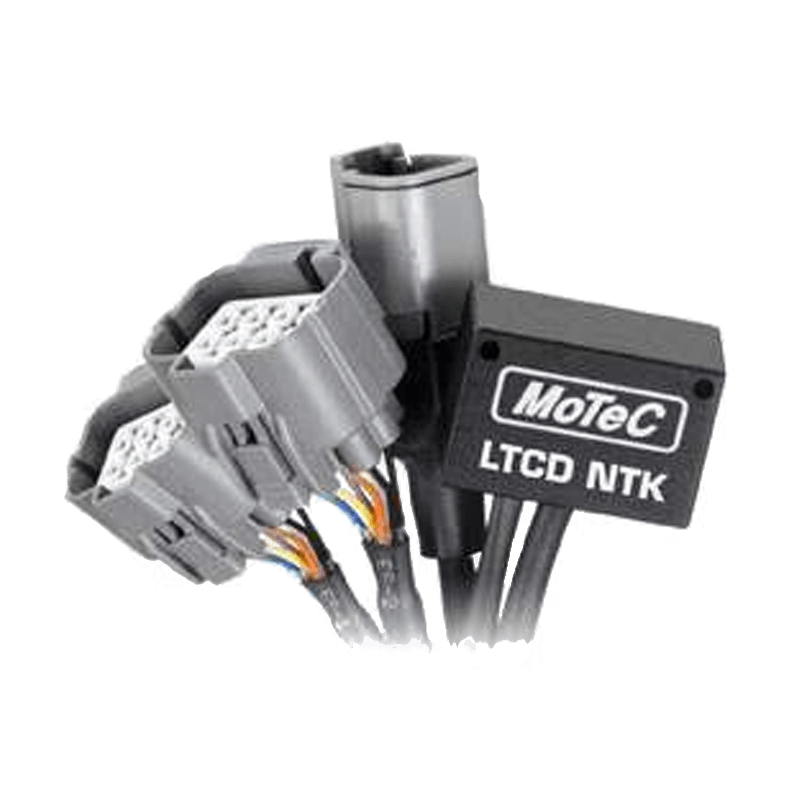

Lambda to CAN (LTCD-NTK)

Specifications

Inputs/Outputs

• 2 x NTK Lambda sensors (MoTeC #57007)

• Power supply voltage 11 V – 16 V

• Power supply current 110 mA typical plus the sensor heater current (heater current is typically 0.5 A – 1 A and up to 2 A on startup)

Communications

• 1 x CAN at 1 Mbit/sec

Compatible with

• NTK, 5 wire sensor

Connectors

• 1 x 4 pin male DTM connector (power/CAN)

• 2 x mating connectors for NTK Lambda sensors

Physical

• Dimensions 38 x 26 x 23.5 mm excluding wiring looms and connectors

• Weight 100 gram

• Maximum ambient temperature 100 °C

MoTeC’s LTCD NTK (Lambda to CAN) modules monitor, control and diagnose NTK Lambda sensors, transmitting readings on a CAN bus. When multiple LTCD NTKs are used, up to 32 Lambda sensors can be configured on a single CAN bus, allowing an ECU or logging device to simultaneously monitor numerous Lambda sensors.

NOTE: MoTeC’s LTCD NTK is also available in a singular version, LTC NTK
