MoTeC

M LTCD

Lambda to CAN (LTCD)

  • Specifications

    Inputs/Outputs

    • 2 x Bosch LSU 4.9 Lambda sensor)

    • Power supply voltage 11 V – 16 V

    • Power supply current 110 mA typical plus the sensor heater current (heater current is typically 0.5 A – 1 A and up to 2 A on startup)

    Communications

    • 1 x CAN at 1 Mbit/sec

    Compatible with

    • Bosch LSU 4.9, 5 wire sensor

    Connectors

    • 1 x 4 pin male DTM connector (power/CAN)

    • 2 x mating connector for Bosch LSU 4.9 sensor

    Physical

    • Dimensions 38 x 26 x 23.5 mm excluding wiring looms and connectors

    • Weight 100 gram

    • Maximum ambient temperature 100 °C

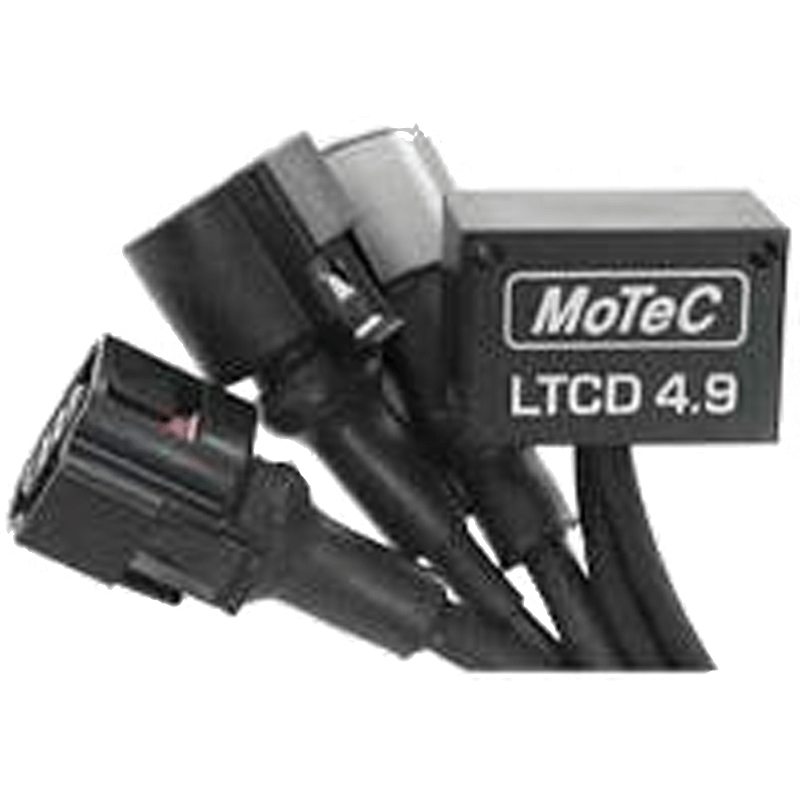

    MoTeC’s LTCD (Lambda to CAN Dual) modules monitor, control and diagnose Bosch LSU 4.9 Lambda sensors, transmitting readings on a CAN bus. When multiple LTCDs are used, up to 32 Lambda sensors can be configured on a single CAN bus, allowing an ECU or logging device to simultaneously monitor numerous Lambda sensors.

    NOTE: MoTeC’s LTCD is also available in a singular version, LTC

    Please Contact Us for further information.
