MoTeC

M LTC

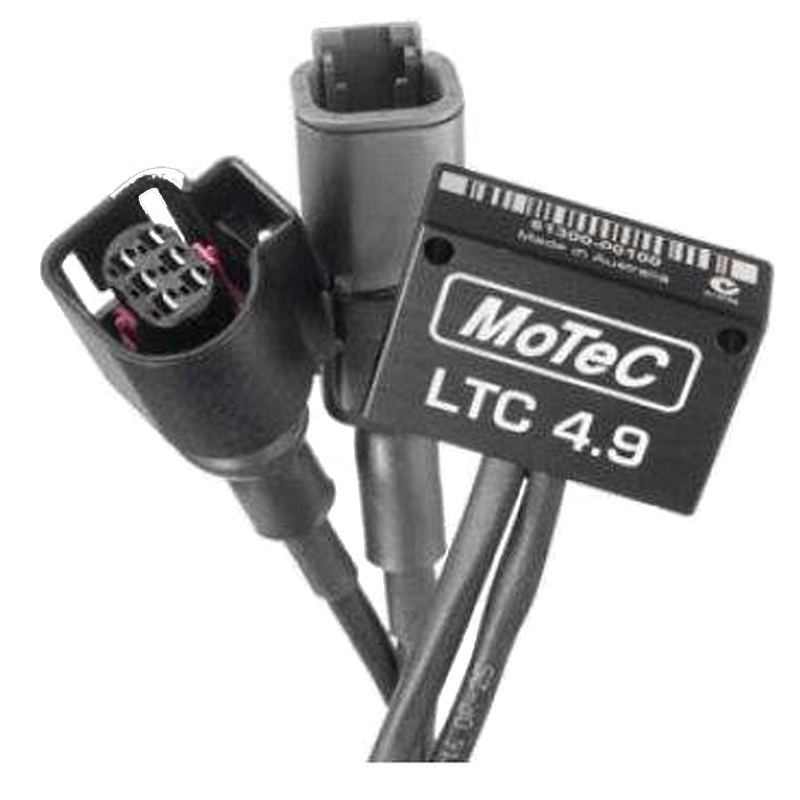

Lambda to CAN (LTC)

  • Specifications

    Inputs/Outputs

    • 1 x Bosch LSU 4.9 Lambda sensor

    • Power supply voltage 11 V – 16 V

    • Power supply current 110 mA typical plus the sensor heater current (heater current is typically 0.5 A – 1 A and up to 2 A on startup)

    Communications

    • 1 x CAN at 1 Mbit/sec

    Compatible with

    • Bosch LSU 4.9, 5 wire sensor

    Connectors

    • 1 x 4 pin male DTM connector (power/CAN)

    • 1 x mating connector for Bosch LSU 4.9 sensor

    Physical

    • Dimensions 38 x 26 x 14 mm excluding wiring looms and connectors

    • Weight 62 gram

    • Maximum ambient temperature 100 °C

    MoTeC’s LTC (Lambda to CAN) modules monitor, control and diagnose Bosch LSU 4.9 Lambda sensors, transmitting readings on a CAN bus. When multiple LTCs are used, up to 32 Lambda sensors can be configured on a single CAN bus, allowing an ECU or logging device to simultaneously monitor numerous Lambda sensors.

    Please Contact Us for further information.
