F02U.V0U.426-02

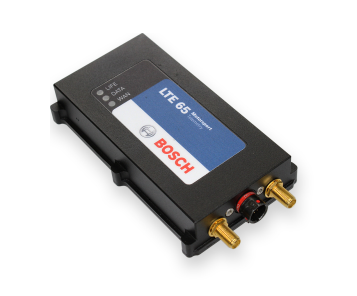

Bosch LTE65 Telemetry System
Bosch LTE65 Telemetry system provides unparalleled speed and reliability for data communication between the car and the pits. Utilizing Verizon cellular coverage, the LTE system is a is licensed to use the top tier of the Verizon network, the only group with better service are first responders and law enforcement.
This is a plug and play system that requires little setup.
The car side transmitter is connected to the car's telemetry output device utilizing RS232 serial communications at either 38,400, 57,600, or 155,200 kb/s transmission rate. The pits can either receive the data using RS232 or UDP protocol. UDP is recommended as it allows the system to "back haul" data at as fast a data rate is available. UDP has been tested and works with the following data systems:
The system is subscription bases system, there are 3 annual data packages available:
First time customers can buy a kit including the data package as a package, then subscriptions can be renewed annually.
Kits for prototype cars and GT cars are identical except for the car antenna which is optimized for the different applications. Kits include the following:
2 Telemetry Modules
1 x Car antenna
1 x Pit side antenna
1 x Pit side wiring harness
Note: Wiring for the car can be supplied at an extra cost, we have designs for many applications.
Downloads:
Bosch LTE 65 Data Sheet | |
Bosch LTE 65 Manual | |
Bosch LTE65 Drawing | |
WD_Server Software (for Bosch Hardware only) |
