DRAG RACING MULT-FUNCTION DISPLAY LOGGER

SKU: ST269601
$2,587.00
$2,587.00
Range: 0-8K RPM
Subtotal: $2,587.00

Orders shipped via UPS (FedEx Optional)

In stock items shipped within 1-3 business days.

Pre-order items must first be sent from our distributor to our office. Once received it will then ship to you. There may be some delay due to manufacturer availability. Please reach out with any lead time requirements.
DRAG RACING MULT-FUNCTION DISPLAY LOGGER

Vendor: STACK

DRAG RACING MULT-FUNCTION DISPLAY LOGGER

$2,587.00

Vendor: STACK

DRAG RACING MULT-FUNCTION DISPLAY LOGGER

$2,587.00
Range: 0-8K RPM

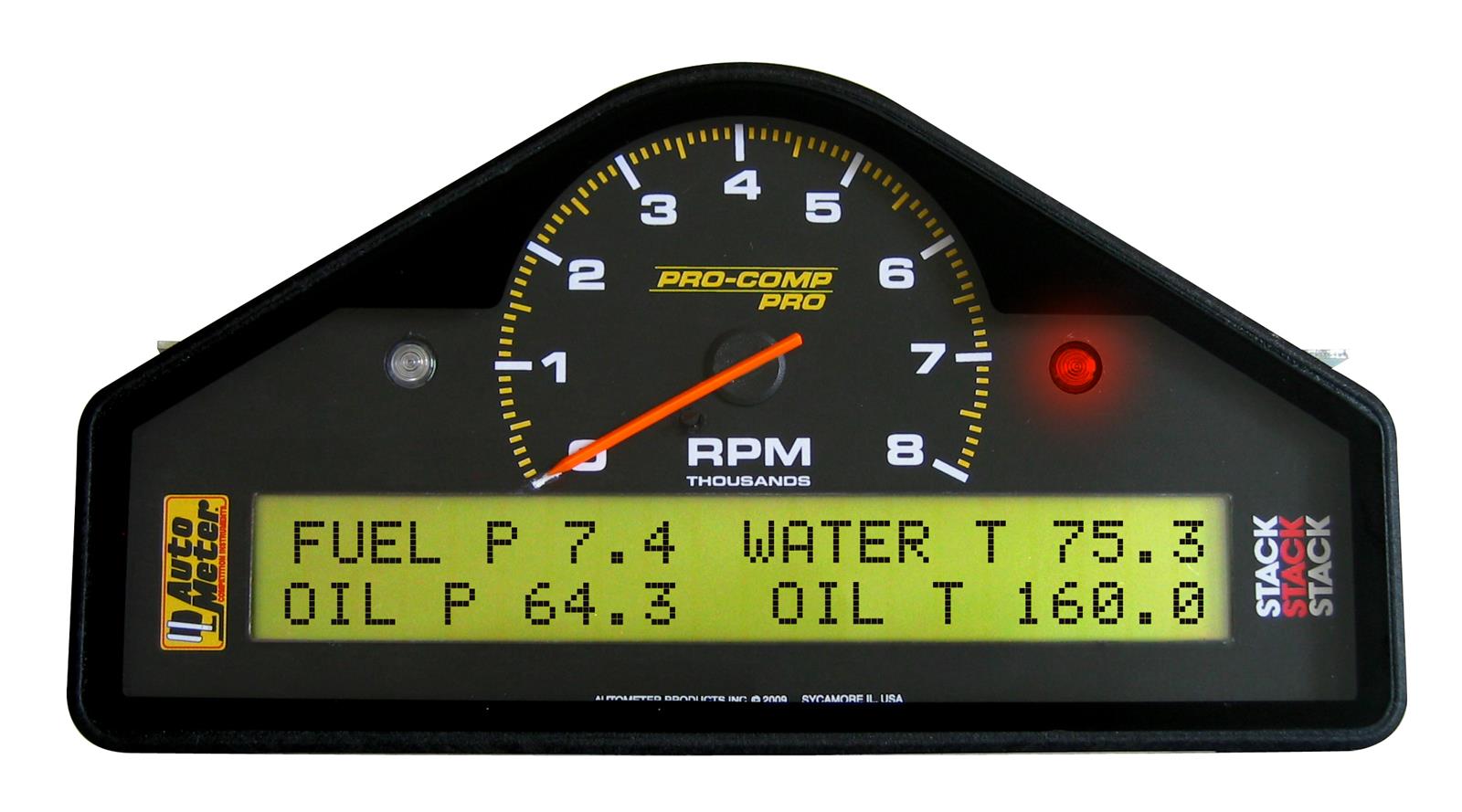

The AutoMeter MFDL display systems are designed specifically for the harshest environments. The carbon composite housing is IP67 sealed against water and dust intrusion and will easily withstand 20g of continuous vibration and 50g of shock. The analog pointer provides a quick and clear display for engine RPM while the digital display layout is configurable to your specifications using multiple pages for your axillary instrumentation needs.

The MFDL can support nearly limitless amount of discrete analog sensors joined with its integrated 3 Axis Accelerometer. Data collection can occur at up to 500 Hz and the internal memory keeps track of your runs. User definable warnings display across the digital display and illuminate the warning LED placed to the side of the tachometer to alert the driver to critical information.

Display Features:

  • Dimensions - 8.3" Wide x 5.2" High x 1.4" Deep
  • Carbon Composite Housing
  • Single 19 pin MIL spec connector and motorsports wiring loom utilizing Mini Sure Seal connections for ease of installation and removal
  • 13 analog inputs for discrete sensors. Expansion modules available separately for additional inputs
  • DataPro Designer PC Setup utility
  • User configurable from display via external 3 button interface for at track changes.
  • Initial release supports 6 layers or screens selected from  user- configurable layouts
  • Display features digital values for vehicle parameters and configurable text warning messages
  • Patented Predictive Lap Timing Display for Driver and Vehicle Development
  • DVL Compatible


Inputs:

  • 3 pulse/digital or analog inputs
  • 5 analog inputs (0-5V)
  • 3 external switches
  • Internal 3-axis accelerometer +/-6g
  • Internal battery voltage


Communications:

  • 1 USB port: data exchange, configuration, copy/upload, & firmware updates.


Data Recording:

  • 2 MB Onboard Datalogging Memory
  • Sample rates up to 500 Hz
  • Includes powerful DataPro Analysis Software


Environmental:

  • IP67 sealed
  • Operating temperature range: 20ºF to 180ºF
  • Humidity: 0-100% RH
  • Continuous vibration up to 20g, Shock up to 50g


Miscellaneous:

  • Weight: 1.5lbs
  • Motorsports grade wiring harness included
Feature Points
    Total Recording Channels: 13

    Sensor Inputs: 9

    Ships With
    • Harness Length: 10ft
