Motorsport Tire IR Temperature Sensor Kit - 200°C Analog Output
$5,357.00 - $6,257.00$5,687.00 - $6,407.00

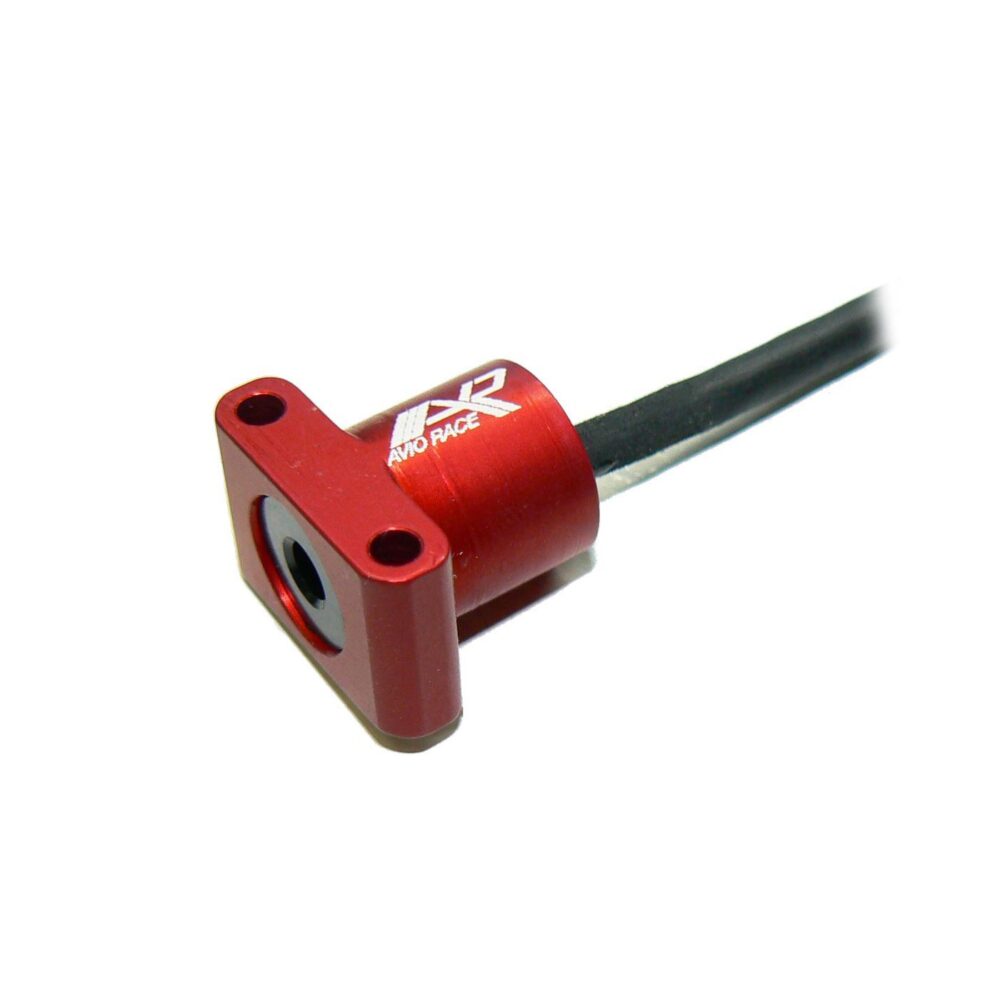

Designed and built by AvioRace, the IP64 rated miniaturized infrared temperature sensor was specifically designed for contact free tire temperature measurement. With a fully sealed, red anodized aluminum body, the sensor contains highly accurate elements built in to actively compensate the output signals, which are proportional to detected temperature.
These are a high performance, cost effective solution to monitor tire temperatures for all motorsport and racing applications.

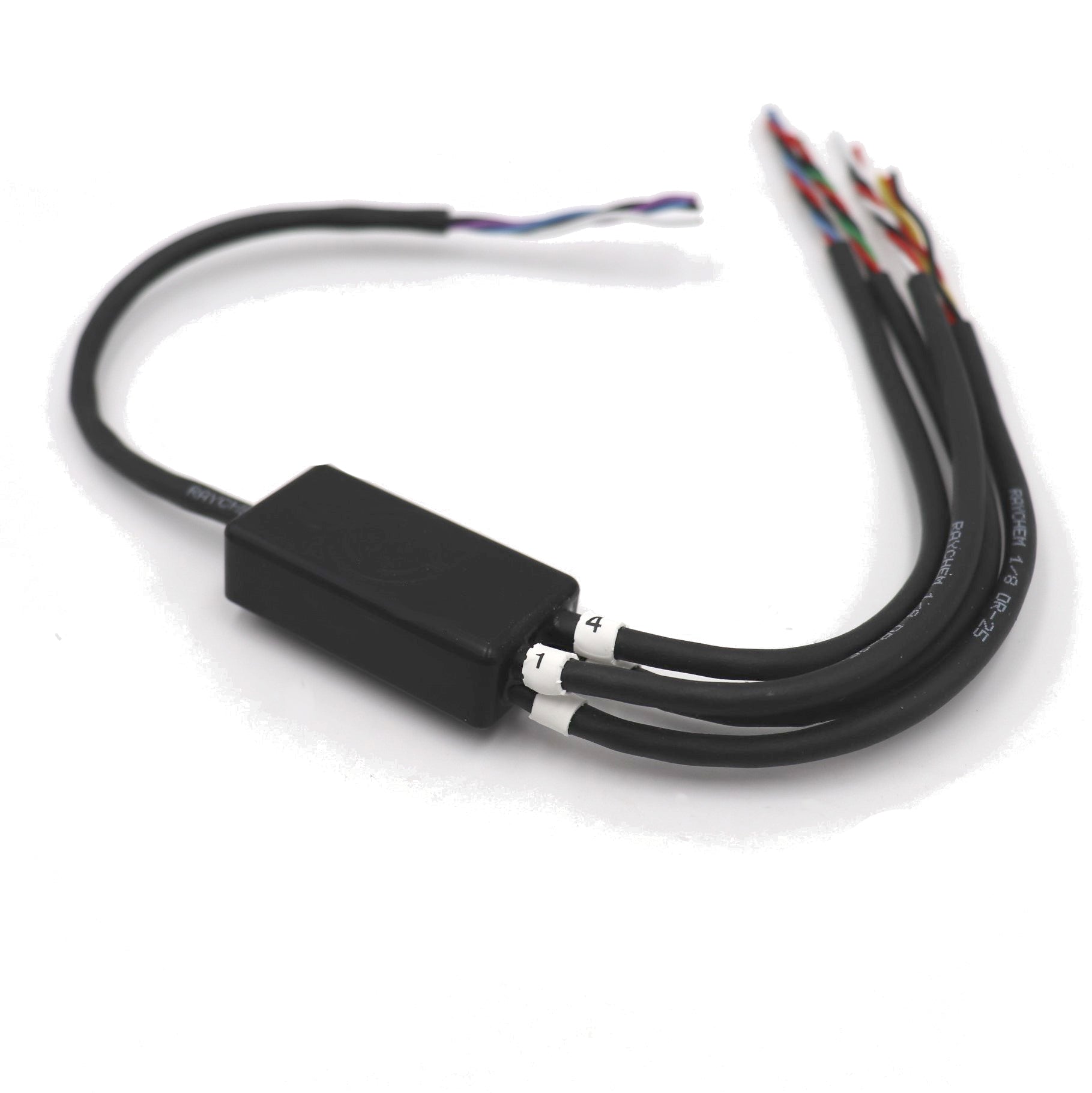

Each kit includes 3 sensors per corner, for a total of 12 sensors.
o Supply voltage: 5-16 Vdc o Output voltage: 0-5 Vdc o Current consumption: 10mA MAX o Measurement distance: 50-150mm o Protection: IP64 o Weight: ≈20g
Click HERE to view the data sheet for technical specs and information.
