MoTeC

M PDM16

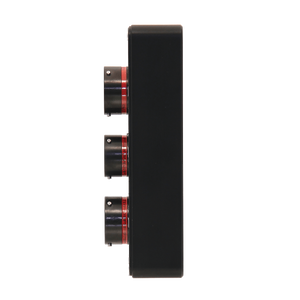

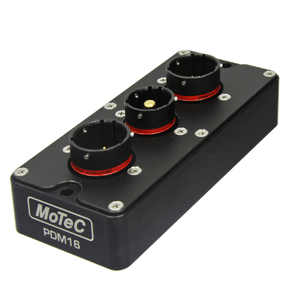

Power Distribution Module PDM16

  • Basic Specifications

    Outputs

    • 8 x 20 A outputs—20 A continuous, 115 A transient (typical)

    • 8 x 8 A outputs—8 A continuous, 60 A transient (typical)

    Inputs

    • 12 x Switch inputs

    Communications

    • 1 x CAN

    Diagnostic Information

    • Output current and voltages

    • Input voltages

    • Error status

    Physical

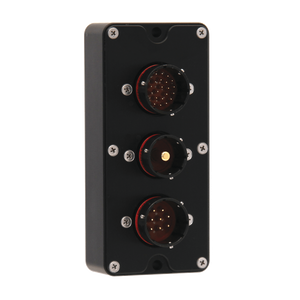

    • Connectors

    1 x 26 pin Autosport connector

    1 x 1 pin Autosport connector

    1 x 8 pin Autosport connector

    • Case size 130 x 60 x 28 mm

    • Weight 300 g

    MoTeC’s new 16 output Power Distribution Module (PDM16) is designed to provide electronically switched power to the various electrical systems in the vehicle such as motors, lights and solenoids, and electronic devices such as ECUs and data acquisition systems.

    The module replaces conventional relays, fuses and circuit breakers`, simplifying wiring and reducing weight while increasing reliability.

    Please Contact Us for further information.
