IRNC 4 Channel 200°C IR Tire Temp Sensor for CAN Bus

$1,025.00
$1,025.00
Connector Type: Unterminated
Subtotal: $1,025.00

Orders shipped via UPS (FedEx Optional)

In stock items shipped within 1-3 business days.

Pre-order items must first be sent from our distributor to our office. Once received it will then ship to you. There may be some delay due to manufacturer availability. Please reach out with any lead time requirements.
IRNC 4 Channel 200°C IR Tire Temp Sensor for CAN Bus

Vendor: Texense

IRNC 4 Channel 200°C IR Tire Temp Sensor for CAN Bus

$1,025.00

Vendor: Texense

IRNC 4 Channel 200°C IR Tire Temp Sensor for CAN Bus

$1,025.00
Connector Type: Unterminated

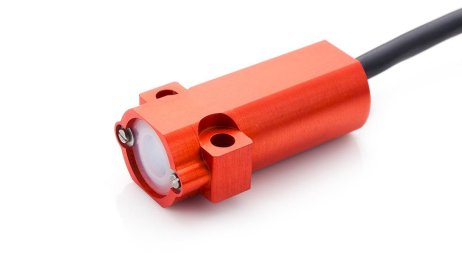

This infrared tyre temperature sensor reads four channels up to a maximum temperature of 200°C and can operate over a distance of up to 950 mm, allowing for mounting in the leading edge of the side pod or the wing mirrors (for front infrared tyre temperature measurement). Output is via a fully user-configurable CAN 2.0 B system. The IRN4 infrared tyre temperature sensor series is extensively used in F1 by over 90% of the grid! The Texense IRN4 combines perfect accuracy at 200°C (±1% FS) and great temperature compensation, making it the ideal solution for measuring infrared tyre temperature across the whole surface of the tyre, even in extreme conditions. The quality of design, dimensions (31 x 11 x 17 mm) and weight with cable (only 15 g) means it is easy to install. At long ranges such as 950 mm, the outer channels bleed into the sidewall of the tyre and capture critical data when steering angle is applied. The latest 2014 version of the IRN4 infrared tyre temperature sensor comes complete with a user changeable lens cover system that does not affect the calibration. The lens covers are available separately. Like most Texys infrared temperature sensors, it accepts an input voltage between 6 and 16 V, which can be direct from the vehicle’s power supply, as can the ground.
