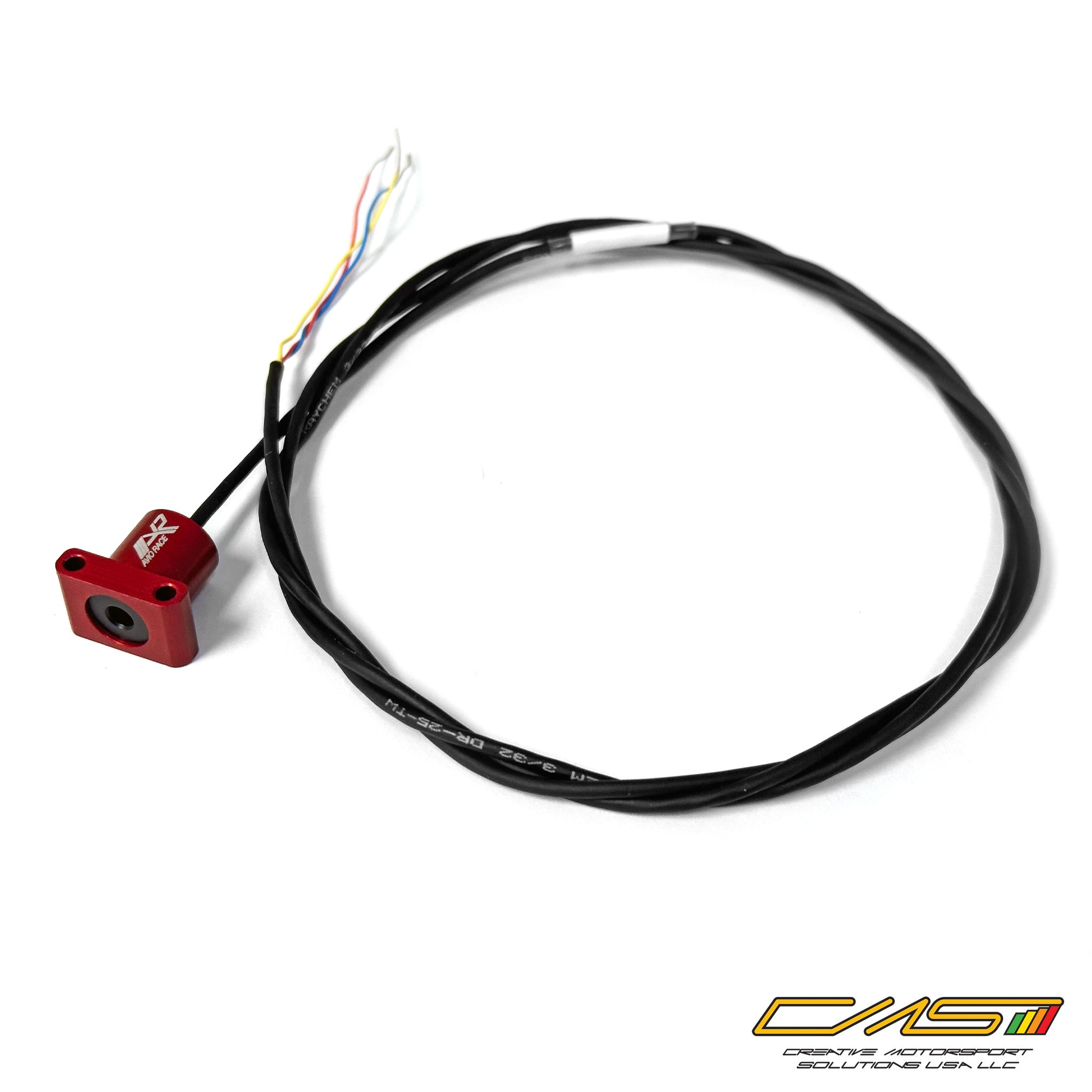

IR Temperature Sensor Multispot - 200°C CAN Output

Designed and built by AvioRace, the IP64 rated miniaturized infrared temperature sensor was designed to measure temperature, contact free, at a distance (20-400mm) contact free tire temperature measurement. The fully sealed, red anodized high grade aluminum body contains 64 points (4 rows x 16 columns) where the IR temp sensor detects thermal radiations and then transmits the data via CAN bus.

The sensor is available in three versions with three different fields
of view: 40°, 60°, 120°.

These are a high performance, cost effective solution to monitor tyre temperatures for all motorsport and racing applications. Preventing the need for multiple analog sensors, this compact unit works very well where space is limited.

Click HERE to view the data sheet for technical specs and information.
