IMSA WeatherTech Fuel Flow Team CAN Interface

For IMSA Weather Tech participants only. This loom allows teams to connect to the sensor and log/view the CAN data in real time.

Teams will need to contact Sentronics to have the team port enabled on their sensor, CAN data does not get transmitted without the software update.

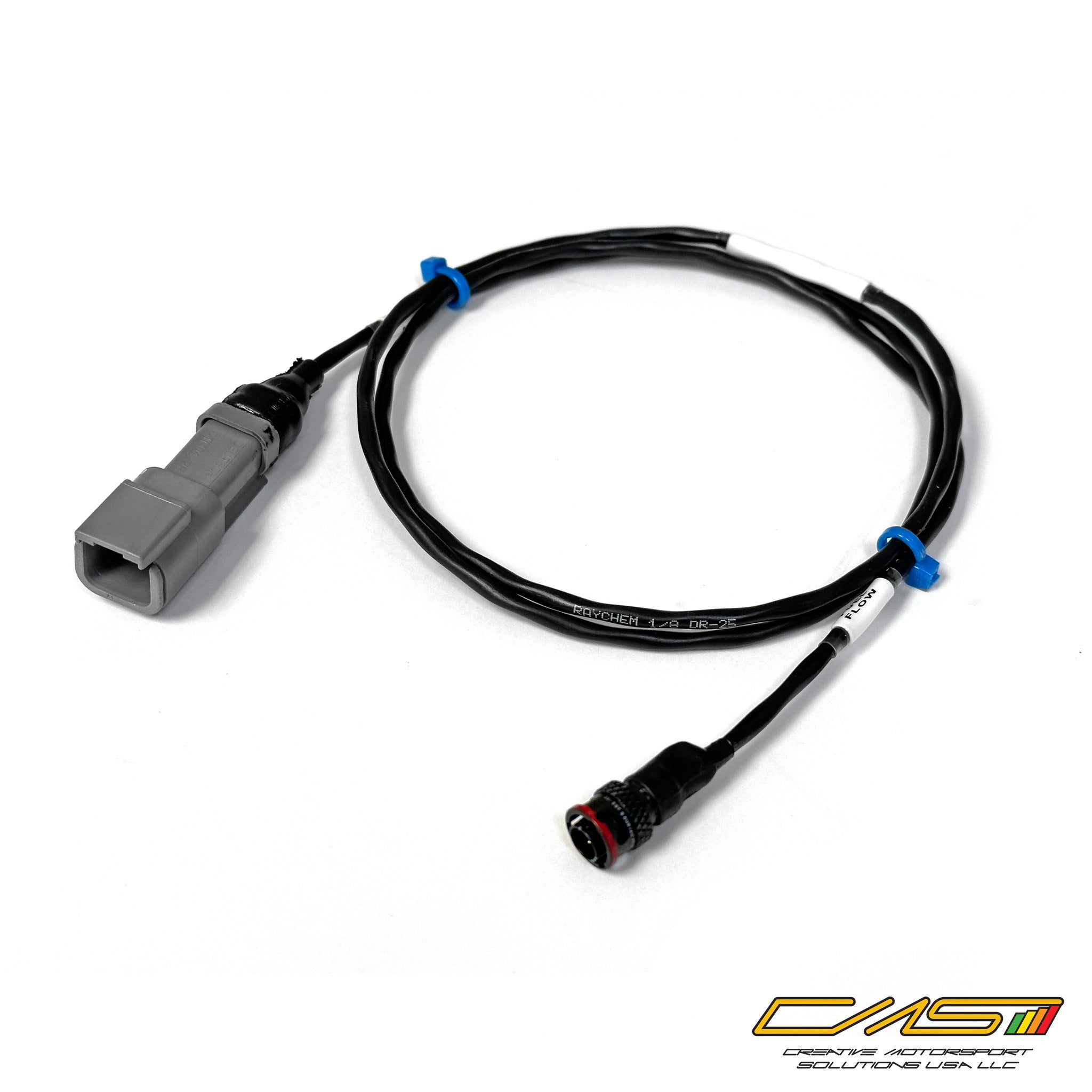

Loom has  1x 120 ohm Terminating resistor installed. Teams connect to this harness using a DTM06-2S connector:
Pin 1-CAN Low
Pin 2-CAN Hi
