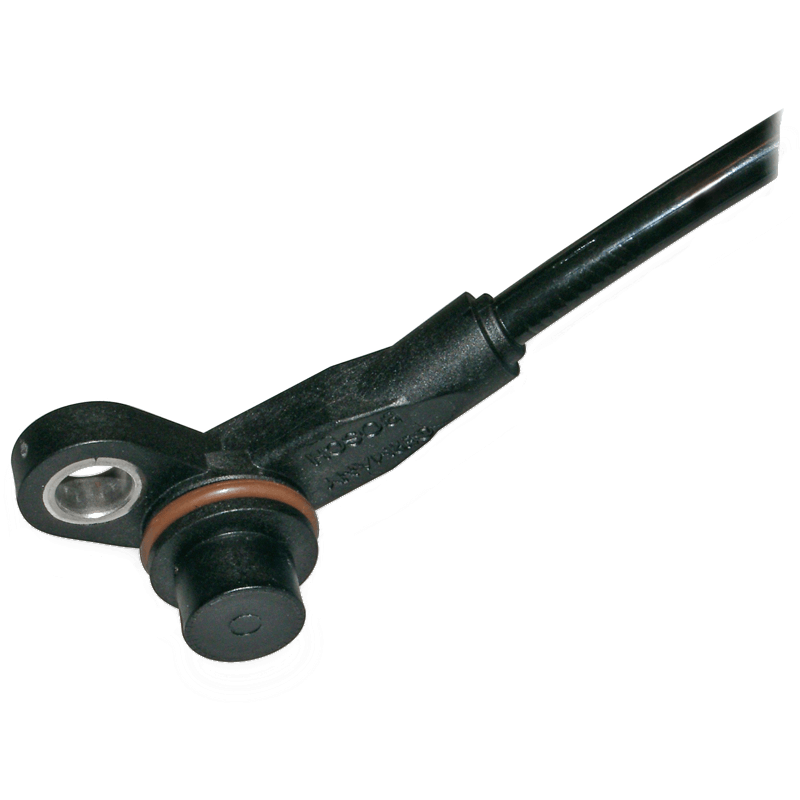

Hall-Effect Speed Sensor Mini-HA-P Sealed

  • • Camshaft/crankshaft/wheel speed

    • Max. frequency ≤10 kHz

    • High vibration resistance

    • Very small housing

    • O-ring sealing

    This sensor is designed for incremental measurement of rotational speed (e.g. camshaft, crankshaft and wheelspeed).

    Due to the rotation of a ferromagnetic target wheel in front of the Mini-HA-P sealed, the magnetic field is modulated at the place of the Hall probe. A Hall-effect sensor element with integrated signal conditioning circuit detects this change and generates a digital output signal.

    The main feature and benefit of this sensor is the combination of a high quality production part and a robust design with a very small housing.

    Please Contact Us for further information.

  • Documents

    Title Type
    🗎 Datasheet PDF
    🗎 CAD Drawing DXF (with connector) PDF
    🗎 CAD Drawing DXF (without connector) PDF
    🗎 3D Data PDF
    🗎 Special (Basic Information) PDF
