Bosch Motorsport

B261.209.283-01

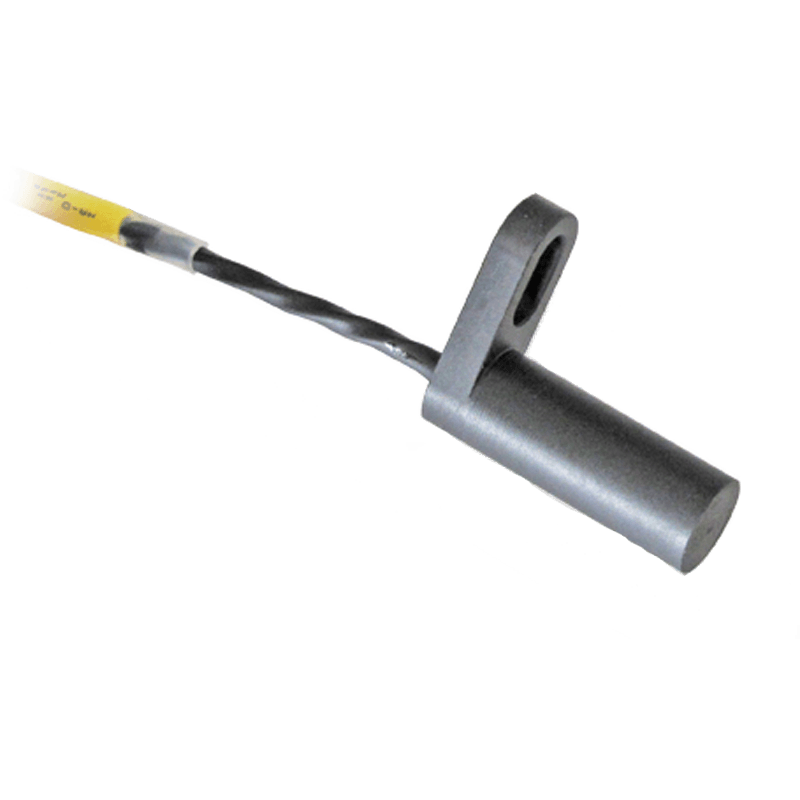

Hall-Effect Speed Sensor HA-M

  • • Camshaft/crankshaft/wheel speed

    • Max. frequency 10 kHz

    • Self-learning

    • Active high/low programmable

    This sensor is designed for incremental measurement of rotational speed (e.g. camshaft, crankshaft or wheel speed).

    Due to the rotation of a ferromagnetic target wheel in front of the HA-M, the magnetic field is modulated at the place of the Hall probe. A Hall-effect sensor element with integrated signal conditioning circuit detects this change and generates a digital output signal. We offer this sensor with two different types of output: Active high and Active low.

    The main feature and benefit of this sensor is the combination of a high quality production part and robust design with metal housing and motorsport connectors.

    Please Contact Us for further information.



  • Documents

    Title Type
    🗎 Datasheet PDF
    🗎 CAD Drawing DXF PDF
    🗎 3D Data ZIP
    🗎 Special (Basic Information) PDF
