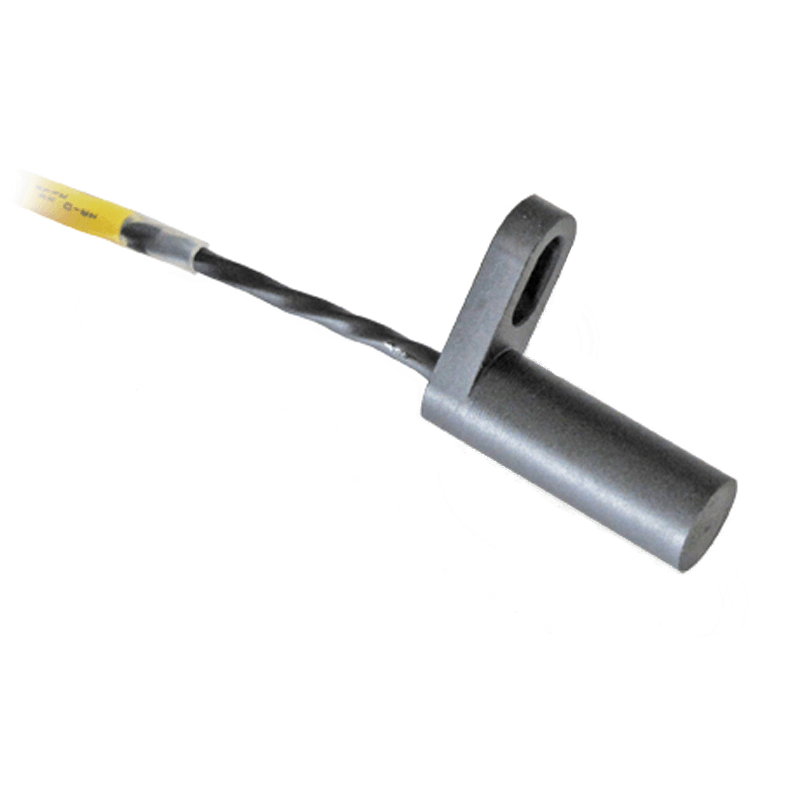

Hall-Effect Speed Sensor HA-D 90

  • • Camshaft/crankshaft/wheel speed

    • Also available with 0°, 180° and 270° mounting position

    • Very high precision measurement

    • Self-learning

    • Measuring of differences with 2 Hall sensors

    This sensor is designed for incremental measurement of rotational speed (e.g. camshaft*, crankshaft or wheel speed), but it is not a “true power-on” sensor.

    Due to the rotation of a ferromagnetic target wheel in front of the HA-D 90, the magnetic field is modulated at the place of the Hall probe.

    The main feature and benefit of this sensor is a very good detection of the falling edge, due to a differential measuring method. This sensor is a combination of a high quality production part and robust design with a small housing.

    *: see Installation Notes

  • Documents

    Title Type
    🗎 Datasheet PDF
    🗎 CAD Drawing DXF PDF
    🗎 3D Data ZIP
    🗎 Special (Basic Information) ZIP
