M GPS-L5

GPS-L5

  • Specifications

    Performance

    • 5 Hz update rate

    • 66 satellite channels

    • Dynamics 4 G

    • Power supply voltage 4.0 - 6.0 V

    Communications

    • RS232

    • 19200 Baud rate

    Compatible with

    • MoTeC C125, C185

    • MoTeC 'Hundred Series' ECUs - M400, M600, M800, M880 (v3.51U2 and up)

    • MoTeC M84 ECU (v1.10K2 and up)

    • MoTeC ACL

    • MoTeC ADL3, ADL2 (not compatible with original ADLs)

    • MoTeC SDL3, SDL

    Physical

    • Case size 48 x 41 x 14 mm

    • Weight 106 gram

    • 1 x 4 pin Deutsch DTM, 3 m flying lead

    • Built-in antenna

    • Magnetic base mouting

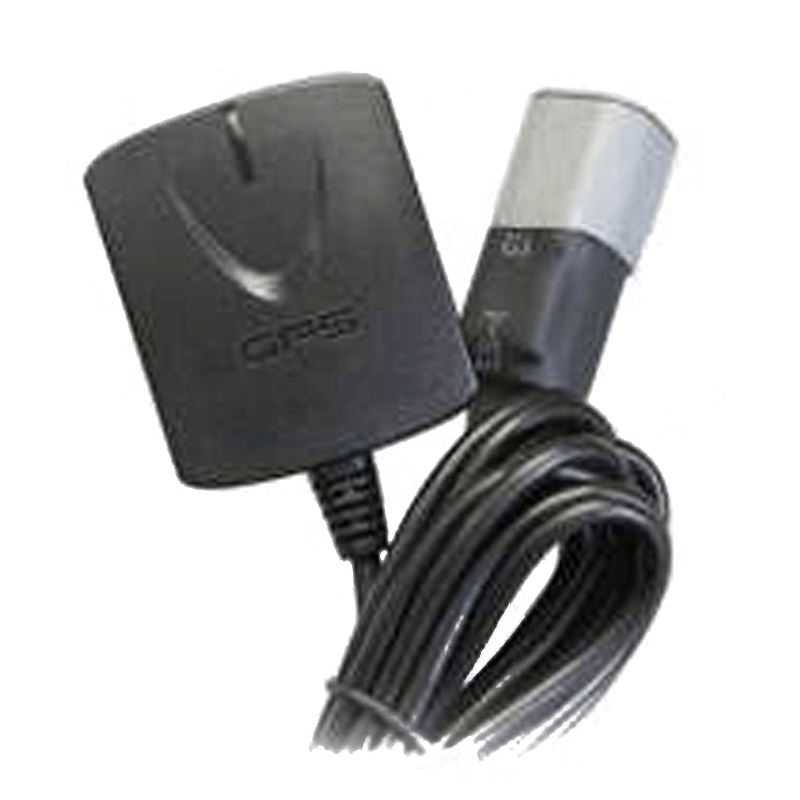

    The GPS-L5 is a 5 Hz GPS which combines the electronics and antenna into one small unit. A highly sensitive receiver allows the GPS to lock onto signals even in difficult environments. It is fitted with a DTM connector and is pre-configured to be compatible with MoTeC 'Hundred Series' and M84 ECUs.

    This unit is suitable for speed, position and lap timing.

    Please Contact Us for further information.
