M ADL BTX
• Coded infra-red beam
Range up to 40 meters (130 ft) when used with BR2
• 3 color LED status indicator for:
Fault or very low battery
• External via a 12 V rechargeble battery (10Ahr capacity recommended)
• Power consumption 70 mA typical
• Case size 90 x 80 x 115 mm
• Weight 260 grams

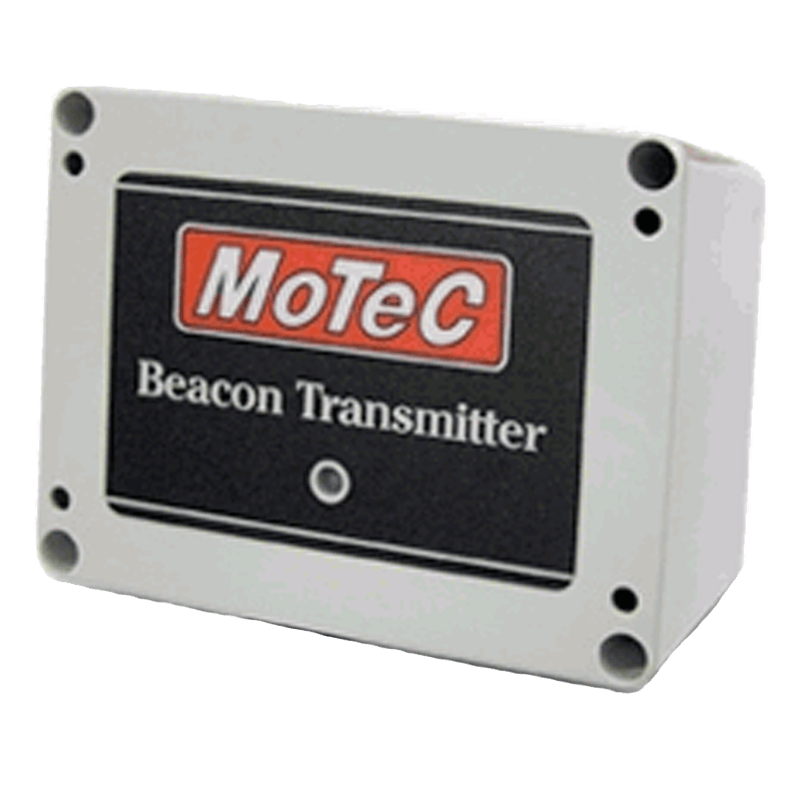

The Beacon Transmitter (BTX) is the track side mounted part of the lap timing system.
Mounting the BTX
The narrow infrared beam emitted by the BTX should be aimed parallel to the road and at the same height above the road as the receiver in the vehicle. The transmitter mounting system should therefore be capable of height and tilt adjustment.
The spacing between adjacent transmitters must be a least 6 meters.
Please Contact Us for further information.
