Bosch Motorsport

F02U.V01.884-01

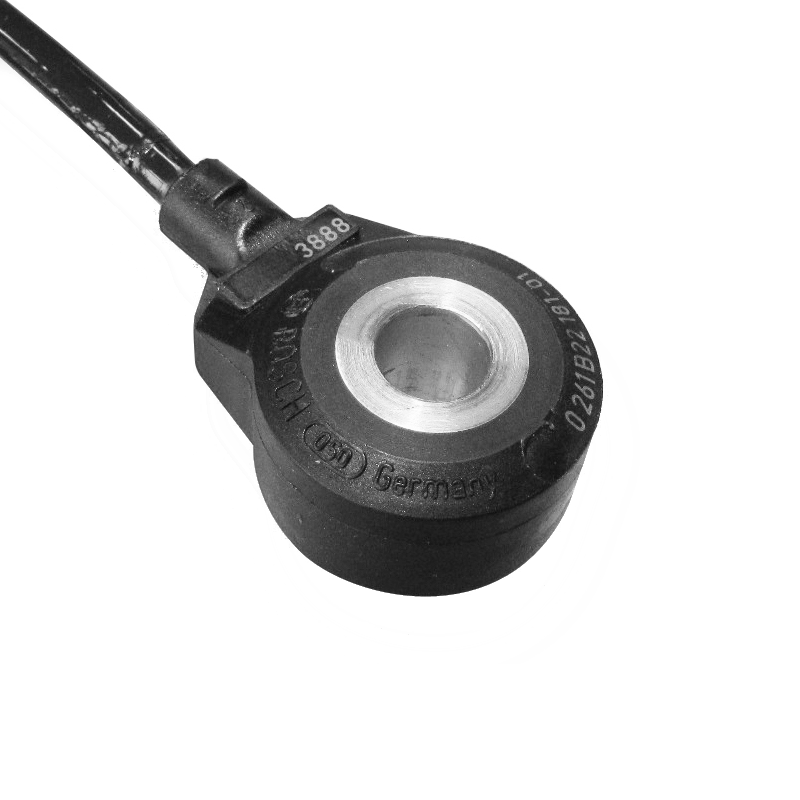

Knock Sensor KS4-R2

  • • Engine vibration measurements

    • Measurement range 3 to 25 kHz

    • Robust design

    • Compact housing

    This sensor is used for detecting structural born vibrations in spark ignition engines due to uncontrolled combustion. This sensor is suitable for operation in extreme conditions.

    Due to the inertia of the seismic mass, the sensor moves in correlation to the engine block vibration; this motion results in a compressive force which is converted into a voltage signal via a piezoceramic sensor element. As a result, upper and lower voltage thresholds can be defined directly correlating to an acceleration magnitude.

    The main benefits of this sensor are its robust mechanical design, compact housing and precise determination of structure-related noise. This version is an optimized part for Motorsport applications based on a series application development. Compared to the previous version, the advantage of this new modification is that this product has an extended frequency and higher operating temperature rating.

    Please Contact Us for further information.

  • Documents

    Title Type
    🗎 Datasheet PDF
