Bosch Motorsport

B261.209.341-01

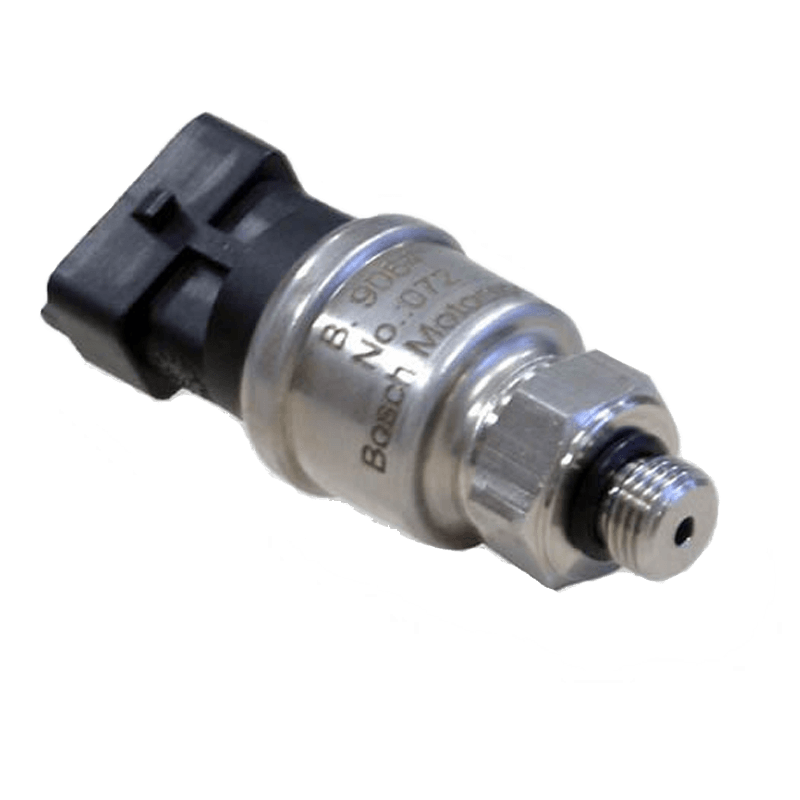

Fluid Pressure Sensor PSS-10

  • • Absolute fluid or air pressure measurement

    • Measurement range 3.5 to 700 bar

    • High robustness against vibrations

    • Compact design

    • Analog output

    This sensor is designed to measure absolute pressure of various kinds of media e.g. Diesel, gasoline, water, engine oil, transmission oil or air.

    The sensor utilizes a flush metal diaphragm as a force collector. The force is transferred to a solid state piezo-resistive sensing element via a thin intervening film of noncompressible silicone oil. The housing is welded hermetically. An individual calibration sheet will be delivered with each sensor.

    Please Contact Us for further information.

  • Documents

    Title Type
    🗎 Datasheet PDF
    🗎 CAD Drawing DXF PDF
    🗎 Configuration Note ZIP
    🗎 3D Data ZIP
