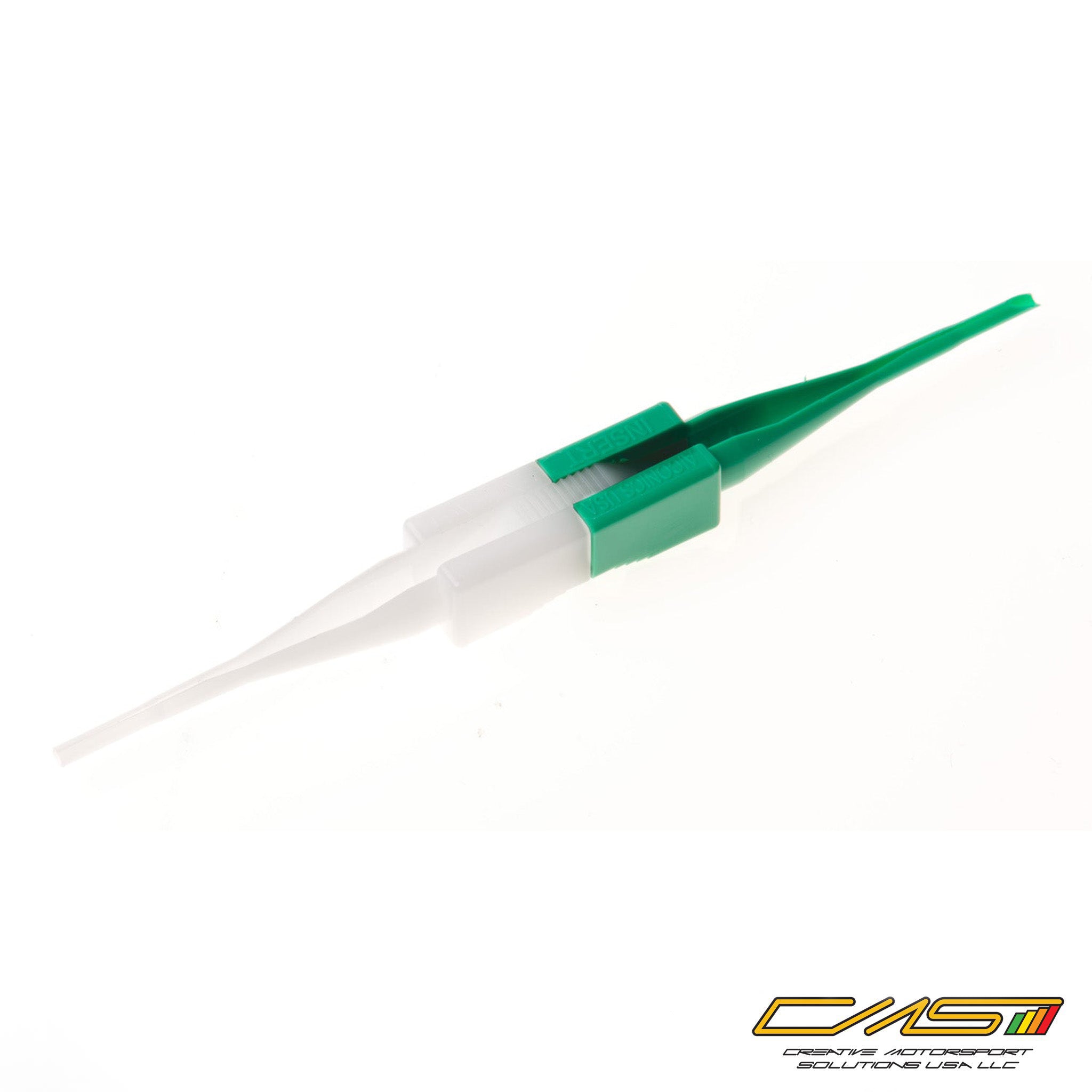

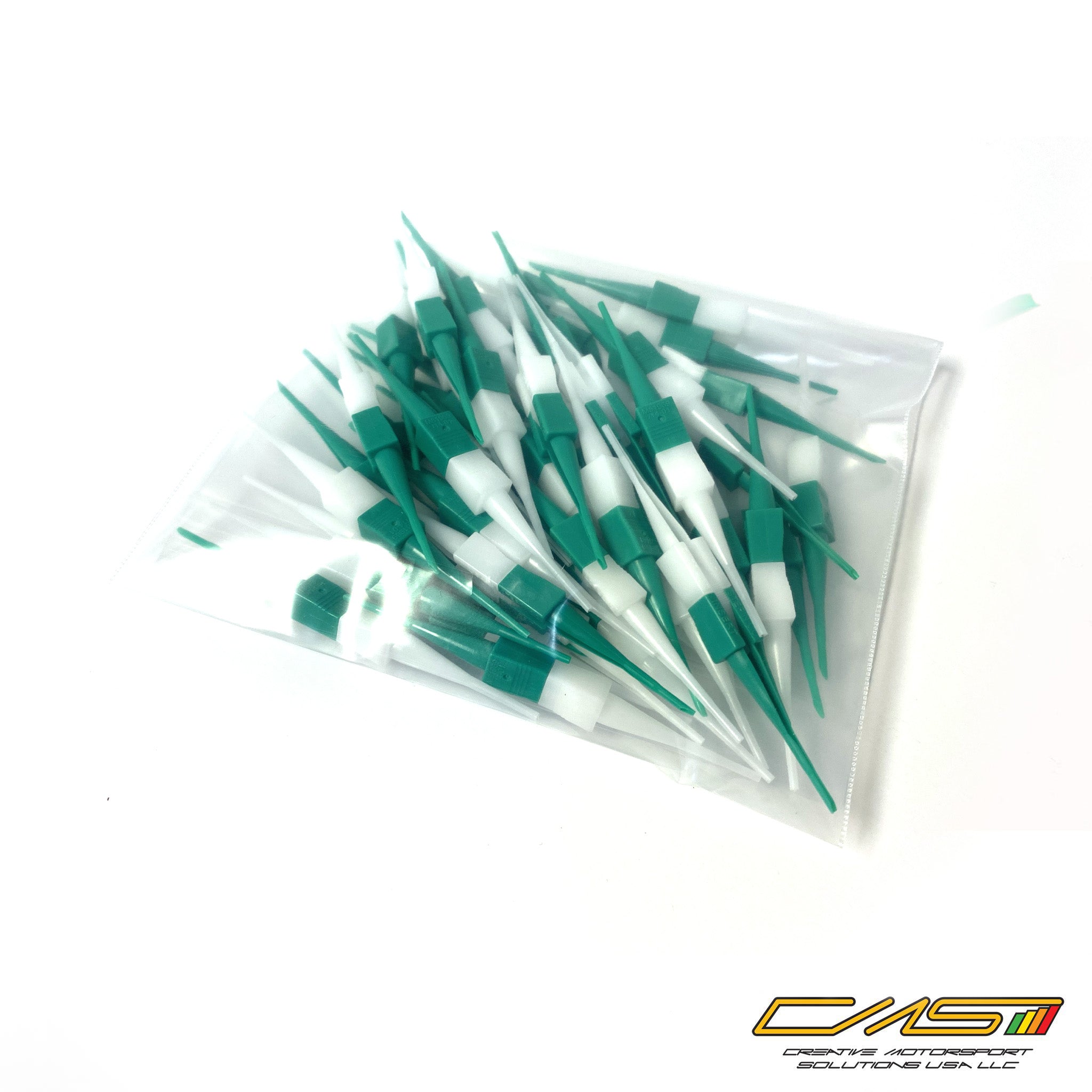

Autosport Extraction Tool (Size 22, 23 Contacts) White / Green

Installs and Removes Size 22D/M Pins (M39029/58-360) and Socket (M39029/56-348) Contacts For TE Connectivity (Deutsch Autosport) Autosport Connectors AS MICROLite HE ASL Pin Connector and Socket Connector Series and as well as the AS Series Connectors commonly used in the motorsport racing industry.

Additionally, these mil-spec insert extraction tools work on the following connectors:
Connector Series: MIL-C-26482, MIL-C-81703, MIL-C-83723, MIL-C-38999, MIL-T-81714.

The M81969/14-01 Insertion/Removal tool is used on size 22D contacts in the following connector series:

  • Mil-C-5015
  • Series 3450 Mil-C-26482
  • Series 2 Mil-C-38999
  • Series 1, 2, 3 & 4 Mil-C-81703
  • Series 3 Mil-T-81714 Mil-C-83723
  • Series 2 & 3 Mil-C-83733
