IR Temperature Sensor - 1,000°C Analog Output

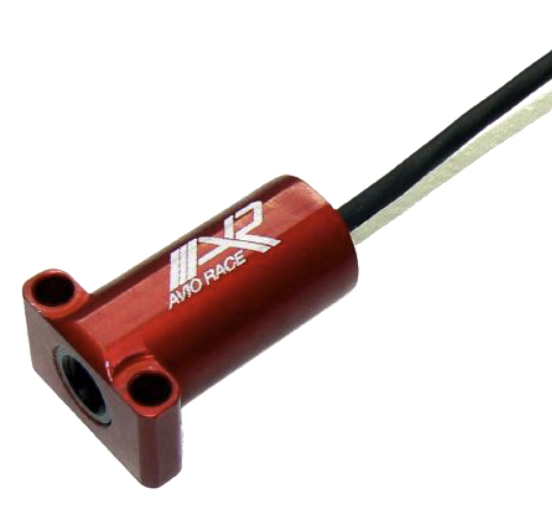

Designed and built by AvioRace, the IP64 rated miniaturized infrared temperature sensor was specifically designed for contact free brake disc temperature measurement. With a fully sealed, red anodized aluminum body, the sensor contains three highly accurate elements built in to actively compensate the output signals, which are proportional to detected temperature.

These are a high performance, cost effective solution to monitor brake temperatures for all motorsport and racing applications.

o Supply voltage: 7-24 Vdc;
o Output voltage: 0-5 Vdc;
o Current consumption: 23mA
o Measurement distance: 30-100mm
o Protection: IP64
o Weight: ≈14g

Click HERE to view the data sheet for technical specs and information.
