Wiper Direct Actuator WDD2 - Short or Long Shaft
SKU:
F02U.V03.658-01
- $1,437.00
- $1,437.00
- Unit price
- per
Orders shipped via UPS (FedEx Optional)
In stock items shipped within 1-3 business days.
Pre-order items must first be sent from our distributor to our office. Once received it will then ship to you. There may be some delay due to manufacturer availability. Please reach out with any lead time requirements.

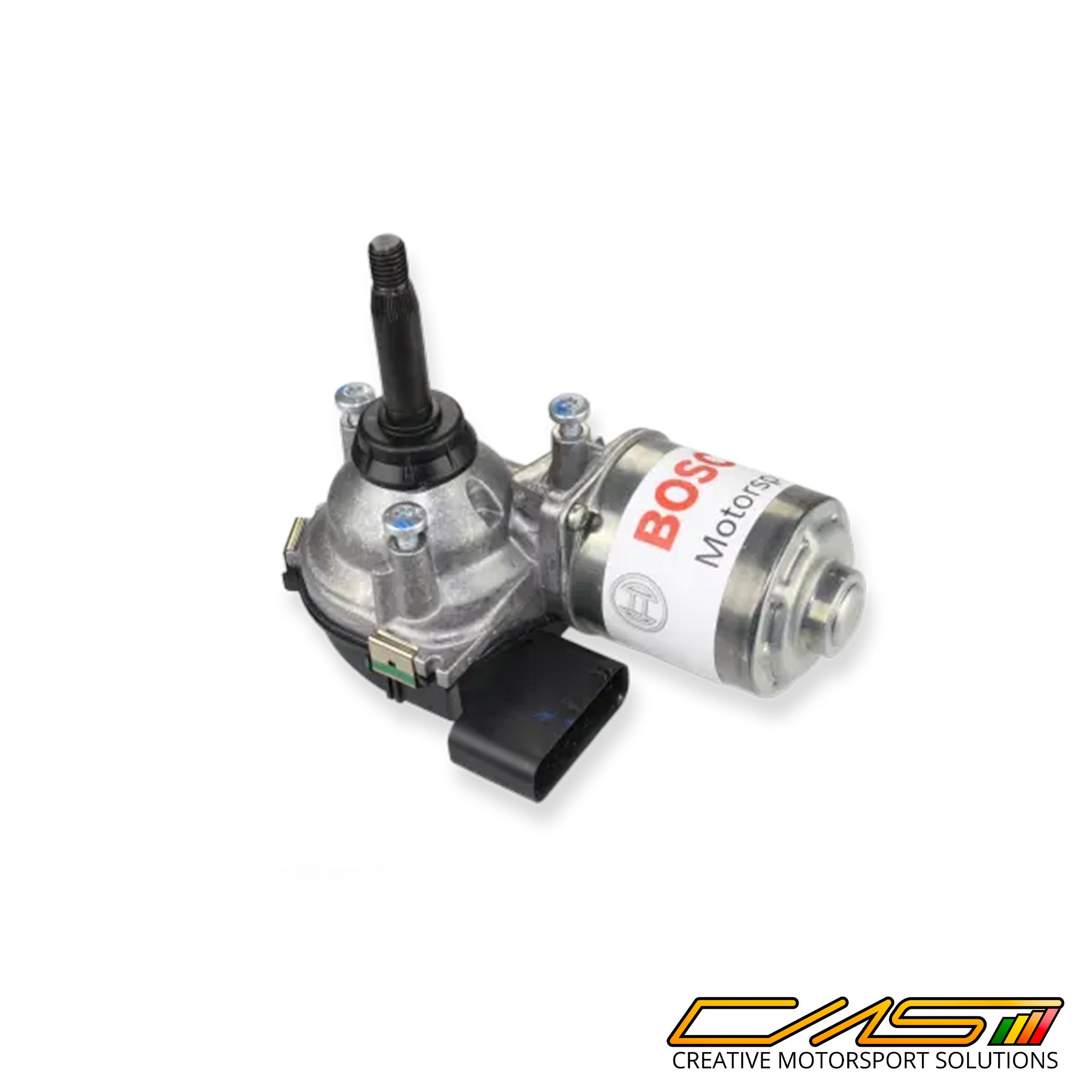

The new 2026 Wiper Direct Drive WDD2 Motorsport Wiper Motor is an advanced CAN and LIN controlled wiper solution engineered specifically for modern race cars and high-performance motorsport applications. Unlike conventional wiper motors that rotate continuously through a 360° gear-driven system, the WDD2 uses a direct reversing movement with fully integrated control electronics, motor, and gear assembly housed in a compact single-unit design. This eliminates the need for external gears while delivering smoother operation, reduced mechanical complexity, lower weight, and increased reliability in harsh racing environments.
The WDD2 is available with either an 85mm short shaft or 105mm long shaft option, with the 105mm version serving as a direct replacement for the original WDD2 motor.
Designed for professional motorsport teams and custom race car builders, the WDD2 allows programmable operating speeds, adjustable sweep angles, and configurable end positions through simple CAN or LIN messaging. Its intelligent electronics automatically detect and store CAN bus speed during startup, simplifying integration into advanced vehicle electrical systems.
The WDD2 is compatible with upcoming Bosch Motorsport MS6 and MS7 Base-SW releases and supported with PBX90_BASE_0262, PBX190_BASE_0262, PBX90SL_0112, and PBX190SL_0112 software versions.
Trusted across multiple forms of professional racing, the WDD2 has become a popular choice in NASCAR, Trans Am, endurance racing, GT platforms, and custom motorsport builds where durability, precision control, and packaging efficiency are critical. Whether upgrading an existing motorsport wiper system or designing a new race car electrical architecture, the WDD2 delivers a lightweight, programmable, motorsport-grade solution built for demanding track conditions.
