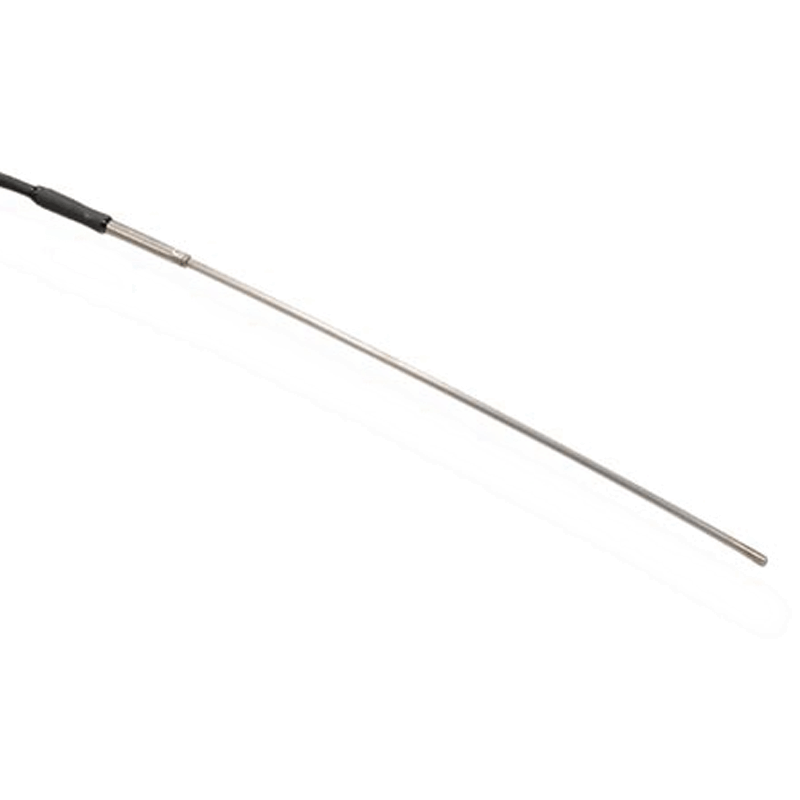

Thermocouple Probe TCP K

  • • Thermocouple Type K

    • Thermo material: NiCr-Ni

    • Measurement range: -200 to 1,000°C (1,300°C)

    • Flexible mounting depth

    • Analog output (Thermo voltage)

    This sensor is designed to measure exhaust gas temperatures up to 1,300°C.

    Thermocouples are temperature sensors that supply a temperature corresponding voltage without any additional external energy source.

    The thermocouple has a metal mantle that includes two isolated inner wires made of thermo material NiCr-Ni Type K.

    The benefits of this sensor are the combination of a high-quality production part, robust design with metal housing and motorsport connector and a very quick response time.

  • Documents

    Title Type
    🗎 Datasheet PDF
    🗎 CAD Drawing DXF PDF
    🗎 3D Data ZIP
