Gentex GNTX-R 2.0 Full Display Motorsport Rearview Camera
SKU:
GTX-GNTXR
- $2,395.00
- $2,395.00
- Unit price
- per
Orders shipped via UPS (FedEx Optional)
In stock items shipped within 1-3 business days.
Pre-order items must first be sent from our distributor to our office. Once received it will then ship to you. There may be some delay due to manufacturer availability. Please reach out with any lead time requirements.

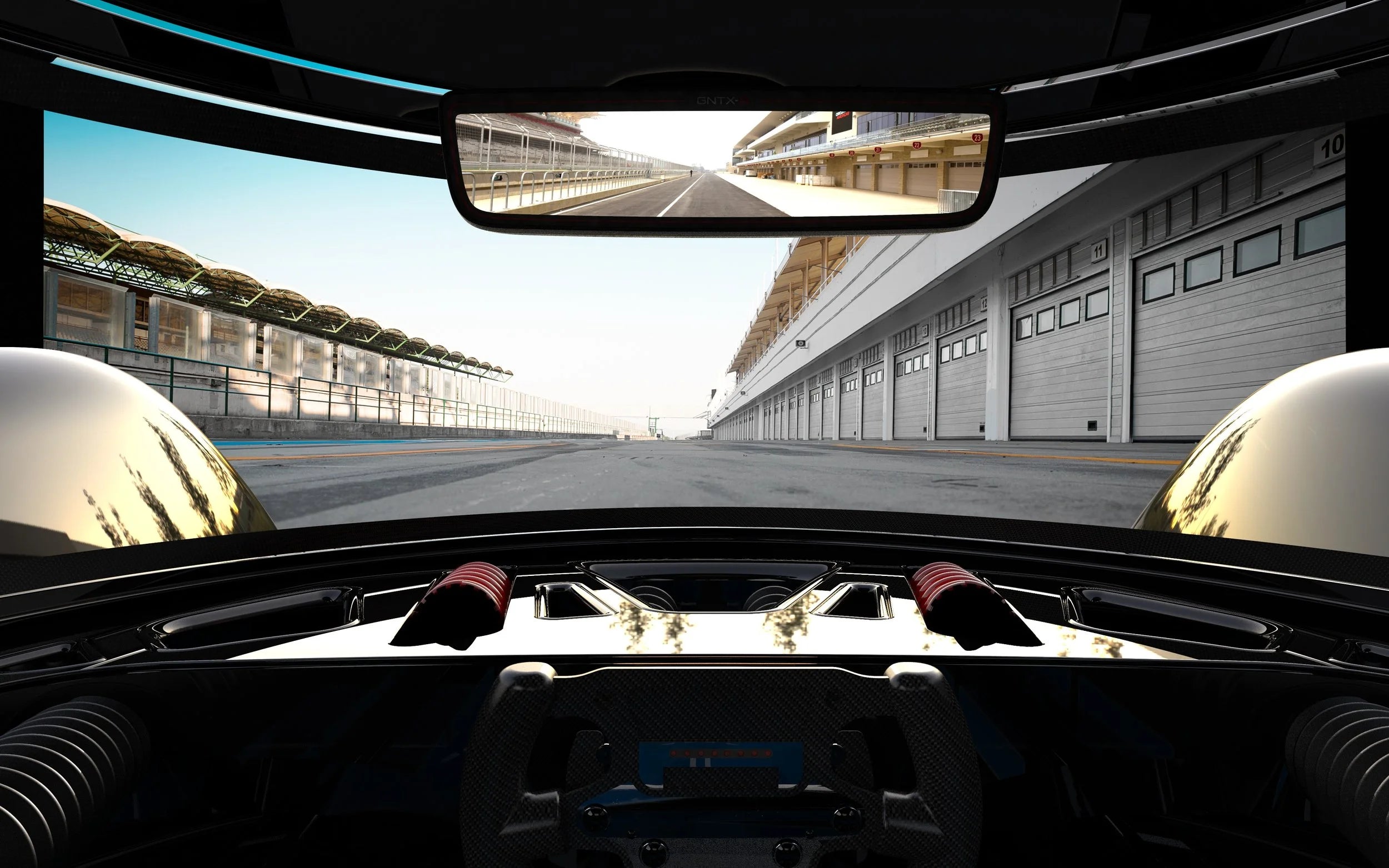

If you've ever driven a race car with a large rear wing, engine cover, window net, and HANS device, you know how quickly a traditional mirror becomes almost useless. The Gentex GNTX-R 2.0 Motorsport Rear Vision System has become the benchmark racing rear view camera, found throughout IMSA, SRO, Porsche Carrera Cup, Lamborghini Super Trofeo, and countless endurance racing programs, while also becoming a favorite upgrade for serious track day and HPDE drivers who demand professional-level equipment.
What sets Creative Motorsport Solutions apart is that we don't simply ship the system as it arrives from Gentex. We replace the factory plastic power connector on the mirror with a genuine Deutsch Autosport connector, sealed with Raychem DR-25 and a molded Raychem boot, then pair it with our custom-built 12-foot motorsport grade power/CAN harness. The result is a cleaner, more serviceable, and significantly more durable installation that's engineered to withstand the heat, vibration, moisture, and punishment of competitive racing.
Used By Championship-Winning Teams Across
- Prototype (LMP1, LMP2, DPi)
- GT & GT3 (GTLM, GTD, GT World Challenge)
- Touring & Stock Cars (NASCAR, Super GT)
- Rally (WRC)
- Club & Pro-Am (SCCA, endurance racing, time attack)
The GNTX-R 2.0 is engineered to meet the demands of long-format endurance racing, sprint competition, and mixed-class traffic environments.
Custom mounting solutions are in development and will be available soon.
Key Features
- High-definition 1600x320 LTPS-TTT-LCD display with anti-reflective (AR) coated glass
- Daytime and nighttime adjustable screen brightness
- Excellent high dynamic range — 120dB HDR / 60fps / 1.7MP resolution
- Best-in-class low-light performance
- Compact, rugged camera housing built to IP6K9K automotive standards
- CAN-BUS (1Mbps high-speed) enabled for additional adjustments
- Distortion-free image unaffected by bodywork shake, glare, or dirty glass
- Factory plastic power connector upgraded to a genuine Deutsch Autosport connector, sealed with Raychem DR-25 and a molded Raychem boot
- Custom-built 12' motorsport-grade Power/CAN harness engineered for heat, vibration, and moisture

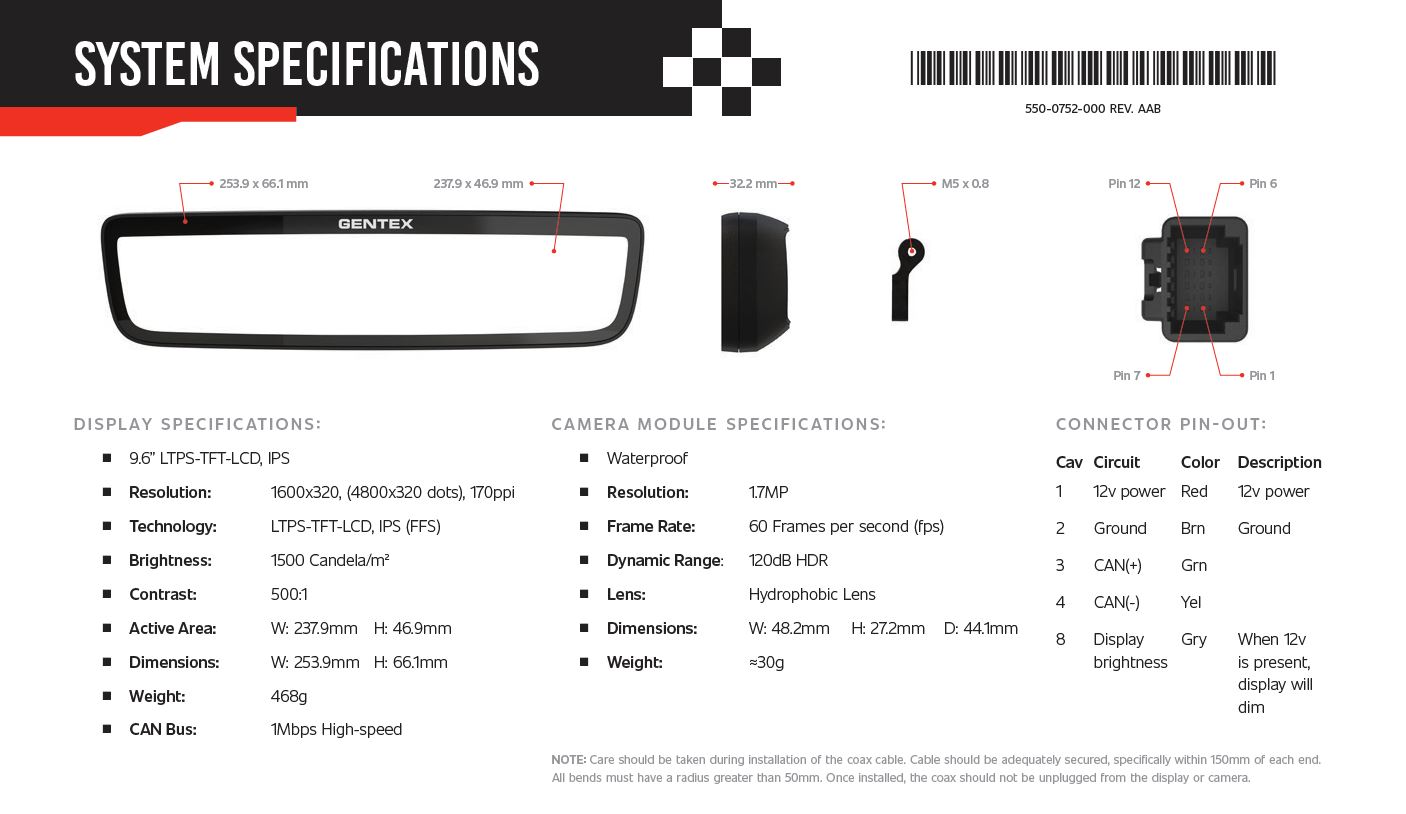

Mirror / Display Specifications
| Display | High-definition 1600x320 LTPS-TTT-LCD, anti-reflective (AR) coated glass |
| Display Brightness | 1500 Candela/m² | Contrast 500:1 |
| Brightness Adjustment | Daytime and nighttime adjustable |
| Mount | Integrated pivot mount |
| Construction | PC+ABS aluminum construction |
| Connectivity | CAN-BUS (1Mbps high speed) enabled for additional adjustments |
| Weight | Just over 16 oz / 458 g |
| Dimensions | W: 10 in (253.9 mm) | H: 2.6 in (66.1 mm) | D: 1.27 in (32.2 mm) |
Camera Specifications
| Dynamic Range | 120dB HDR / 60fps / 1.7MP resolution |
| Low-Light Performance | Best-in-class |
| Housing | Compact, rugged design for harsh environments |
| Environmental Rating | IP6K9K automotive standard |
| Weight | 1.1 oz / 30 g |
| Dimensions | W: 1.9 in (48.2 mm) | H: 1.07 in (27.2 mm) | D: 1.74 in (44.1 mm) |

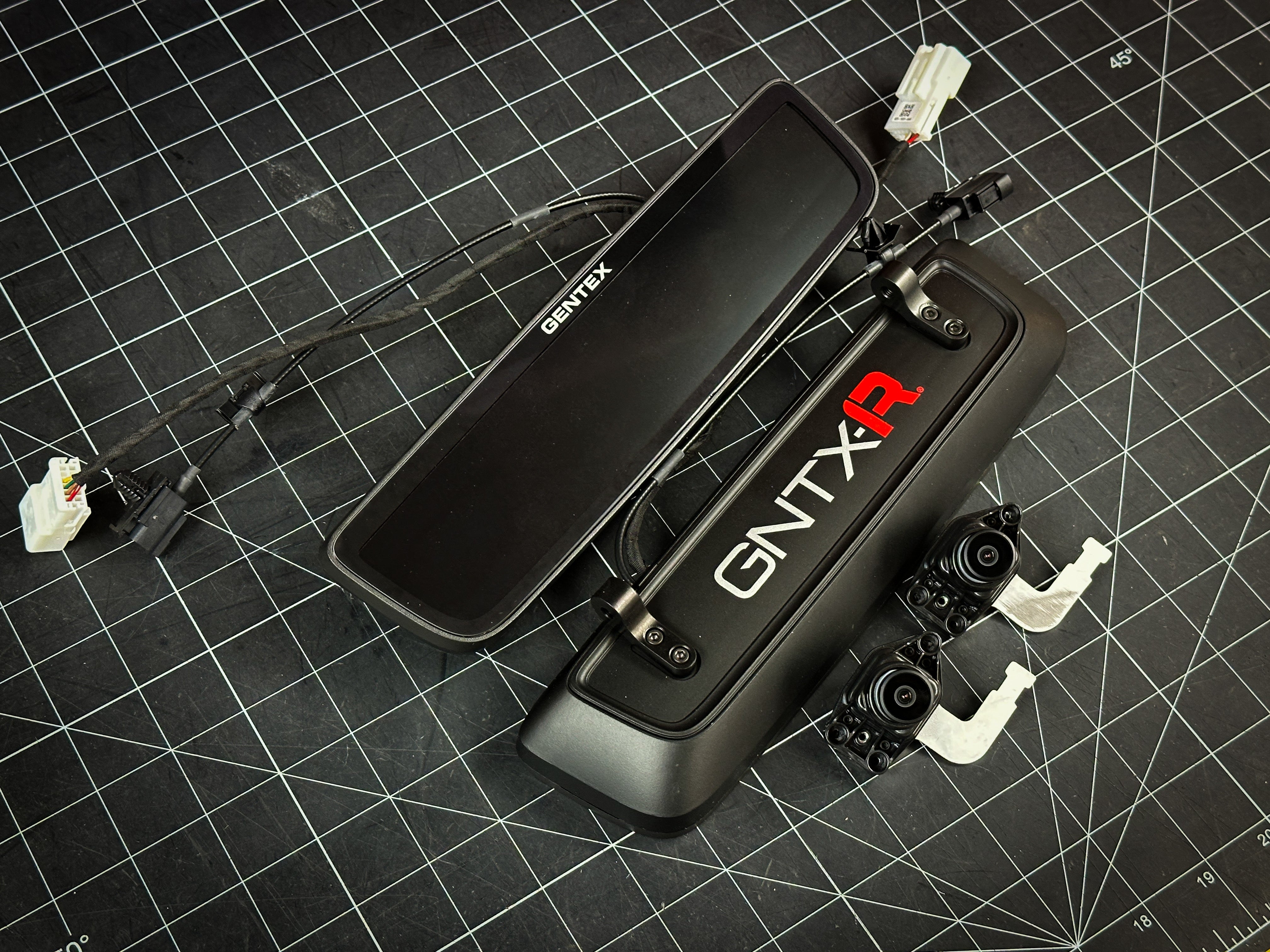

Included Wiring
- Custom 12' Power/CAN harness, terminated with a Deutsch Autosport connector
- Mirror wiring harness — 7' 8" (just over 2 m)
- Camera main coaxial cable — 9' 10" (3 m)
- Camera extension coaxial cable — approximately 16' 4" (5 m)
