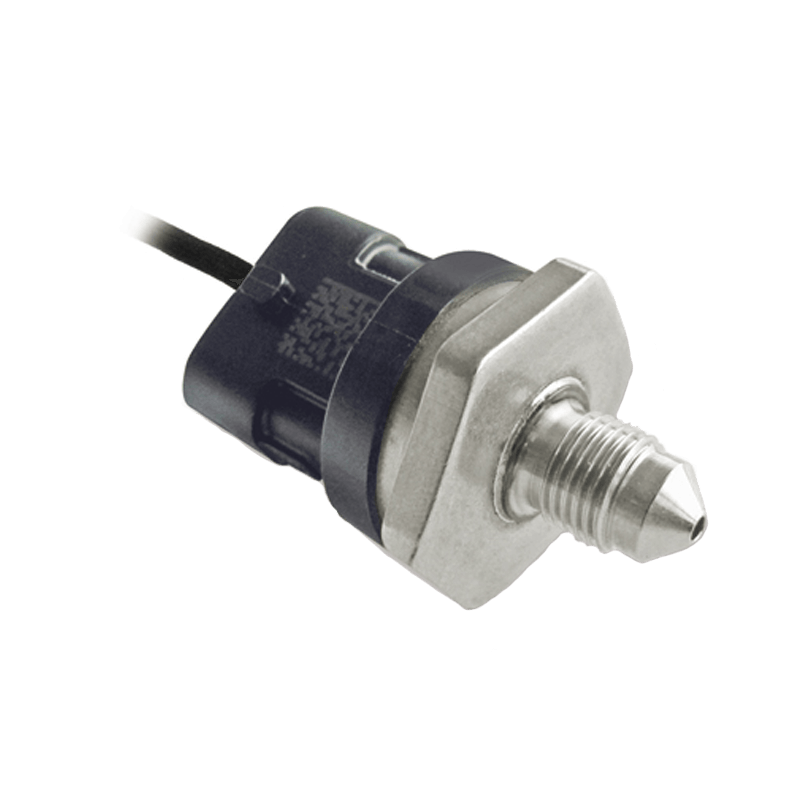

Fluid Pressure Sensor PSC-260

  • • Absolute fluid pressure measurement

    • Measurement range 0 to 260 bar

    • For gasoline, Diesel, oil or brake fluid

    • Robust and compact design

    • High robustness against vibrations

    The PSC-260 is specially designed to measure absolute pressure in gasoline direct injection applications.

    This sensor is also compatible with other kinds of fluids e.g. Diesel, engine oil, transmission oil or brake fluid. The sensor uses a thin layer technique to achieve high accuracy pressure measurements. The stainless steel measuring cells with piezoresistive bridges are hermetically welded with stainless steel pressure ports. The internal reference ensures ambient pressure independent measurements.

    The main benefits of this sensor are its high accuracy, it's wide measurement range and its robust and compact design.

    Please Contact Us for further information.

  • Documents

    Title Type
    🗎 Datasheet PDF
    🗎 CAD Drawing DXF PDF
    🗎 3D Data ZIP
