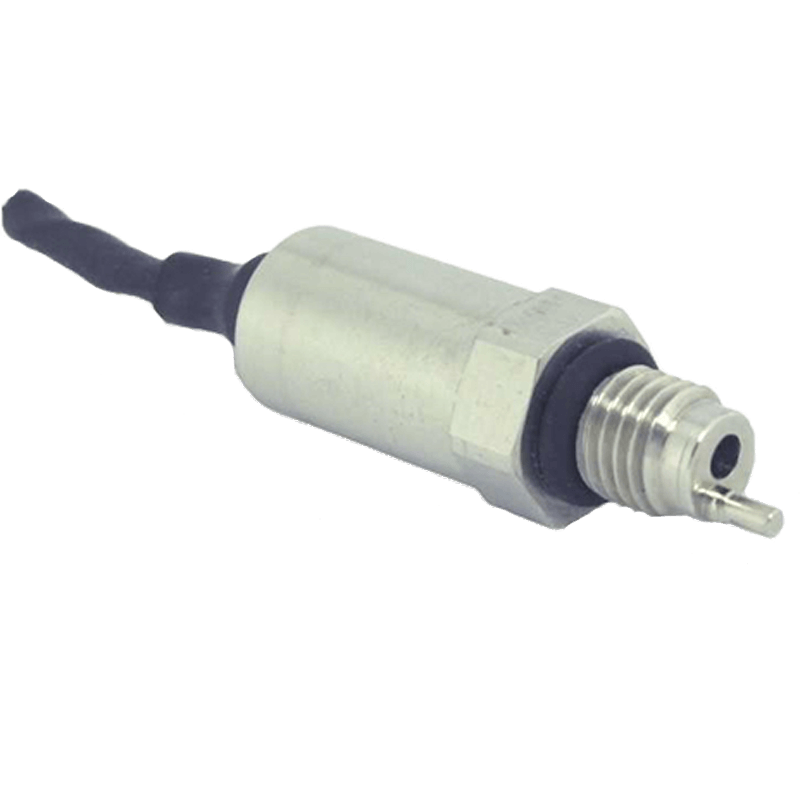

Combined Pressure Sensor PSM-SAT

  • • Absolute fluid or air pressure plus temperature measurement

    • Measurement range versions 3.5 to 700 bar

    • Temperature measurement: PT1000

    • High robustness against vibrations

    • Analog output

    This sensor is designed to measure absolute pressure of various kinds of media e.g. Diesel, gasoline, water, engine oil, transmission oil or air plus temperature.

    The sensor utilizes a flush metal diaphragm as a force collector. The force is transferred to a solid state piezo-resistive sensing element via a thin intervening film of noncompressible silicone oil. The housing is welded hermetically. An individual calibration sheet will be delivered with each sensor.

    The main feature and benefit of this sensor is a good protection against vibrations.

    Please Contact Us for further information.

  • Documents

    Title Type
    🗎 Datasheet PDF
