Lambda Sensor LSU ADV/ADV Pre-Turbo
Bosch Motorsport

Lambda Sensor LSU ADV/ADV Pre-Turbo

SKU: 0258.027.010
$270.00
$270.00
Subtotal: $270.00

Orders shipped via UPS (FedEx Optional)

In stock items shipped within 1-3 business days.

Pre-order items must first be sent from our distributor to our office. Once received it will then ship to you.
Lambda Sensor LSU ADV/ADV Pre-Turbo

Bosch Motorsport

Lambda Sensor LSU ADV/ADV Pre-Turbo

$270.00
Lambda Sensor LSU ADV/ADV Pre-Turbo

Bosch Motorsport

Lambda Sensor LSU ADV/ADV Pre-Turbo

$270.00
Product Description

  • • Application: lambda 0.65 to ∞

    • Wide-band

    • Exhaust gas temperature range (max.) for short time ≤ 1,030°C

    • Max. Hexagon temperature 700°C for a short time

    • Without trim resistance in the connector

    This O2 sensor is designed to measure the proportion of oxygen in exhaust gases in either gasoline or diesel automotive engines.

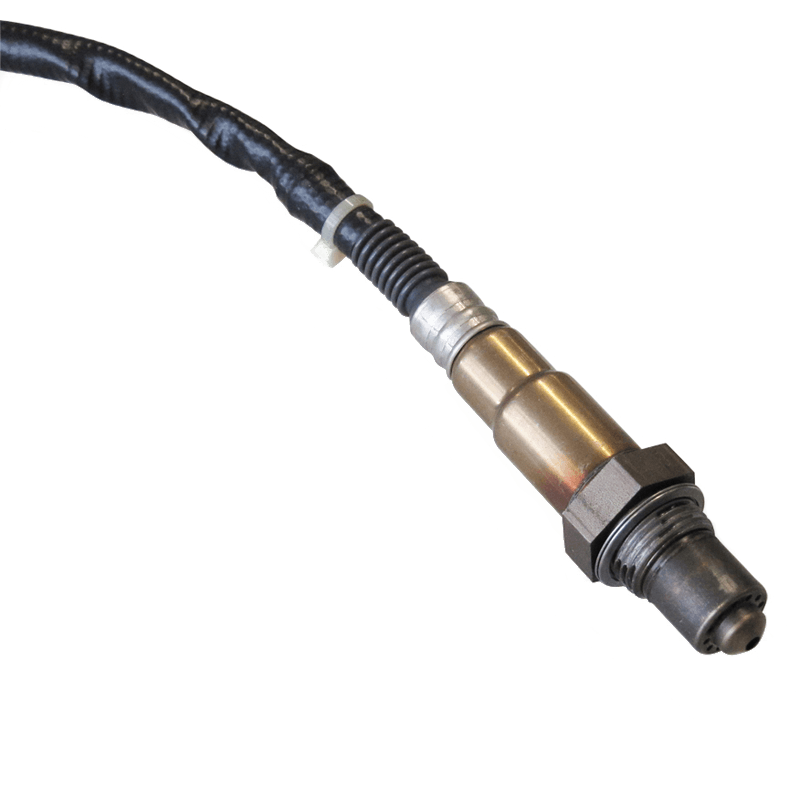

    This Bosch Lambda Sensor LSU ADV/ADV Pre-Turbo (0258 027 010) is a planar ZrO2 dual cell limiting current sensor with an integrated heater. Its monotonic output signal in the range of lambda 0.65 to air makes the LSU ADV capable of being used as a universal sensor for lambda 1 measurement as well as for other lambda ranges.

    As opposed to the LSU 4.9, the LSU ADV has a wider working temperature range for only a small increase in price.

    The LSU ADV has no trimming resistor inside the connector what results in just 5 connector pins. Compared to LSU 4.9, the LSU ADV has a wider working temperature range.

  • LSU ADV operates only in combination with a special evaluation unit used in lambda control unit LT4 ADV.

    Please Contact Us for further information.

  • Documents

    Title Type
    🗎 Datasheet PDF
    🗎 Special (Basic Information) PDF
