IMU Sensor MM5.10

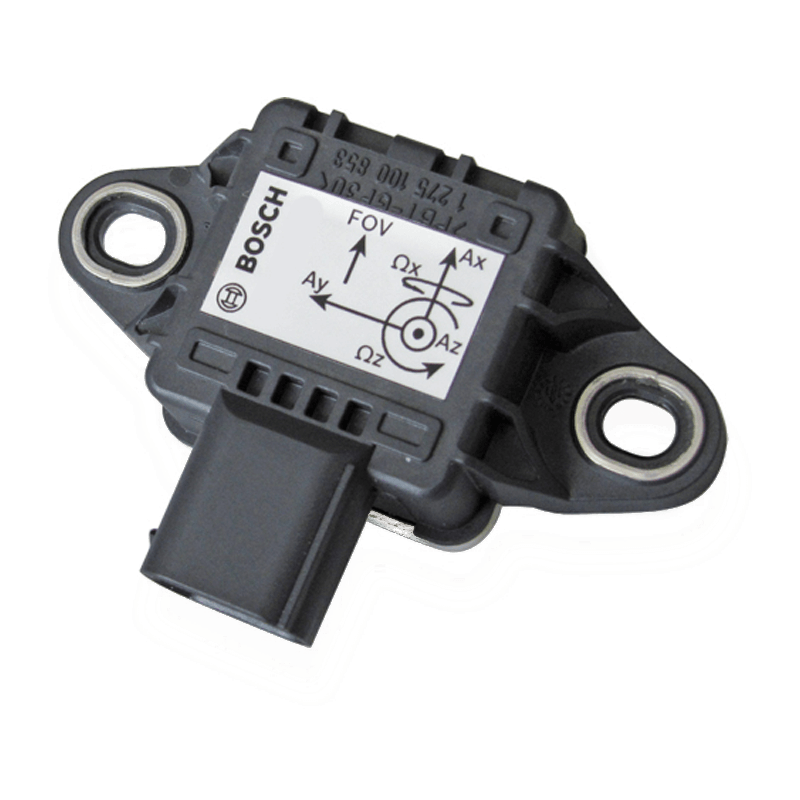

  • The MM5.10 IMU Sensor from Bosch Motorsport is a combination of 3 linear and 2 rotational accelerometers that was designed to precisely measure the physical effects of rotational and linear acceleration and providing the vehicle dynamics data at a high speed 1 Mbaud/s CAN signal output.

    In order to achieve this, the Bosch IMU MM5.10 sensor includes MEMS (micro-electromechanical) measuring elements which are connected to an appropriate integrated circuit.

    A rotational acceleration around the integrated sensing elements generates a Coriolis force which changes the internal capacity of the micromachined sensing parts. Furthermore, a pure surface micromachined element is used to measure the vehicle linear acceleration in all 3-axis.

    Please note: If you're ordering the Motorsport Connector or Flying lead version please provide lead length (15-95cm) in the order notes section at time of order.

    For the non-terminated version, the mating connector kit can be found here:
    MM5.10 Connector Kit

    Please Contact Us for further information.

    • 2-axis rotation rate (yaw rate, roll rate)

    • 3-axis accelerometer (X, Y, Z)

    • 1 MBaud or 500 kBaud CAN-output

    • 15 Hz low-pass filtered

    • Measurement ranges: ±4.2 g; ±163°/s

  • Documents

    Title Type
    🗎 Datasheet PDF
    🗎 3D Data (MM5_10) ZIP
    🗎 CAD Drawing DXF (511-02) PDF
    🗎 CAD Drawing DXF (511-92) PDF
    🗎 CAD Drawing DXF (512-03) PDF
    🗎 Special (Calibration Sheet) PDF
